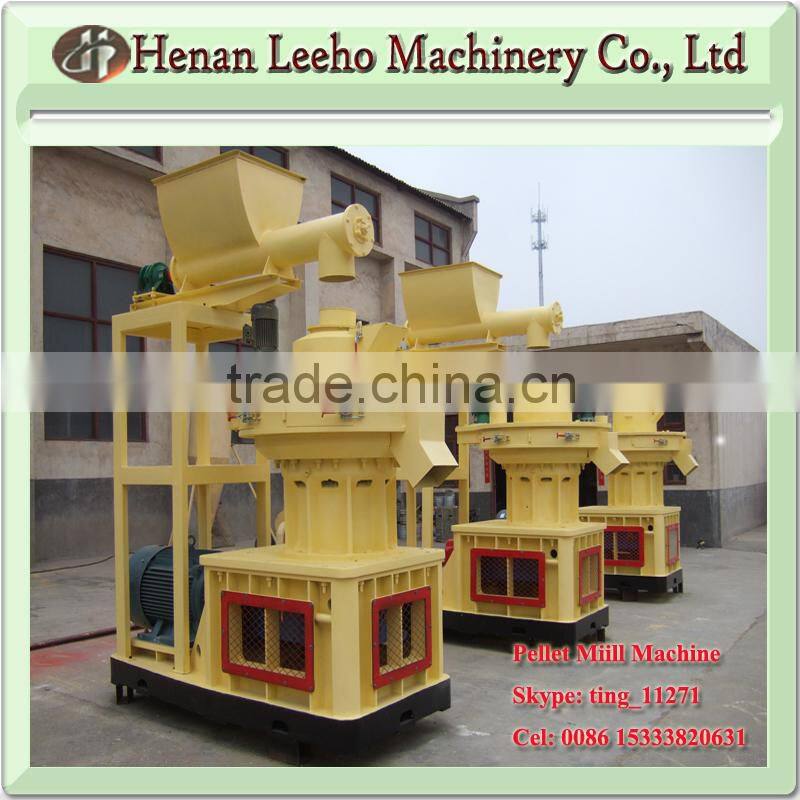

Help CenterPellet Press Project With 0.8-6t/h Biomass Pellet Machines
Related Products
-
Highly Rate Pellet Mill Manufacturer With Robust Pellet Mill EquipmentUS$ 4,500 - 200,000MOQ: 1 Set -
Leeho Brand Pioneer Ring Die Double Lie Mould Pellet Mill EquipmentUS$ 4,500 - 200,000MOQ: 1 Set
-
Leeho Brand Expert in Feed Pelletizing Produce LineUS$ 4,500 - 200,000MOQ: 1 Set
-
Leeho Brand Industiral Olive Greaves Pellet BusinessUS$ 4,500 - 200,000MOQ: 1 Set
-
High Efficiency Wood Sawdust Pellet Making MachineUS$ 15,000 - 23,000MOQ: 1 Set
pellet mill producing project
Introduce of automatic lubrication system pellet mill project
The pellet machine is applied to the shapless material with low adhesiveness such as the rice husk, sunflower seed husk, peanut shell and other fruit shell branch, trunk, bark, crop straws, rubber, cement ,ash and other chemical materials. The pellet machine can be widely used in the feed plant, wood processing, fuel plant, fertilizer plant and chemical plant etc. It is the ideal pressing shaping equipment with low investment and high profit.
Process of rubber wood powder processing line
Crushing system:
If the material too big, we need use crush the material into 3-5mm. It can crusher wood log, straw, bamboo, catton, wood branches, wood pallet etc which can usd for making pellet. The final material wil be usd for making pellet
Drying System
If the material to beprocessed is too wet, the line require the dryer to dry the material to below15%. We can use coal, pellet etc as fuel.
Pelleting System
It is main process for this line which produce the pellet,the pellet used for industry, boiler , factory etc. This machine can produce the pellet size with 4-12mm.
| Model | KL-900 | KL-750 | KL-550 | KL-450 |
| Main Power(KW) | 90 | 75 | 55 | 45 |
| Discharge Power(KW) | 1.5 | 1.5 | Main Ber Drive | Main Bear Drive |
| Electric Dry Oil Pump(KW) | 0.37 | 0.37 | 0.37 | 0.37 |
| Weight(T) | 6.8 | 5.6 | 3.6 | 2.9 |
| Speed of main bear(r/min) | 1450 | 1450 | 1450 | 1450 |
| Voltage(V/HZ) | optional | optional | optional | optional |
| Mould Diameter(mm) | 550 | 500 | 450 | 400 |
| Pellet Size(mm) | 4-12 | 4-12 | 4-12 | 4-12 |
| Temperature(degree) | 80-100 | 80-100 | 80-100 | 80-100 |
| Material Moisture(%) | 15-25 | 15-25 | 15-25 | 15-25 |
| Capacity(kg/h) | 1.2-1.5 | 1-1.2 | 0.8 | 0.6 |
Cooling System:
cool down the output pellets and remove some moisture of pellet
Sieving System
remove the dusts and crushed pellets
Packing System
package the pellets into bags of required sizes
Our Advantage of rice husk pellet processing line
• Feeding vertically and directly to pelletizing room.
• Die static, rollers rotating, materials centrifugal, evenly distributed around.
• Double-layer dies, up and down dual use, high capacity and energy saving.
• Ring die, vertical structure, conducive to the pelletizing room cooling.
• Independent output device, ensure formation rate of pellets.
• Independent lubrication system, bring precise & automatic lubrication to bearings.
• Feeding system is equipped with inverter which can bring stepless adjustable feeding speed.
Shipping Ways
- By sea
- By train
- By truck
- By express: DHL, EMS, FEDEX, UPS, TNT
Payment Methods
- TT
- LC
- Money gram
- West Union
- Trade Assurance
- ESCROW
- Paypal
- etc
1. Befor-sale services: we guide clients to choose the best and suitable mchine, provide the advance, energy-saving and practical technological process. At the same time, we are responsible for the planing and design the machine
2. Sale service: Products must be inspected strictly before being sold,clients are invited to simulate and test machine on the spot; in accordance with the agreements stipulated in the contract, and then we are arrange delivery the machine
3. After-sale service: Our company will offer the professional engineer to guide installation,training how to operation the machine. We are confrim that our clients can use the machine well and bring more and more befit to them.
4. We are design and product machines according to the speciall requirement by clients.
5. Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
