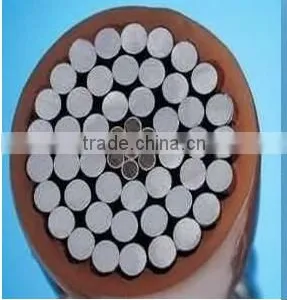

Help CenterNH-VY Copper Conductor PVC Insulated Fire-resitant Cable PE Sheathed Fire-resistant Power Cable Single Core China Manufacturer
Related Products
-
LOW SMOKE YJV Power CablesUS$ 10 - 101MOQ: 100 Meters -
Aluminum Conductor PVC Sheathed Power Cable NH-YJLV 70mm2US$ 10 - 101MOQ: 10 Meters
-
Low and Medium VoltageYJLV Power CableUS$ 10 - 101MOQ: 100 Meters
-
Fire-resisant NH-YJLV23 0.6\1kv 3x95.3 CoreUS$ 10 - 101MOQ: 10 Meters
-
XLPE Insulated Power Cable, VV,YJV,VV22 ,YJV22US$ 10 - 101MOQ: 100 Meters
Operating characterristics
- Long-term allowable operating temperature of cable conductor ≤70
- Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): ≤300mm2 cable conductor ≤160°C, ≥300 mm2 cable conductor≤ 140°C.
- The laying temperature should over 0℃,Permissible bending radius of cable:for single core armored cable, should be no less than 15 times of it’s outer diameter ; for multi-core armored cable, should be no less than 12 times of it’s outer diameter ;
- With fire-resistant property, N,ZAN,ZBN,ZCN,ZDN are 5 types
- The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 0.6/1KV
standards
GB/T12706.1-2008
GB/T19666-2005
Technical parameters
packaging Details:
- In rolls or in wooden drum,
- In export wooden pallet,
- As per customer's requirements
Delivery Detail:
- 10 days after order
Testing Machine
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
(5)What cables does Motian manufature?XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive vehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
(8). Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
The following are most common terms:
a.100% TT advance for small amount orders.
b.30% T/T down payment, balance payment negotiable accordingly.
Motian is a brand of Sichuan Motian Cable Co., Ltd, a Chinese leader in the energy and telecom cables and systems industry.
We mainly aim at managing XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated abc cable overhead cables, and stranded aluminum and ACSR. Annual product capacity of cables and wires is over 30,000 kilometers.
We obtained the certificate of ISO9001 and BV, and Cables must met the standards of China Compulsory Certification(CCC).
Motiancables and wires are widely used in the construction of buildings, airports, power transportation, urban and rural power network reformation and other main projects. Both of our products and factory are greatly commended by customers.
Now we seek for business cooperation all over the world. We sincerely welcome you to visit us.
• More than 10 Years Experience Focus On Cables & OEM manufacturing
• Authoritative certificates supported ISO:9001, BV, CCC
