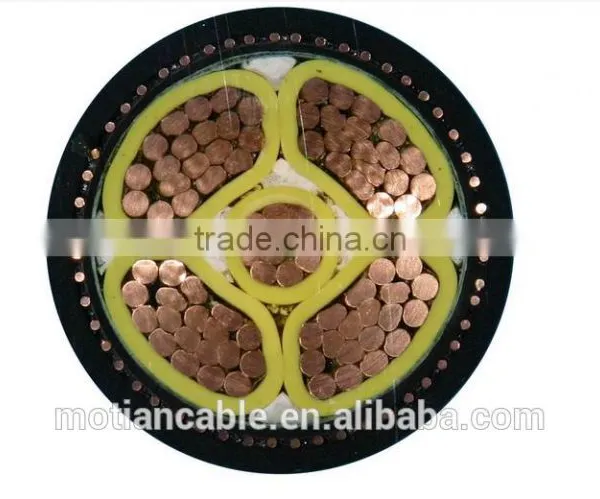

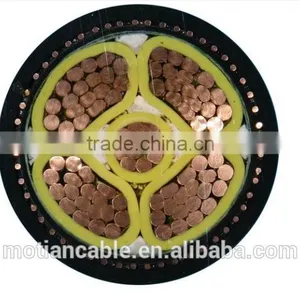

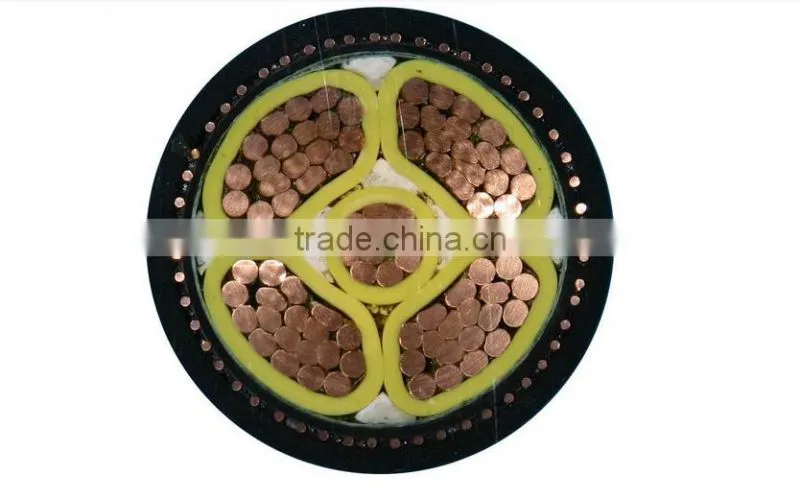

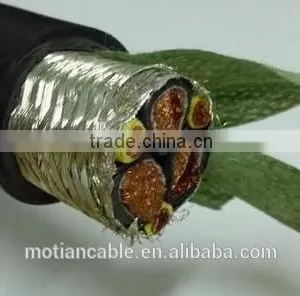

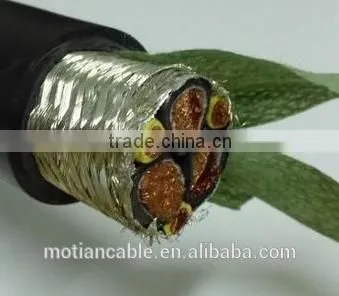

China made BPYJVP 0.6/1KV power cable
Operating characteristics
1,Long-term allowable operating temperature of cable conductor ≤90℃;
2,Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): cable conductor≤ 250°C
3,The laying temperature should over 0℃,Permissible bending radius of cable:for cu wire braided shielded cable, should be no less than 12 times of it’s outer diameter ; for cu tape screened cable, should be no less than 15 times of it’s outer diameter
4,The product is applicable for transmission and distribution lines in frequency conversion system
standard
DB/T11451-2012

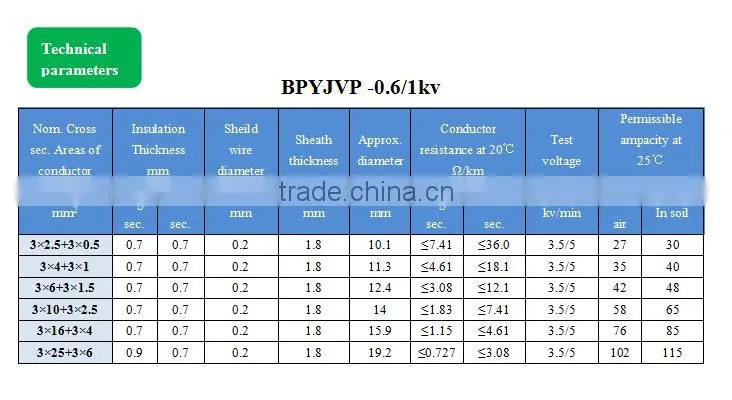

Technical parameters
Packaging Details:Wooden drum, export standard package or as your request
Delivery Detail:Within 15days or mainly depending on your quantity
Testing Machine
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's reques
Delivery Detail: 10 days after receiving 30% T/T or L/C
Motian is a brand of Sichuan Motian Cable Co., Ltd, a Chinese leader in the energy and telecom cables and systems industry.
We mainly aim at managing XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated abc cable overhead cables, and stranded aluminum and ACSR. Annual product capacity of cables and wires is over 30,000 kilometers.
We obtained the certificate of ISO9001 and BV, and Cables must met the standards of China Compulsory Certification(CCC).
Motiancables and wires are widely used in the construction of buildings, airports, power transportation, urban and rural power network reformation and other main projects. Both of our products and factory are greatly commended by customers.
Now we seek for business cooperation all over the world. We sincerely welcome you to visit us.
• More than 10 Years Experience Focus On Cables & OEM manufacturing
Company certifeications show
