PVC insulated ABC aerial bundle cable; ABC cable; Overhead Cable
China low price ABC cable; overhead cable
Voltge: 10kv
- The product is applicable for AC50 Hz transmission and distribution lines with rated voltage of 1KV or 10KV.
- The mechanical properties and electrical performance of cables meet the requirements of national standard GB/T12527-2008.
•Product Show

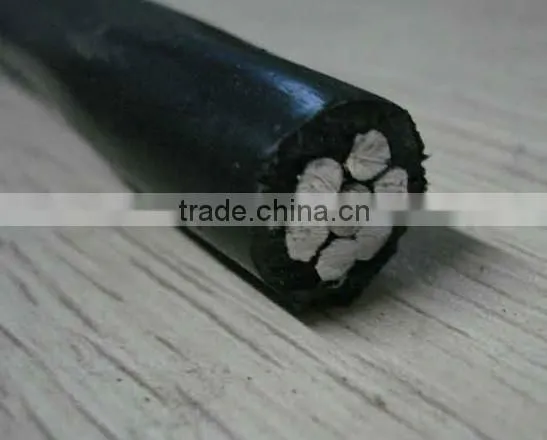

ABC aerial bundle cable; ABC cable; Overhead Cable
1)cable conductor allowed working temperature for a long time:
Polyvinyl chloride (PVC), polyethylene insulation shall not exceed 70 ℃;
Cross-linked polyethylene insulation shall not exceed 90 ℃.
2) cable installation temperature should not below 0 ℃.
3) the allowed bending radius of the cable:
Single core cable :20 (D + d)
Multicore cable : 15 (D + d)
Notes:
D means the actual overall diameter of cable;
d means Actual diameter of cable conductor
Motian is a brand of Sichuan Motian Cable Co., Ltd, a Chinese leader in the energy and telecom cables and systems industry.
We mainly aim at managing XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated abc cable overhead cables, and stranded aluminum and ACSR. Annual product capacity of cables and wires is over 30,000 kilometers.
We obtained the certificate of ISO9001 and BV, and Cables must met the standards of China Compulsory Certification(CCC).
Motiancables and wires are widely used in the construction of buildings, airports, power transportation, urban and rural power network reformation and other main projects. Both of our products and factory are greatly commended by customers.
Now we seek for business cooperation all over the world. We sincerely welcome you to visit us.

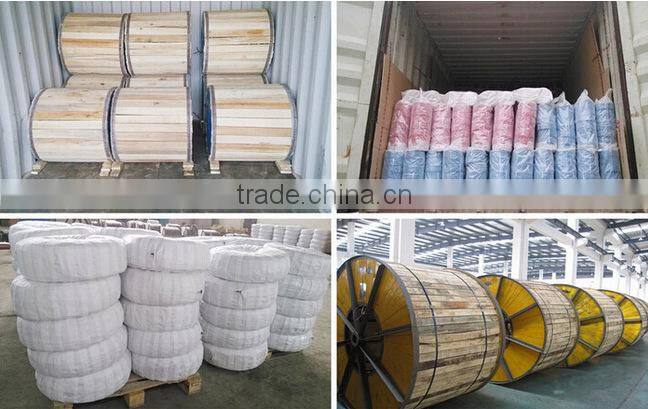

2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's reques
Delivery Detail: 10 days after receiving 30% T/T or L/C
Testing Machine
Motian is a brand of Sichuan Motian Cable Co., Ltd, a Chinese leader in the energy and telecom cables and systems industry.
We mainly aim at managing XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated abc cable overhead cables, and stranded aluminum and ACSR. Annual product capacity of cables and wires is over 30,000 kilometers.
We obtained the certificate of ISO9001 and BV, and Cables must met the standards of China Compulsory Certification(CCC).
Motiancables and wires are widely used in the construction of buildings, airports, power transportation, urban and rural power network reformation and other main projects. Both of our products and factory are greatly commended by customers.
Now we seek for business cooperation all over the world. We sincerely welcome you to visit us.
• More than 10 Years Experience Focus On Cables & OEM manufacturing
Company certifeications show
