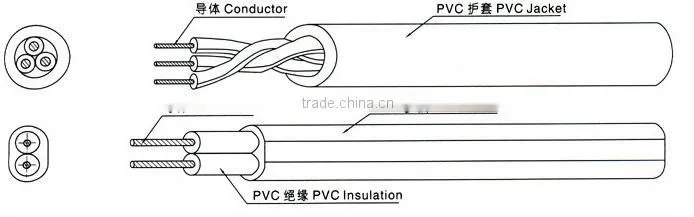

PVC flexible wire /RVV cable
PVC flexible wire /RVV cable
1. Used in exchange 300/500 V rated voltage electrical installations and below, apparattus and electronin equipment used lighting and electric supply lines, the line of control and signal transmission lines.
2. Applicable to the Security Monitoring Project, anti-theft alarm system,building systems and so on with speaking lines.
3. Model List: Rvv cable
We have two cores, there cores, four cores, five cores, six cores, seven cores
The sizes including:0.3mm2, 0.5mm2, 0.75mm2, 1mm2,1.5mm2, 2.5mm2, 4mm2, 6mm2
4.Long time working temperature:Not more than 70.
Application: General purpose indoor and outdoor, power cords for electrical tools and appliance.
| SPEC. | Normal area mm2 |
Conductor Structure mm |
Min.insulation resistance at 700C Mohm.km |
Thickness of insulation mm |
Thickness of sheath mm |
Approx. overall diameter mm |
|
| 300/300V | 227 IEC 52(RVV) | 2x0.5 | 28x0.15 | 0.012 | 0.5 | 0.6 | 5.1 |
| 227 IEC 52(RVV) | 2x0.75 | 24x0.20 | 0.010 | 0.5 | 0.6 | 5.6 | |
| 227 IEC 52(RVV) | 3x0.5 | 28x0.15 | 0.012 | 0.5 | 0.6 | 5.4 | |
| 227 IEC 52(RVV) | 3x0.75 | 24x0.20 | 0.010 | 0.5 | 0.6 | 5.9 | |
| 227 IEC 53(RVV) | 2x0.75 | 24x0.20 | 0.011 | 0.6 | 0.8 | 6.4 | |
| 300/500V | 227 IEC 53(RVV) | 2x1.0 | 32x0.20 | 0.010 | 0.6 | 0.8 | 6.7 |
| 227 IEC 53(RVV) | 2x1.5 | 48x0.20 | 0.010 | 0.7 | 0.8 | 7.7 | |
| 227 IEC 53(RVV) | 2x2.5 | 77x0.20 | 0.009 | 0.8 | 1.0 | 9.3 | |
| 227 IEC 53(RVV) | 3x0.75 | 24x0.20 | 0.011 | 0.6 | 0.8 | 6.8 | |
| 227 IEC 53(RVV) | 3x1.0 | 32x0.20 | 0.010 | 0.6 | 0.8 | 7.1 | |
| 227 IEC 53(RVV) | 3x1.5 | 48x0.20 | 0.010 | 0.7 | 0.9 | 8.3 | |
| 227 IEC 53(RVV) | 3x2.5 | 77x0.20 | 0.009 | 0.8 | 1.0 | 9.8 | |
| RVV | 3x4.0 | 56x0.30 | 0.007 | 0.8 | 1.1 | 10.9 | |
| RVV | 3x6.0 | 84x0.30 | 0.006 | 0.8 | 1.2 | 12.4 | |
| 227 IEC 53(RVV) | 4x1.0 | 32x0.20 | 0.010 | 0.6 | 0.9 | 7.9 | |
| 227 IEC 53(RVV) | 4x1.5 | 48x0.20 | 0.010 | 0.7 | 1.0 | 9.3 | |
| 227 IEC 53(RVV) | 4x2.5 | 77x0.20 | 0.009 | 0.8 | 1.1 | 11.0 | |
| RVV | 4x4.0 | 56x0.30 | 0.007 | 0.8 | 1.2 | 12.2 | |
| RVV | 4x6.0 | 84x0.30 | 0.006 | 0.8 | 1.3 | 13.8 | |
| RVV | 4x10.0 | 84x0.40 | 0.0056 | 1.0 | 1.3 | 18.6 | |
| RVV | 4x16.0 | 126x0.40 | 0.0046 | 1.0 | 1.4 | 21.4 | |
| 227 IEC 53(RVV) | 5x1.5 | 48x0.20 | 0.010 | 0.7 | 1.1 | 10.3 | |
| 227 IEC 53(RVV) | 5x2.5 | 77x0.20 | 0.009 | 0.8 | 1.2 | 12.2 | |
| RVV | 5x4.0 | 56x0.30 | 0.007 | 0.8 | 1.2 | 13.4 | |
| RVV | 5x6.0 | 84x0.30 | 0.006 | 0.8 | 1.3 | 15.2 | |
| RVV | 5x10.0 | 84x0.40 | 0.0056 | 1.0 | 1.3 | 20.5 | |
| RVV | 5x16.0 | 126x0.40 | 0.0046 | 1.0 | 1.4 | 23.7 |

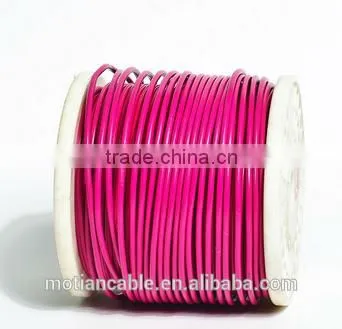

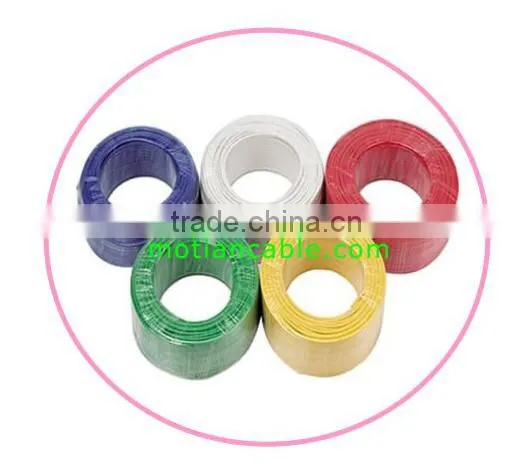

packaging Details:
- In rolls or in wooden drum,
- In export wooden pallet,
- As per customer's requirements
Delivery Detail:
- 10 days after order
Testing Machine
Why Choose Motian??
- Advanced connectors & assembly cables machines and testing equipments.
- Large production capacity, short delivery.
- Strict QC checking before delivery.
- OEM/ODM service available, help you on designing.
- Prompt quotation for your inquiry.
- More than 10 years experiences in cable and wire field.
- Professional connector and cable manufacturer, with good quality and competitive price.
- Samples are available for further evaluation and you are highly welcome to visit our factory at anytime!!
Motian is a brand of Sichuan Motian Cable Co., Ltd, a Chinese leader in the energy and telecom cables and systems industry.
We mainly aim at managing XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated abc cable overhead cables, and stranded aluminum and ACSR. Annual product capacity of cables and wires is over 30,000 kilometers.
We obtained the certificate of ISO9001 and BV, and Cables must met the standards of China Compulsory Certification(CCC).
Motiancables and wires are widely used in the construction of buildings, airports, power transportation, urban and rural power network reformation and other main projects. Both of our products and factory are greatly commended by customers.
Now we seek for business cooperation all over the world. We sincerely welcome you to visit us.
• More than 10 Years Experience Focus On Cables & OEM manufacturing
