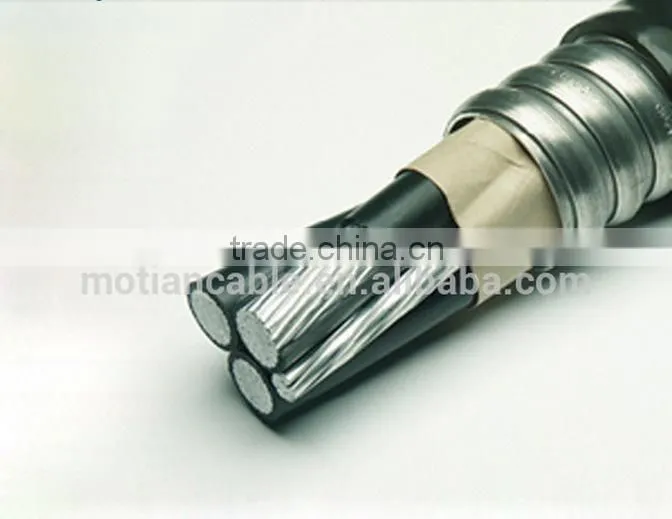

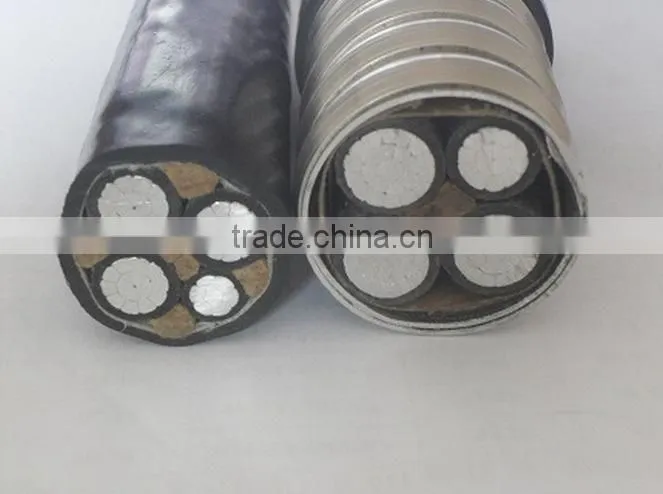

HOT Sale YJLHV82(ACWU90) Power Cables Aluminum alloy conductor XLPE insulated Armored Cables Electric Wiring 0.6/1KV
Operating characteristics
1,Long-term allowable operating temperature of cable conductor ≤70°C
2,Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s):≤300mm2 cable conductor ≤160°C, ≥300 mm2 cable conductor≤ 140°C.
3,The laying temperature should over 0℃,Permissible bending radius of cable:for single core unarmored cable, should be no less than 20 times of it’s outer diameter ; for multi-core unarmored cable, should be no less than 15 times of it’s outer diameter
4,With flame-retardant property,ZA,ZB,ZC,ZD are 4 types
5,The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 0.6/1KV
standard
GB/T12706.1-2008
GB/T19666-2005
Technical parameters
packaging Details:
- In rolls or in wooden drum,
- In export wooden pallet,
- As per customer's requirements
Delivery Detail:
- 10 days after order
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's reques
Delivery Detail: 10 days after receiving 30% T/T or L/C
Why Choose Motian??
- Advanced connectors & assembly cables machines and testing equipments.
- Large production capacity, short delivery.
- Strict QC checking before delivery.
- OEM/ODM service available, help you on designing.
- Prompt quotation for your inquiry.
- More than 10 years experiences in cable and wire field.
- Professional connector and cable manufacturer, with good quality and competitive price.
- Samples are available for further evaluation and you are highly welcome to visit our factory at anytime!!
Testing Machine
Motian is a brand of Sichuan Motian Cable Co., Ltd, a Chinese leader in the energy and telecom cables and systems industry.
We mainly aim at managing XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated abc cable overhead cables, and stranded aluminum and ACSR. Annual product capacity of cables and wires is over 30,000 kilometers.
We obtained the certificate of ISO9001 and BV, and Cables must met the standards of China Compulsory Certification(CCC).
Motiancables and wires are widely used in the construction of buildings, airports, power transportation, urban and rural power network reformation and other main projects. Both of our products and factory are greatly commended by customers.
Now we seek for business cooperation all over the world. We sincerely welcome you to visit us.
• More than 10 Years Experience Focus On Cables & OEM manufacturing
Company certifeications show
