Help CenterYJV/YJV22 XLPE Insulated PVC Sheathed Steel Tape Armoured Power Cable
Related Products
-
Supplier 3 Cores XLPE Insulation Power Cable With CCC CertificateUS$ 0.6 - 45MOQ: 1000 Meters -
XLPE Insulated 2500mm2 /submarine Power CableUS$ 0.6 - 45MOQ: 1000 Meters
-
Motian Brand Electrical Cable RateUS$ 0.37 - 59.16MOQ: 500 Meters
-
Factory Manufacture Low Voltage Power CableUS$ 0.35 - 56.12MOQ: 500 Meters
-
Steel Tape Armored Electrical CableUS$ 0.36 - 58.12MOQ: 500 Meters
copper conductor or aluminum conductor XLPE Insulated Armored Electric Power Cable 0.6/1kV 25mmm 50mm 100mm 120mm 150mm
Application:
It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
Using features:
1. Rated voltage: Uo/U: 26/35kV, 21/35kV, 12/20 kV (24 kV), 8.7/10kV, 8.7/15kV, 6/6kV, 6/10kV.
2. 2. No. of core: Single-core, Three-core.
3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250.
4. D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.
5. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
6. The cable is laid without horizontal drop limit. The Min. Bending radius of three-core cable should be no smaller than 12 times of cable outer diameter.
7. Working Frequency Voltage Test:.
For cable with Uo of 3.6kV or lower: 2.5Uo+2kV/5min without puncture.
For cable with Uo of 3.6kv~18kV: 3.5Uo/5min without puncture.
For cable with Uo of 21kV and 26 kV: 2.5Uo/30min without puncture.
8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable
The specification:
Our company information :
Sichuan Motian Cable Co. Ltd. was founded in 2005, located in north area of Modern Industrial Zone, Chengdu.
The company has obtained ISO9001: 2008, CCC certificates and also “Sichuan Famous Brand”,
“Famous and Excellent Products in Sichuan” and so on. Our company is specialized in various cables and wires with low
medium and high voltage up to35KV, mainly including: XLPE insulated power cable,
Rare earth high speed rail aluminum conductor power cable,Aerial insulated cable, Mining cable, Control Cable, Rubber sheathed cable
Special cables as flame retardant cable, fire resistant cable, LSZH cable and Sheathed or non-sheathed wires. The products can be widely applied in the areas of power station, metallurgy, mines, petrochemical, machinery, building, communication etc.
We have professional R & D department and have obtained patents for various of our products.

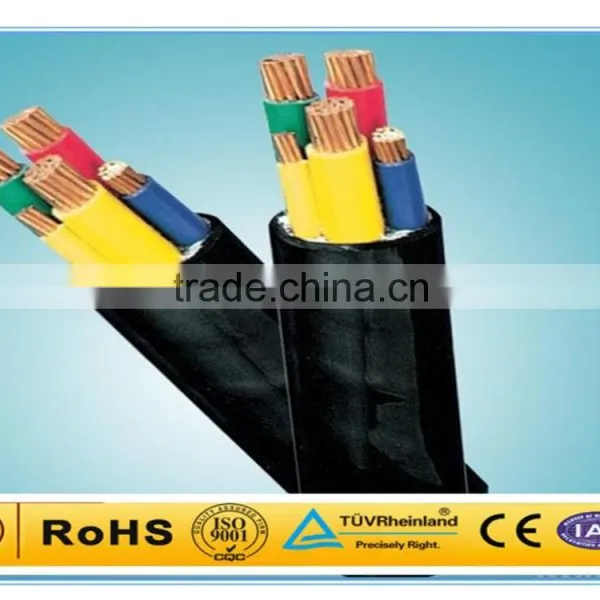

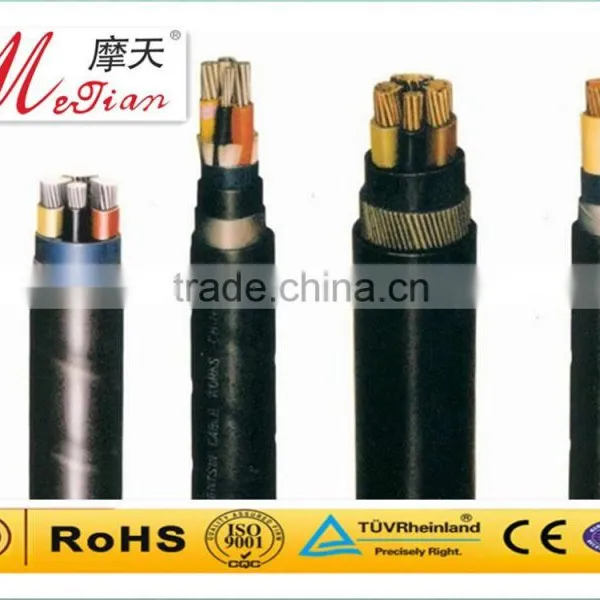

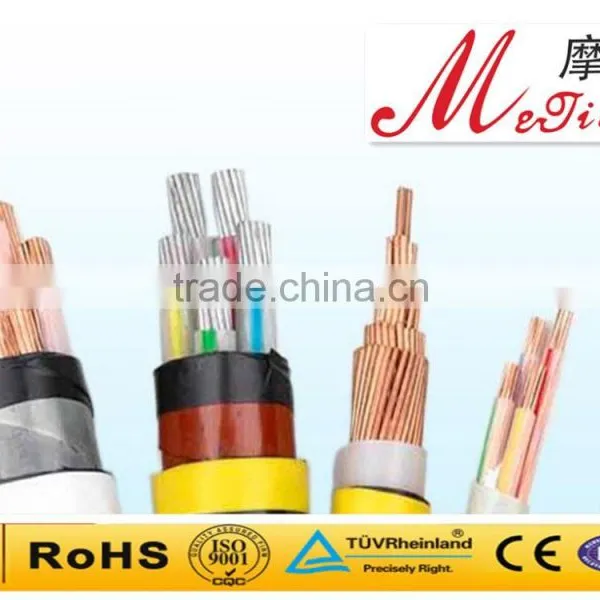

Product show:
Testing equipment:
Our workshop:
Packaging and shipping:
Our certification:
Why Choose Motian??
- Advanced connectors & assembly cables machines and testing equipments.
- Large production capacity, short delivery.
- Strict QC checking before delivery.
- OEM/ODM service available, help you on designing.
- Prompt quotation for your inquiry.
- More than 10 years experiences in cable and wire field.
- Professional connector and cable manufacturer, with good quality and competitive price.
- Samples are available for further evaluation and you are highly welcome to visit our factory at anytime!!
