Help CenterElectrical Armoured Cable 5 Core Power Cable 35mm 50mm 70mm 95mm 120mm 240mm Power Cable
Related Products
-
Copper Core PVC Insulated Armoured Cable Power Cable 25mm2US$ 0.6 - 50MOQ: 1000 Meters -
Copper Conductor or Aluminum Conductor XLPE Insulated Armored Electric Power Cable 0.6/1kV 25mmm 50mm 100mm 120mm 150mmUS$ 0.6 - 45MOQ: 1000 Meters
-
35KV 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Electric CableUS$ 0.32 - 58.12MOQ: 500 Meters
-
YJY 0.6/1KV Copper Conductor XLPE Insulated PE Sheathed Power CableUS$ 0.35 - 59.16MOQ: 500 Meters
-
XLPE Insulated Armored Electric Power Cable 0.6/1kV 25mmm 50mm 100mm 120mm 150mmUS$ 0.6 - 45MOQ: 1000 Meters
Multi Cores YJV YJLV Insulated Power Cable Made In China
1.Rubber Cable Working Conditions:
1.Rated voltage :300/500(YZ type),450V(YC type)
2.The long-term working temperature of conductor should be no longer than 65*C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
2.Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
5. D>25mm
The minimum bending radius is over 6 times of cable diameter.
D≤25mm
The minimum bending radius is over 4 times of cable diameter.
(D-Diameter of the cable)
Technical parameters:
| BV,BLV Type 450/750 PVC Insulated Electrical Power cable. | |||||||||
| Conductor norminal area (mm2) | Conductor core | insulated norminal thickness (mm) | Average outer diameter upper limitation (mm) | Conductor resistance Ω/km nore than at 20 ℃ | Min. insulation resistance at 70℃ MΩ.KM | Weight kg/km | |||
| QTY/Single core norminal diameter (mm) | copper core | Tinned copper core | Alluminum core | Copper | Alluminum | ||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | 12.2 | _ | 0.011 | 20.1 | _ |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | 12.2 | _11.8 | 0.01 | 21.44 | _ |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 7.56 | 0.01 | 31.7 | 16.27 | |
| 2.5 | 7/0.68 | 0.8 | 4.2 | 7.41 | 7.56 | 7.39 | 0.009 | 34.58 | |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 4.7 | 0.085 | 46.46 | 21.99 | |
| 4 | 7/0.85 | 0.8 | 4.8 | 4.61 | 4.7 | 4.91 | 0.0077 | 49.87 | |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 3.11 | 0.007 | 66.25 | 29.26 | |
| 6 | 7/1.04 | 0.8 | 5.4 | 3.08 | 3.11 | 3.08 | 0.0065 | 70.54 | |
| 10 | 7/1.35 | 1 | 7 | 1.83 | 1.84 | 1.91 | 0.0065 | 112.74 | 49.34 |
| 16 | 7/1.70 | 1 | 8 | 1.15 | 1.16 | 1.2 | 0.006 | 177.73 | |
| 25 | 7/2.14 | 1.2 | 10 | 0.7207 | 0.734 | 0.868 | 0.005 | 279.32 | 120.2 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.529 | 0.641 | 0.0454 | 377 | 156.2 |
| 50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.391 | 0.443 | 0.0045 | 507.5 | 206.32 |
| 70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.27 | 0.32 | 0.0035 | 715.16 | 272.41 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.195 | 0.253 | 0.0035 | 987.69 | 384.19 |
| 120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.154 | 0.206 | 0.0032 | 1220.3 | 462.9 |
| 150 | 37/2.52 | 1.8 | 21 | 0.124 | 0.126 | 0.164 | 0.0032 | 1501.45 | 571.25 |
| 185 | 61/2.25 | 2 | 23.5 | 0.0991 | 0.1 | 0.125 | 0.0032 | 1882.01 | 714.32 |
| 240 | 61/2.52 | 2.2 | 26.5 | 0.0754 | 0.0762 | 0.1 | 0.0032 | ||

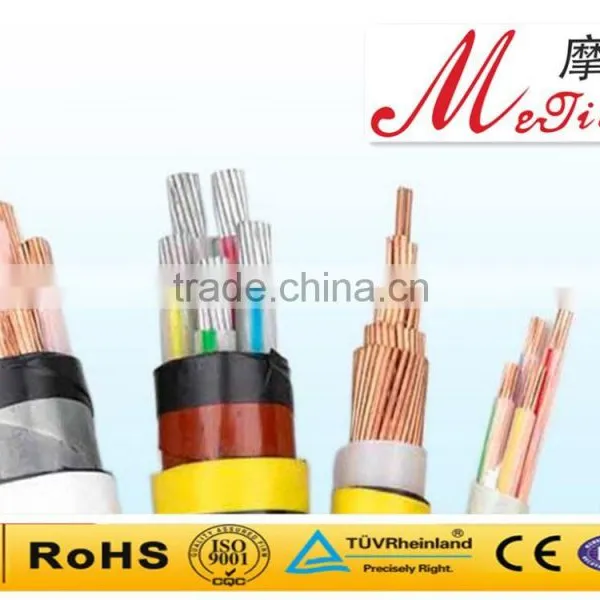

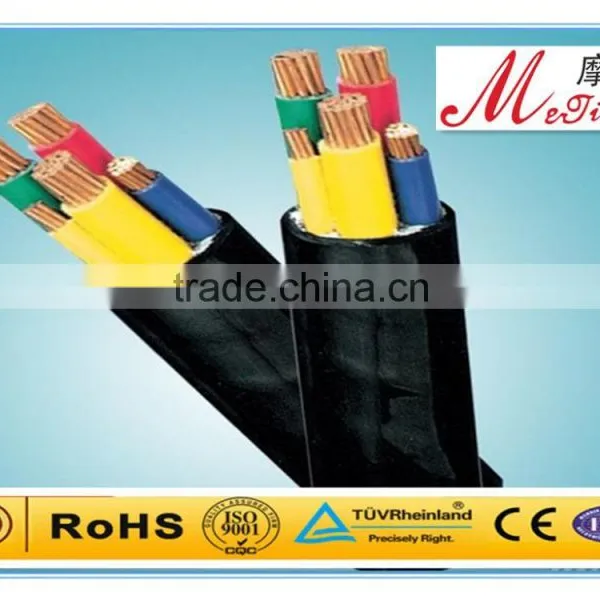

Product show:
Company information information:
About us
Sichuan Motian Cable Co. Ltd. was founded in 2005, located in north area of Modern Industrial Zone, Chengdu. The company has obtained ISO9001: 2008, CCC certificates and also “Sichuan Famous Brand”, “Famous and
Excellent Products in Sichuan” etc.
Our company is specialized in various cables and wires with low, medium and high voltage up to35KV
With perfect quality and sound after sales service, our products recive high popularity in domestic markets,
whatever in civil using or governrment projects. Now we are expanding our market all over the world, hereby we
sincerely welcome you to contact us and visit our company.
Testing equipment:
:
Our workshop:

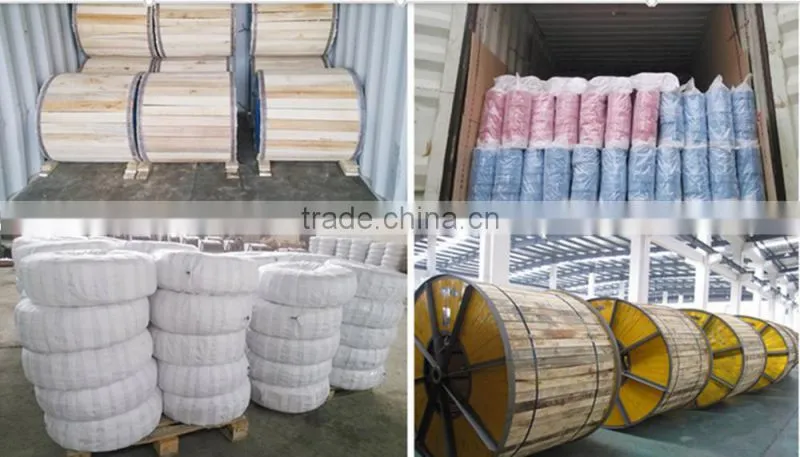

Transportation:
1) Packing Length:100m/roll or according to client's request.
) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's reques
Delivery Detail: 10 days after receiving 30% T/T or L/C
The certificate:
Why Choose Motian??
- Advanced connectors & assembly cables machines and testing equipments.
- Large production capacity, short delivery.
- Strict QC checking before delivery.
- OEM/ODM service available, help you on designing.
- Prompt quotation for your inquiry.
- More than 10 years experiences in cable and wire field.
- Professional connector and cable manufacturer, with good quality and competitive price.
- Samples are available for further evaluation and you are highly welcome to visit our factory at anytime!!
Contact us:
