Below 35kv YJLV 0.6/1KV Aluminum conductor power cable
Application
Flexible copper conductor rubber welding cable is used for connecting the electrode to the welding machine.
Product Description
1) Nominal area: 10~185mm2
2) Conductor: class 5 tinned or plain copper wire
3) No. of cores: 1
4) Insulation: rubber compound, PCP
5) The products available include:
60245IEC 81: rubber sheathed arc welding electrode cable
60245IEC 82: polychloroprene or other equivalent synthetic elastomer sheathed arc welding electrode cable
Technical parameters:
| BV,BLV Type 450/750 PVC Insulated Electrical Power cable. | |||||||||
| Conductor norminal area (mm2) | Conductor core | insulated norminal thickness (mm) | Average outer diameter upper limitation (mm) | Conductor resistance Ω/km nore than at 20 ℃ | Min. insulation resistance at 70℃ MΩ.KM | Weight kg/km | |||
| QTY/Single core norminal diameter (mm) | copper core | Tinned copper core | Alluminum core | Copper | Alluminum | ||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | 12.2 | _ | 0.011 | 20.1 | _ |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | 12.2 | _11.8 | 0.01 | 21.44 | _ |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 7.56 | 0.01 | 31.7 | 16.27 | |
| 2.5 | 7/0.68 | 0.8 | 4.2 | 7.41 | 7.56 | 7.39 | 0.009 | 34.58 | |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 4.7 | 0.085 | 46.46 | 21.99 | |
| 4 | 7/0.85 | 0.8 | 4.8 | 4.61 | 4.7 | 4.91 | 0.0077 | 49.87 | |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 3.11 | 0.007 | 66.25 | 29.26 | |
| 6 | 7/1.04 | 0.8 | 5.4 | 3.08 | 3.11 | 3.08 | 0.0065 | 70.54 | |
| 10 | 7/1.35 | 1 | 7 | 1.83 | 1.84 | 1.91 | 0.0065 | 112.74 | 49.34 |
| 16 | 7/1.70 | 1 | 8 | 1.15 | 1.16 | 1.2 | 0.006 | 177.73 | |
| 25 | 7/2.14 | 1.2 | 10 | 0.7207 | 0.734 | 0.868 | 0.005 | 279.32 | 120.2 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.529 | 0.641 | 0.0454 | 377 | 156.2 |
| 50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.391 | 0.443 | 0.0045 | 507.5 | 206.32 |
| 70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.27 | 0.32 | 0.0035 | 715.16 | 272.41 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.195 | 0.253 | 0.0035 | 987.69 | 384.19 |
| 120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.154 | 0.206 | 0.0032 | 1220.3 | 462.9 |
| 150 | 37/2.52 | 1.8 | 21 | 0.124 | 0.126 | 0.164 | 0.0032 | 1501.45 | 571.25 |
| 185 | 61/2.25 | 2 | 23.5 | 0.0991 | 0.1 | 0.125 | 0.0032 | 1882.01 | 714.32 |
| 240 | 61/2.52 | 2.2 | 26.5 | 0.0754 | 0.0762 | 0.1 | 0.0032 | ||

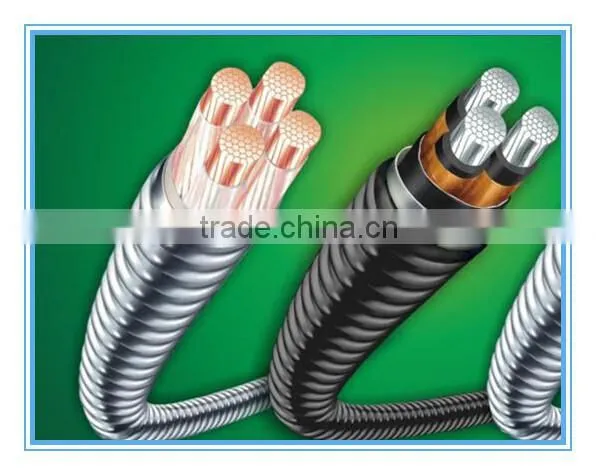

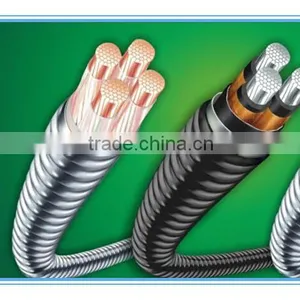

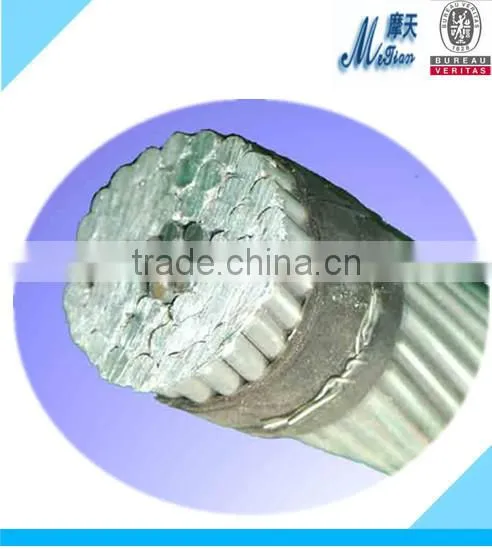

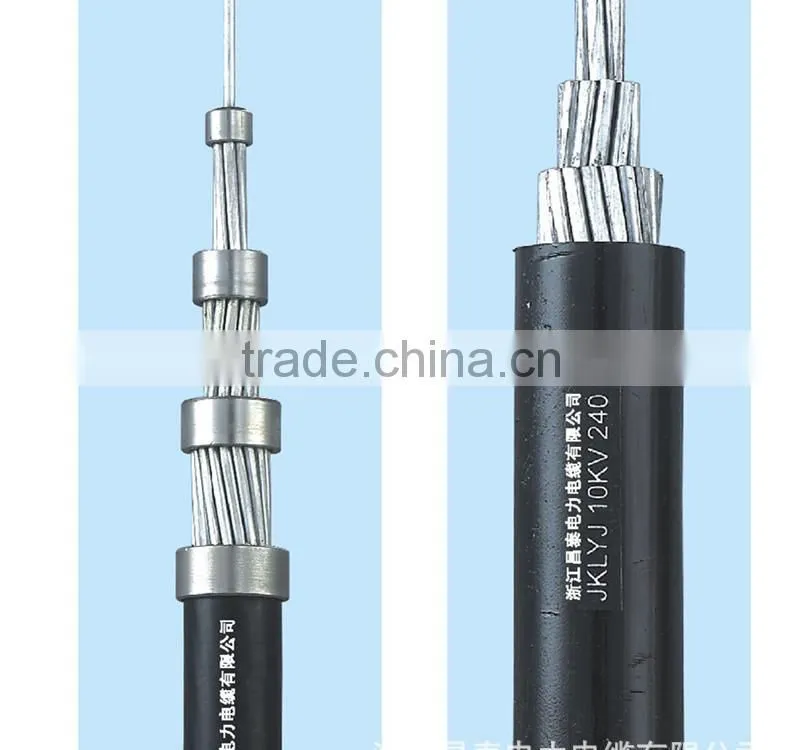

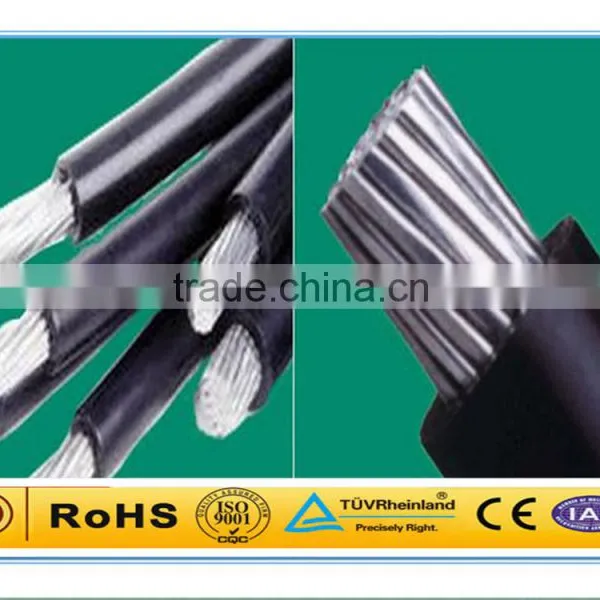

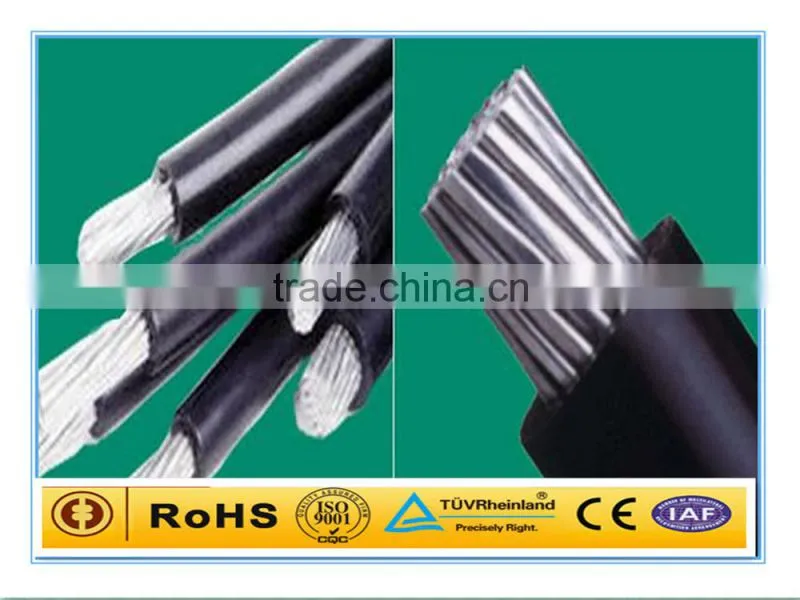

Product show:
Company information:
About us
Sichuan Motian Cable Co. Ltd. was founded in 2005, located in north area of Modern Industrial Zone, Chengdu. The company has obtained ISO9001: 2008, CCC certificates and also “Sichuan Famous Brand”, “Famous and
Excellent Products in Sichuan” etc.
Our company is specialized in various cables and wires with low, medium and high voltage up to35KV
With perfect quality and sound after sales service, our products recive high popularity in domestic markets,
whatever in civil using or governrment projects. Now we are expanding our market all over the world, hereby we
sincerely welcome you to contact us and visit our company.
Testing equipment:
:
Our workshop:
Packaging:
Order process:
Transportation:
1) Packing Length:100m/roll or according to client's request.
) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's reques
Delivery Detail: 10 days after receiving 30% T/T or L/C
The certificate:
Why Choose Motian??
- Advanced connectors & assembly cables machines and testing equipments.
- Large production capacity, short delivery.
- Strict QC checking before delivery.
- OEM/ODM service available, help you on designing.
- Prompt quotation for your inquiry.
- More than 10 years experiences in cable and wire field.
- Professional connector and cable manufacturer, with good quality and competitive price.
- Samples are available for further evaluation and you are highly welcome to visit our factory at anytime!!
