Rated Voltage 300/500V/450/750V Single-core Non-sheathed Cable With Rigid Conductor for General Purposes

Rated Voltage 300/500V/450/750V Single-core Non-sheathed Cable With Rigid Conductor for General Purposes photo-1

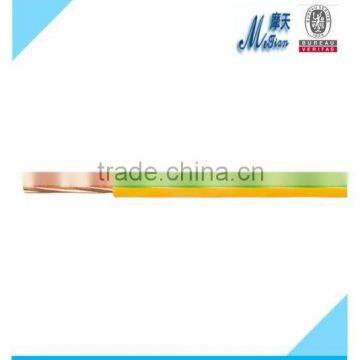

Rated Voltage 300/500V/450/750V Single-core Non-sheathed Cable With Rigid Conductor for General Purposes photo-2
US$ 10 - 80 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Motian
Model Number:
BV
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Chengdu
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name Motian
Model Number BV
Type Other, Insulated, Non-sheathed Cable with Rigid Conductor for general purposes
Application Other, Constraction, underground,etc.
Conductor Material Copper
Conductor Type Stranded
Insulation Material PVC



Product Description



   Rated Voltage 300/500V/450/750V Single-core Non-sheathed Cable with Rigid Conductor for general purposes





1Long-term allowable operating temperature of cable conductor 70°C

2. In AC system, system voltage should lower than rated voltage of cable;

3. In DC system, system voltage should no more than 1.5 times of rated voltage of cable;

4. Ambient temperature of installation not lower than 0, allowable bending radius: for cables with outer diameter(D) less than 25mm, should be not less than 4D; for cables with outer diameter(D) 25mm and above, should not be less than 6D.

5. The products are suitable for fixed laying or laid in pipes, overhead.

 Rated Voltage 300/500V/450/750V Single-core Non-sheathed Cable with Rigid Conductor for general purposes



Technical Parameters





Company Information

Rated Voltage 300/500V/450/750V Single-core Non-sheathed Cable with Rigid Conductor for general purposes

 Sichuan Motian Cable Co. Ltd. was founded in 2005, located in north area of Modern Industrial  Zone, Chengdu. The company has obtained ISO9001: 2008, CCC certificates and also Sichuan Famous BrandFamous and Excellent Products in Sichuan and so on.

 Our company is specialized in various cables and wires with low, medium and high voltage up to35KV, mainly including: XLPE insulated power cable, Rare earth high speed rail aluminum conductor power cable,

Aerial insulated cable, Mining cable, Control Cable, Rubber sheathed cable, Special cables as flame retardant cable, fire resistant cable, LSZH cable and Sheathed or non-sheathed wires. The products can be widely applied in the areas of power station, metallurgy, mines, petrochemical, machinery, building, communication etc.

 We have professional R & D department and have obtained patents for various of our products.
