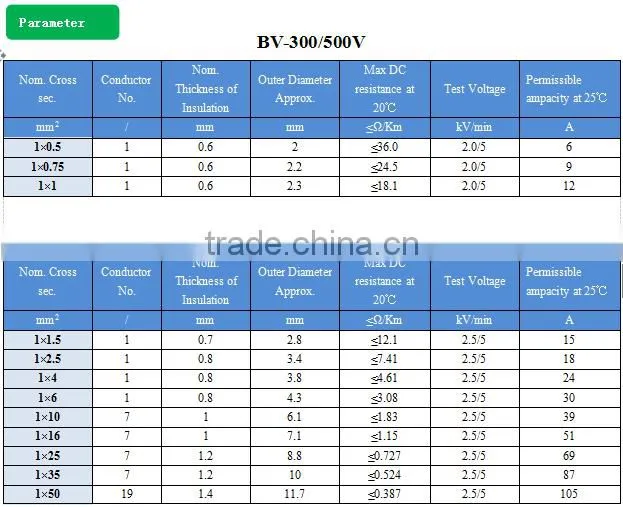

300/500V Single-core Non-sheathed wires BV cable and electrical wires Copper Conductor PVC Insulated wires description
1. Long-term allowable operating temperature of cable conductor ≤70°C;
2. In AC system, system voltage should lower than rated voltage of cable;
3. In DC system, system voltage should no more than 1.5 times of rated voltage of cable;
4. Ambient temperature of installation not lower than 0℃, allowable bending radius: for cables with outer diameter(D) less than 25mm, should be not less than 4D; for cables with outer diameter(D) 25mm and above, should not be less than 6D.
5. The products are suitable for fixed laying or laid in pipes, overhead.
450/750V BLV PVC Insulated wires and cables aluminum conductor wires PVC outer sheath wires pictures
Testing Machine
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's reques
Delivery Detail: 10 days after receiving 30% T/T or L/C
Why Choose Motian??
- Advanced connectors & assembly cables machines and testing equipments.
- Large production capacity, short delivery.
- Strict QC checking before delivery.
- OEM/ODM service available, help you on designing.
- Prompt quotation for your inquiry.
- More than 10 years experiences in cable and wire field.
- Professional connector and cable manufacturer, with good quality and competitive price.
- Samples are available for further evaluation and you are highly welcome to visit our factory at anytime!!
About us
Sichuan Motian Cable Co. Ltd. was founded in 2005, located in north area of Modern Industrial Zone, Chengdu. The company has obtained ISO9001: 2008, CCC certificates and also “Sichuan Famous Brand”, “Famous and
Excellent Products in Sichuan” etc.
Our company is specialized in various cables and wires with low, medium and high voltage up to35KV
With perfect quality and sound after sales service, our products recive high popularity in domestic markets,
whatever in civil using or governrment projects. Now we are expanding our market all over the world, hereby we
sincerely welcome you to contact us and visit our company.
Producing procces
