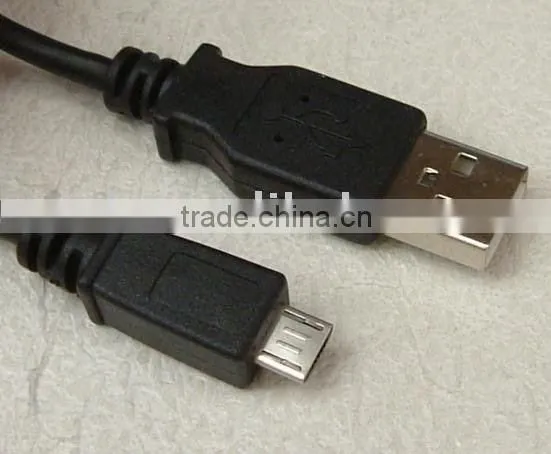

Help CenterMicro BM TO AM USB Cable
Related Products
Specifications
Micro USB 5P BM TO USB AM USB Cable1,ROHS,CE,ISO,UL
2,LCP30% G/F UL94V-0
3,PBT30%,Black
4,28AWG/2C + 28AWG/2P
Micro USB 5P BM TO USB AM Cable USB2.0 CABLE
USB2.0 Cable,USB Cable,USB2.0 am/bm
Shell material PVC
o Shell Color/finish WHITE
o Bushing/strain Relief NO
o Contacts Material Brass
o Contact Finish NICKET
o Solder Connections Yes
o Color coding WHITE
o Tip cuts NO
o Ring Cuts NO
o Jacket
Material PVC
o Diameter(mm)of total cable 4.5/5.0
o Color Transparent clear
o Marking
o Brand OEM
o Traceability-rendor ID and Date code Yes
o Directional Arrows n/a
o Polarity Indicator n/a
o Cable
Center condactor
o Wire material Bare annealed copper
o Construction(no/mm) 7/0.12mm + 5/0.15
o Wire Gauge(AWG) 26AWG x 2C + 28AWG x 2C
o Conductor Resistance n/a
o Dielectric Insulator
o Dielectric material PE + PVC
o Outer conductor tape shielding Yes
o Tape shielding material AL-Tape
Housnig Material: LCP 30% G/F UL94V-0 AND PBT 30% G/F 94V-0 |
Contact Material: Brass |
Contact Plated: Gold 15U on Contact Area Other 100U MIN.Lead |
Current Rating: 0.5Amp |
Contact Resistance: 0.1 ohms/m. |
Insulator Resistance: 100Megohms Min. |
Dielectric Withstanding: AC 250V for 1 minute |
Operating Temp.: 0°C~+60°C |
Shell Material: Brass |
Shell Plated: Ni 50u Min. |
Wire Size[AWG]: 28AWG/2C+28AWG/2P |
