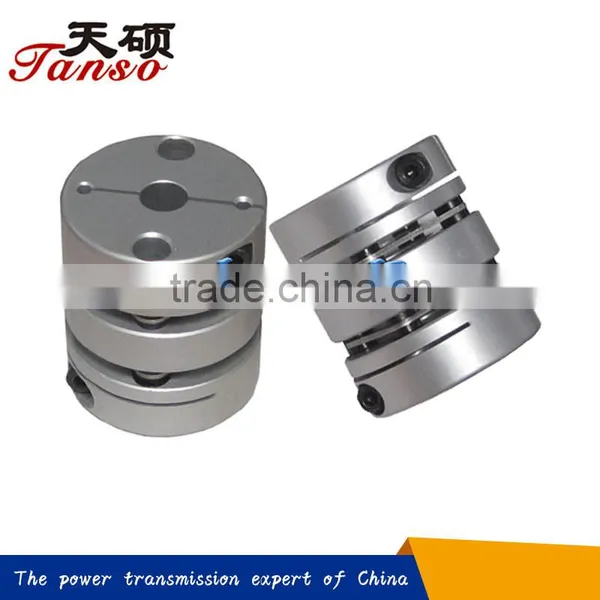

Tanso Mini Disc Coupling

Tanso Mini Disc Coupling thumbnail-1
Tanso Mini Disc Coupling photo-1
US$ 5 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Structure:
Disc
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Cangzhou Tanso Coupling Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Disc
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Aluminium
Brand Name Tanso
Place of Origin Hebei, China
Model Number TS3D

disc couplings :

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

Features of TS3D mini disc coupling:

1.High torque capacity and excellent response

2.Zero backlash

3.Stainless steel discs absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Clamp type

6.For servomotor,stepmotor connection



Fundamental dimensions

Model

Φ d1Φd2
Bore diameter

ΦD

L

F





L1

M

Wrench Torque
N·m



TS3D-26

5 6 8
9.525 10

26

35

2.5

7.0

M3

1.5



TS3D-34

8 9.525 10
11 12 14

34

45

3.1

10.6

M4

1.5



TS3D-39

10 11 12
14 15 16

39

49

4.1

10.8

M4

2.5



TS3D-44

11 12 14
15 16 19

44

50

4.5

11.0

M4

2.5



TS3D-56

14 15 16 19
20 22 24

56

63

5.0

13.0

M5

7.0



TS3D-88

19 20 22
24 30 35

68

74

6.0

14.0

M6

12



TS3D-82

24 28 30
35 38 40

82

98

8.0

22.0

M8

16



Parameters

Model

Rated Torque
(N·m)

Max Torque
(N·m)

Max Rotational Frequency
(rpm)

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Parallel misalignment
mm

Angular misalignment

Mass
g

TS3D-26

1.4

2.8

10000

1.8×10-6

0.04

1.5

±0.4

34

TS3D-34

2.8

5.6

10000

8.9×10-5

0.04

1.5

±0.4

70

TS3D-39

5.8

11.6

10000

2.4×10-5

0.04

1.5

±0.4

118

TS3D-44

8.7

17.4

10000

3.2×10-5

0.04

1.5

±0.4

142

TS3D-56

25

50

10000

1.1×10-4

0.04

1.5

±0.4

296

TS3D-88

55

110

10000

2.8×10-4

0.04

1.5

±0.4

544

TS3D-82

80

160

10000

1.0×10-3

0.04

1.5

±0.4

1020
