Structure Jaw / Spider
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Stainless Steel
Place of Origin Hebei, China
Model Number TS2

The zero backlash jaw coupling is comprised of an elastic "spider" and two hubs. The spider, made of an advanced polyurethane material, provides dampening of impulse loads, minimizing shock to the motor and other sensitive equipment. Available in three durometers, these spiders allow the user to customize the jaw coupling's performance. Selecting a soft spider will give the jaw coupling the greatest dampening characteristics, while a hard spider will provide the greatest torsional stiffness and strength. All jaw coupling spiders are press fit onto a curved jaw profile, assuring zero backlash operation. The curved jaw profile concentrates the forces to the center of the spider's limbs, improving the effectiveness of the elastomer material. Raised contact points on the spider limbs help maintain proper spacing between the two hubs, assuring electrical isolation and full angular misalignment capabilities. The jaw coupling is considered fail safe because, if the spider fails, the jaws of the two hubs interlock allowing direct power transmission, allowing the application to be safely shut down for maintenance.

Features of TS2 curved jaw coupling:

1.Coupling assembled by pressing a polyrethane sleeve into hubs on both sides

2.Can absorb vibration,parallel,angular and axial misalignments

3.Resistance to oil and electrical insulation

4.Identical clockwise and anticlockwise ratational charateristics

5.Two different hardness sleeves are avaible

6.Set screw type

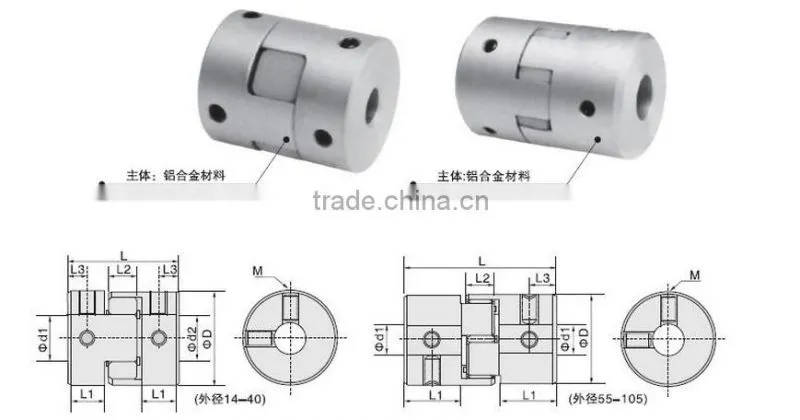

Model

Φ d1Φd2
Bore diameter

ΦD

L

L1





L2

S

L3

M

Wrench Torque
N·m



TS2-14

2 3 4
5 6 7

14

22

7

6

1.0

3.5

M3

1.0



TS2-20

4 5 6
7 8 10

20

30

10

8

1.0

5.0

M4

1.3



TS2-25

4 5 6 6.35 8
10 12 14 16

25

34

11

10

1.0

5.0

M4

1.5



TS2-30

8 9.525 10
12 14 16

30

35

11

10

1.5

5.0

M4

1.7



TS2-40S

14 16 19
20 22 24

40

55

19.5

12

2.0

10

M5

4



TS2-40

14 15 18 19
20 22 24

40

66

25

12

2.0

10

M5

4



TS2-55

14 16 19
24 25 28

55

70

30

14

2.0

10

M5

4



TS2-65

19 20 24 28
30 35 38

65

90

35

15

2.5

15

M8

15



TS2-80

24 28 30 35
38 40 45

80

114

45

18

3.0

15

M8

15



TS2-95

30 35 38 40
45 50 55

95

126

50

20

3.0

20

M8

15



TS2-105

35 40 45
50 55 60

105

140

56

21

3.5

20

M8

15





Model

Rated Torque
(N·m)

Max.Torque
(N·m)

Max.Rotational Frequency
(rpm)

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Parallel misalignment
mm

Angular misalignment

Axial misalignment
mm

Mass
g

TS2-14

1.1

2.2

19000

5.9×10-4

46

0.02

1.0

+0.6
0

26

TS2-20

2.8

5.6

17000

6.7×10-4

55

0.02

1.0

+0.6
0

37

TS2-25

6.0

12.0

16000

7.6×10-4

63

0.02

1.0

+0.6
0

42

TS2-30

6.5

13.0

15000

8.5×10-4

72

0.02

1.0

+0.6
0

46

TS2-40S

32

64

13000

9.4×10-4

500

0.02

1.0

+0.8
0

140

TS2-40

32

64

13000

1.1×10-3

550

0.02

1.0

+0.8
0

148

TS2-55

46

92

10500

4.4×10-3

1500

0.02

1.0

+0.8
0

350

TS2-65

109

218

8300

9.0×10-3

2800

0.02

1.0

+0.8
0

572

TS2-80

135

270

7000

1.8×10-2

3500

0.02

1.0

+1.0
0

950

TS2-95

260

520

6000

2.0×10-2

4600

0.02

1.0

+1.0
0

1800

TS2-105

430

860

5500

3.2×10-2

5800

0.02

1.0

+1.0
0

2400
