Disc Coupling

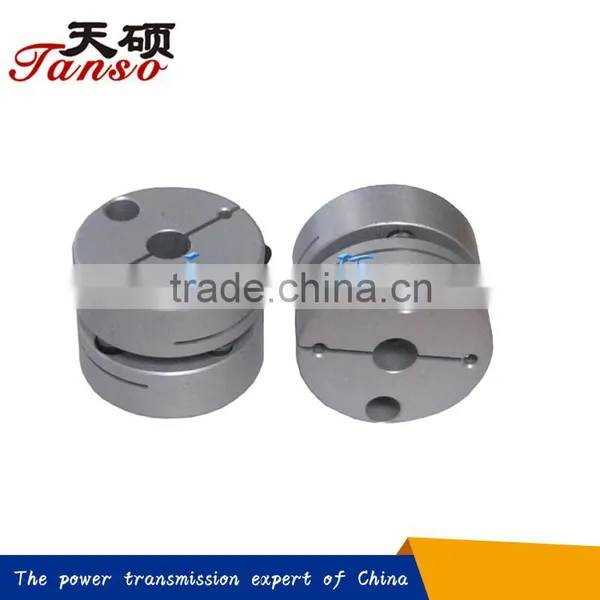

Disc Coupling thumbnail-1
Disc Coupling photo-1
US$ 5 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Structure:
Disc
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Cangzhou Tanso Coupling Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Disc
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Aluminium
Brand Name Tanso
Place of Origin Hebei, China
Model Number TS-3

disc couplings :

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

Features of TS3 mini disc coupling:

1.High torque capacity and excellent response

2.Zero backlash

3.Stainless steel discs absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Clamp type

6.For servomotor,stepmotor connection

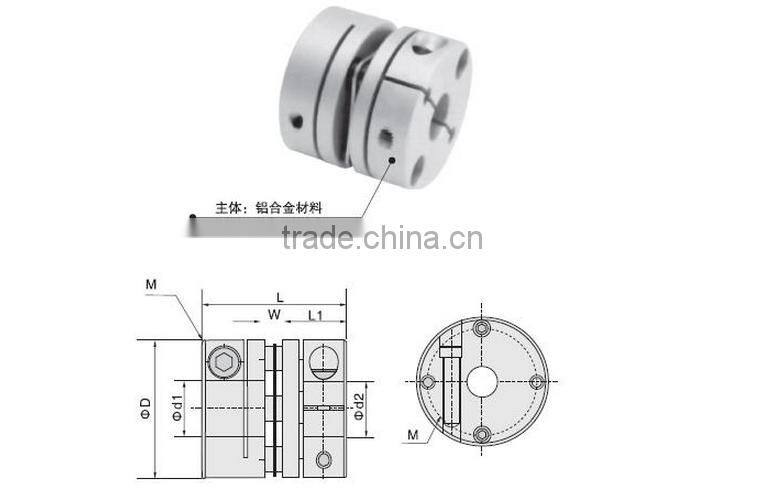

Fundamental dimensions

Model

Φ d1Φd2

 Bore diameter

ΦD

L

F





L1

M

Wrench Torque
N·m



TS3-26

5 6 8
9.525 10

26

25.5

2.5

11.5

M3

1.5



TS3-34

8 9.525 10
11 12 14

34

31

3.1

14.1

M4

1.5



TS3-39

10 11 12
14 15 16

39

34.1

4.1

15.0

M4

2.5



TS3-44

11 12 14
15 16 19

44

34.5

4.5

15.0

M4

2.5



TS3-56

14 15 16 19
20 22 24

56

45.0

5.0

20.0

M5

7.0



TS3-68

19 20 22
24 30 35

68

54.0

6.0

24.0

M6

12



TS3-82

24 28 30
35 38 40

82

68.0

8.0

30.0

M8

16



Parameters



Model

Rated Torque
(N·m)

Max Torque
(N·m)

Max Rotational Frequency
(rpm)

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Parallel misalignment
mm

Angular misalignment

Mass
g

TS3-26

1.4

2.8

10000

1.8×10-6

690

1

±0.2

24

TS3-34

2.8

5.6

10000

7.2×10-6

1650

1

±0.2

46

TS3-39

5.8

11.6

10000

1.8×10-5

2500

1

±0.2

78

TS3-44

8.7

17.4

10000

2.5×10-5

2900

1

±0.2

96

TS3-56

25

50

10000

1.0×10-5

8400

1

±0.2

206

TS3-68

55

110

10000

1.9×10-4

11500

1

±0.2

366

TS3-82

80

160

10000

7.0×10-4

14550

1

±0.2

710
