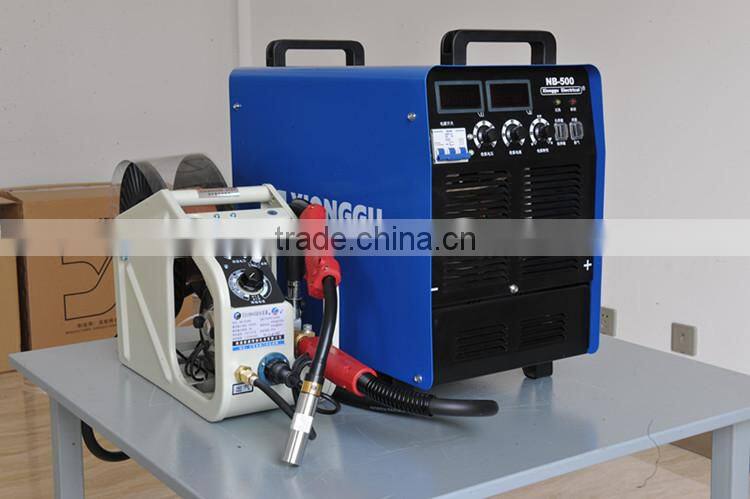

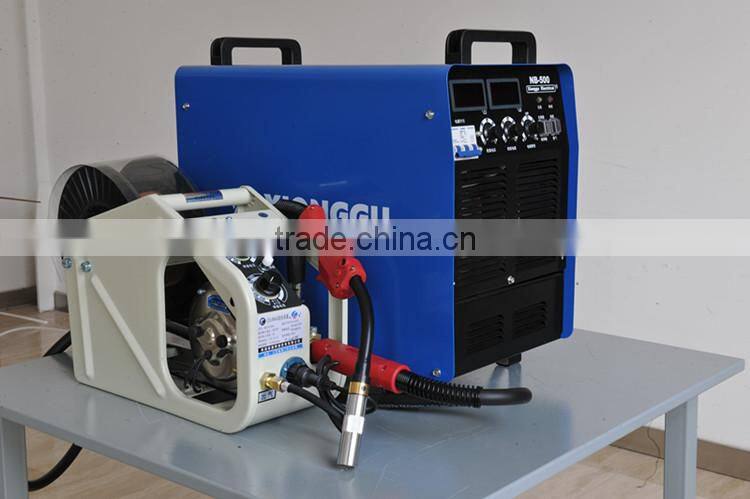

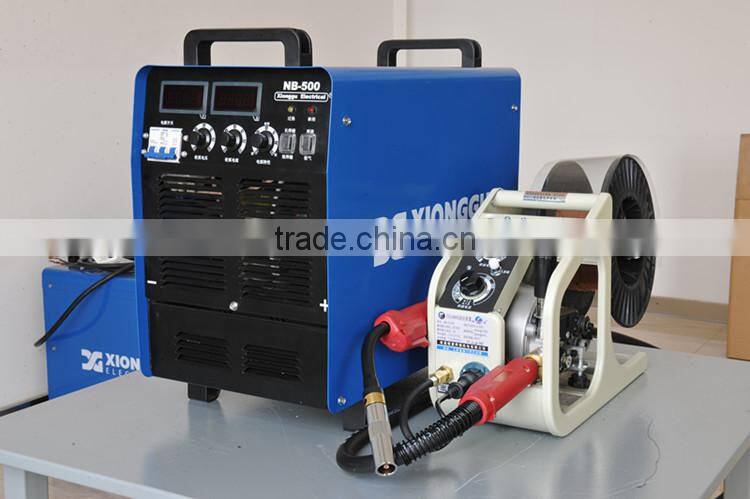

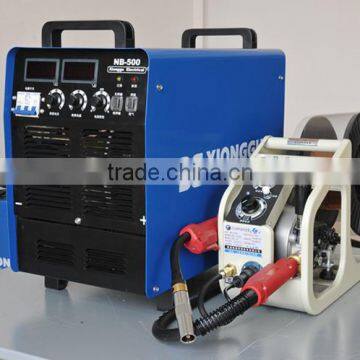

MIG(MAG) Co2 Gas Shield Welding Machine MIG/MMA500

Name: MIG(MAG) Co2 Gas Shield Welding Machine MIG/MMA500
Brand: XIONGGU
SKU: 114567911
Availability: InStock

Chengdu Xionggu Jiashi Electrical Co., Ltd.

US$ 1,000 - 1,200 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Sichuan, China

Brand Name:

XIONGGU

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai /Tianjin /Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Sichuan, China

Brand Name XIONGGU

Model Number NB-500

Dimensions 312*569*428mm

Weight 41kg

Usage Welding

Voltage 39V

Power(W) 24.4kVA

Certification CE CCC ISO

Warranty one year

After-sales Service Provided Overseas service center available

Processes:MIG/MAG

Working Conditions:Ambient temperature -10~40℃;Altitude 1000m.

IP Rating:IP23

Accessories:Wire feeder, MIG/MAG welding torch.

Features:

IGBT inverter power source with soft switch, 25% electricity saving compared to thyristor rectifier welding machine with the same specifications;

Digital preset of current and voltage;

Arc characteristics adjusted via control of waveforms;

Spatter controlled and shaping improved;

Dust-proof, sand-proof, water-proof and vibration-proof design;

Good electromagnetic compatibility.

Main Technical Parameters

Model	NB-350	NB-500
Product ID	4051010000	4050010000
Input Power Phase/Voltage/Hertz	3 phase 380V±10% 50-60Hz
Rated Input Power	13.7kVA	24.4kVA
Rated Input Current	21A	37A
Rated Output Current/Voltage	350A/31.5V	500A/39V
Output Current Range	60-350A	60-500A
Output Voltage Range	17-31.5V	17-39V
Rated Duty Cycle	60%
Max. Open-circuit Voltage	70V	73V
Cooling	Air-cooling
Weight	36kg	41kg
Dimensions(W×D×H)	285mm×478mm×405mm	312mm×569mm×428mm
