Flat UV Curing Machine With Drying System Equipment TM-300UVF

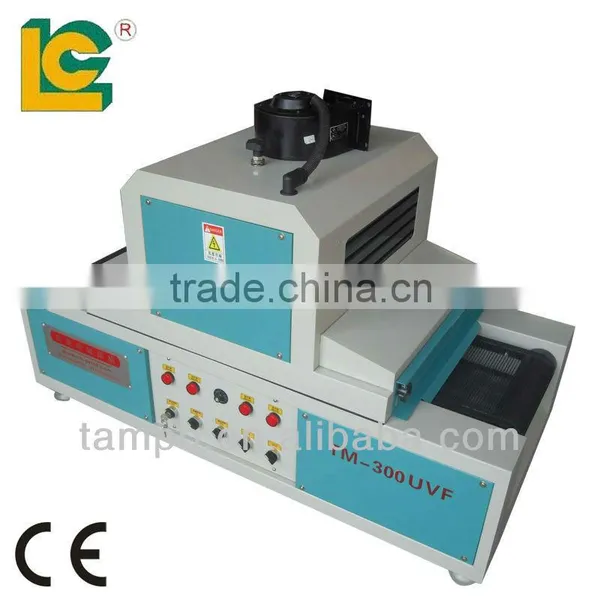

Flat UV Curing Machine With Drying System Equipment TM-300UVF photo-1

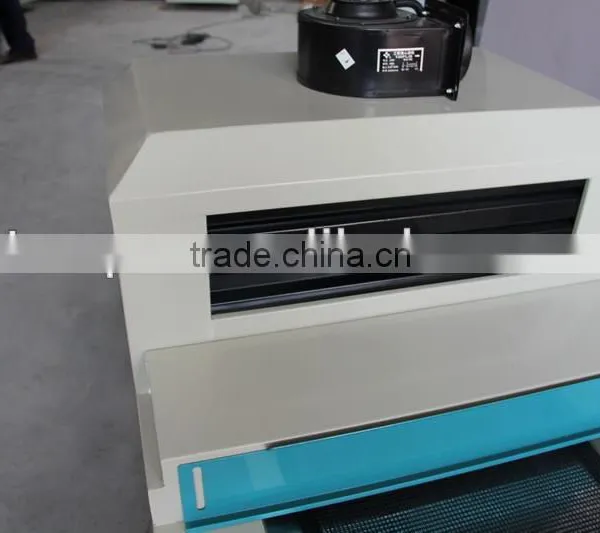

Flat UV Curing Machine With Drying System Equipment TM-300UVF photo-2

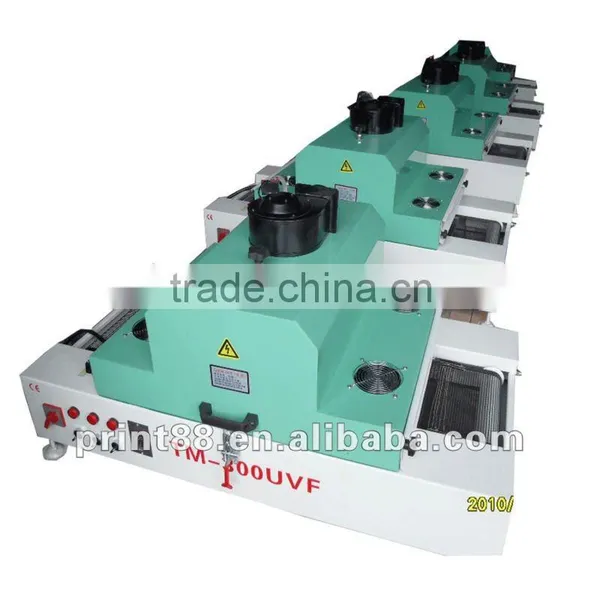

Flat UV Curing Machine With Drying System Equipment TM-300UVF photo-3
US$ 1,500 - 1,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, UV curing machine
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, UV curing machine
Place of Origin Guangdong, China
Brand Name LC
Model Number TM-300UVF
Voltage AC110V/220V
Power(W) 35W, 4kW
Dimension(L*W*H) 1300*320*750mm
Weight 140KG, 140kg
Certification CE
Warranty one year, 1 year
After-sales Service Provided Engineers available to service machinery overseas

Product Description



Product name

Flat UV Curing Machine with drying system equipment TM-300UVF

Model No

TM-300UVF

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Suit to  UV drying , Paper UV PRITNING  ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying , paper UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s

Advantage

1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;
5. Tabletop working and save room area

Parameter

1. Model  NO. TM-300UVF
2. max product width: 300mm
3. max product length:1200mm

4. UV Process shine area: 300×400mm
5. UV drying conveyer speed: 0-10m/min
6.UV curing Lamp power:2KW *2 PCS/
7. conveyer belt size:1200*300 (L*W)
8. UV light power supply: 380V/50 HZ
9.UV Curing Machine size: (L*W*H)1300×320×750mm

Usage

Electrons,hardwares, autos, toys, gifts, Plastics, household appliances, artware, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, ect, industrial field.

Free fittings



1Set/Sets

customer

USA, UK, Germany, Spain, South Africa,

Australia,Indonesia,Malaysia, France, India,Mexico,Brazil etc

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case/wooden case/ as required

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment

term



100% T/T in advance(negotiation)
