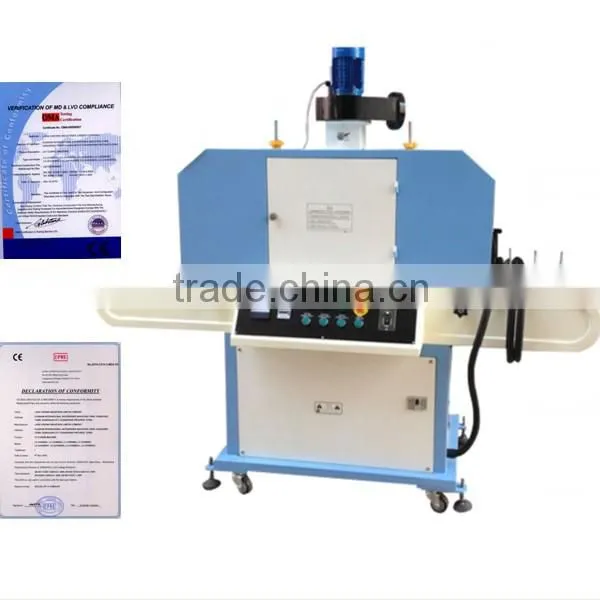

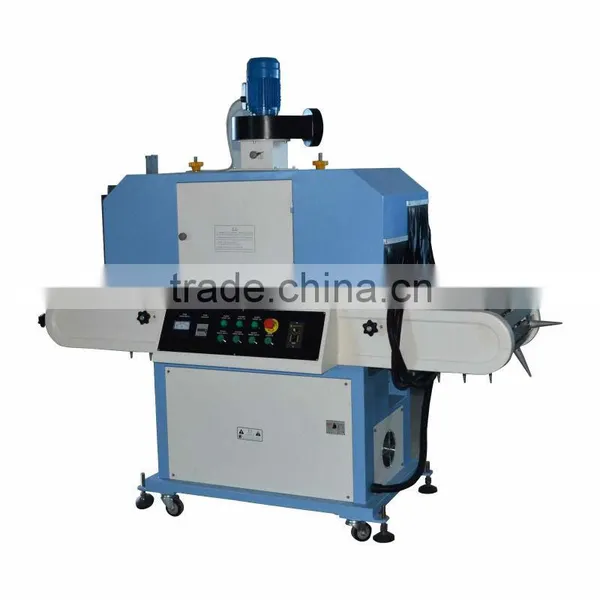

UV Drying Machine With UV Dryer for Plastic Cups/bottles UV-4000S2

UV Drying Machine With UV Dryer for Plastic Cups/bottles UV-4000S2 photo-1
UV Drying Machine With UV Dryer for Plastic Cups/bottles UV-4000S2 photo-2
UV Drying Machine With UV Dryer for Plastic Cups/bottles UV-4000S2 photo-3
UV Drying Machine With UV Dryer for Plastic Cups/bottles UV-4000S2 photo-4
UV Drying Machine With UV Dryer for Plastic Cups/bottles UV-4000S2 photo-5
UV Drying Machine With UV Dryer for Plastic Cups/bottles UV-4000S2 photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, UV curing machine
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, UV curing machine
Place of Origin Guangdong, China
Brand Name LC
Model Number UV4000S2
Voltage AC110V/220V
Power(W) 5kw, 5kW
Dimension(L*W*H) 2200*4500*1650mm
Weight 380kg, 380kg
Certification CE
Warranty one year, 1 year
After-sales Service Provided Engineers available to service machinery overseas

Product Description



Product name

UV drying machine with UV Dryer for Plastic cups/bottles UV4000S2

Model No

UV4000S2

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

LC-4000UVS2 UV Curing  machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles. By adjusting its lighting angle, it can also be used in the UV Ink printing cure of flat substrate, Stainless steel conveyer to resist High Temperature. Stepless speed adjustment to match with diffrent bottles

Advantage

1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;
5. Tabletop working and save room area

Parameter

1.Max UV curing   round bottle  high :320mm
2.Max  UV curing Products width  :  400mm
3. UV Curing  bottle diameter
: 25-100mm
4. curing size of workpiece: Cylinder  products :320*400mm
5.Conveyor speed:0~10m/min ;
6.. (United Kingdom)UV lamp power:4KW
7.  UV Drying products  speed:1800~3000PCS/HR
8.Total power:5KW
9..Machine dimension: L:2200mm W:600mm H:1700mm

Usage

Electrons,hardwares, autos, toys, gifts, Plastics, household appliances, artware, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, ect, industrial field.

Free fittings

1Set/Sets

customer

USA, UK, Germany, Spain, South Africa,

Australia,Indonesia,Malaysia, France, India,Mexico,Brazil etc

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case/wooden case/ as required

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment

term



100% T/T in advance(negotiation)
