Steel Shutter Door Roll Forming Machine1.simple structure and beautiful outlook
2.good service
3.high efficiency

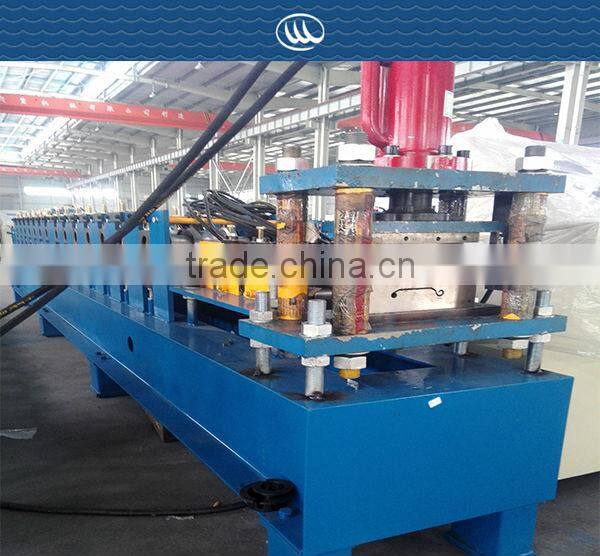

Steel Shutter Door Roll Forming Machine
Roller Shutter Machine can produce steel shutter door slats in galvanized sheet, pre-painted sheet or stainless steel sheet.Steel shutter door slats are used as the door for working plants and shops because of durable use, space saving, low cost and low noise.The complete sliding door guide rail roll forming machine line includes decoilers, main machine, computer controlling system and run out tables. Our machine are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the guide rail roll forming machine produce it automatically. The machines are easy to operate and running stable.
Specifications
| Material specification | galvanized steel. |
| Material Thickness | 0.3 mm to 0.7mm. |
Max.forming speed |
8-12 m/min |
| Hydraulic station power | 5.5kw. |
| Yield stress | 235Mpa(33KSI) ~ 345Mpa (50KSI). |
| Roll forming Speed | 12 m/minute. |
| Cutting Tolerance | +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm). |
| Manual Uncoiler | Max. Capacity: 5000kgs. |
| Coil inner diameter | 508mm. |
| Voltage | As per customer's request. |

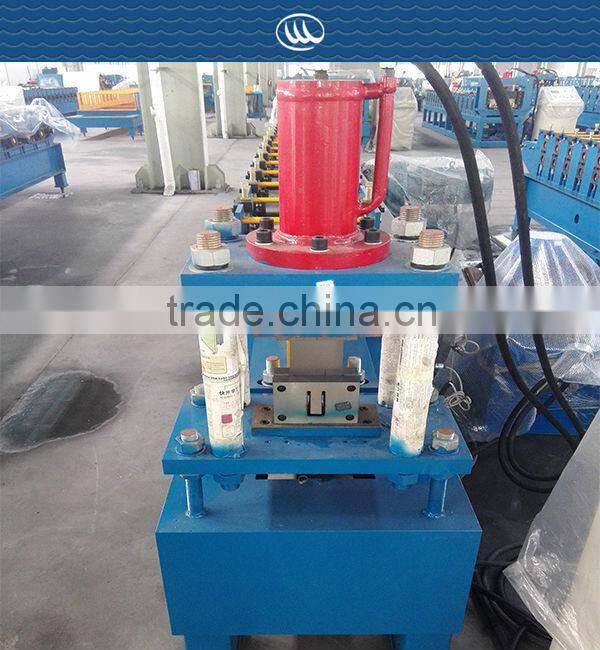

| Type of cutting | Roll-formed and length-set profile cutting. |

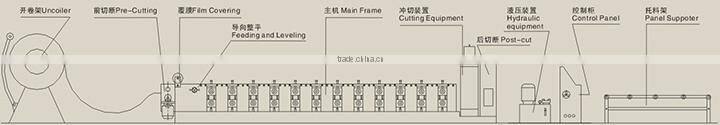

Working Flow
Decoiler - Feeding & Guiding - Leveling - Roll forming- Hydraulic Cutting – Stacking
Material of Main Equipment
| Roller Material | High grade No.45 forged steel, coated with hard chrome. |
Active Shaft Material |
High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. |
| Electric Elements |
PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
| Cutter blades | Cr12 mould steel with quenched treatment. |
Our company,Zhejiang Willing International Co.,Ltd is a professional supplier in the field of steel structure construction, especially good at making Forming Machine.
If u have any question,pls feel free to ask me.
Skype:jenny.ma45
Mobile:+86-187-6737-1592
