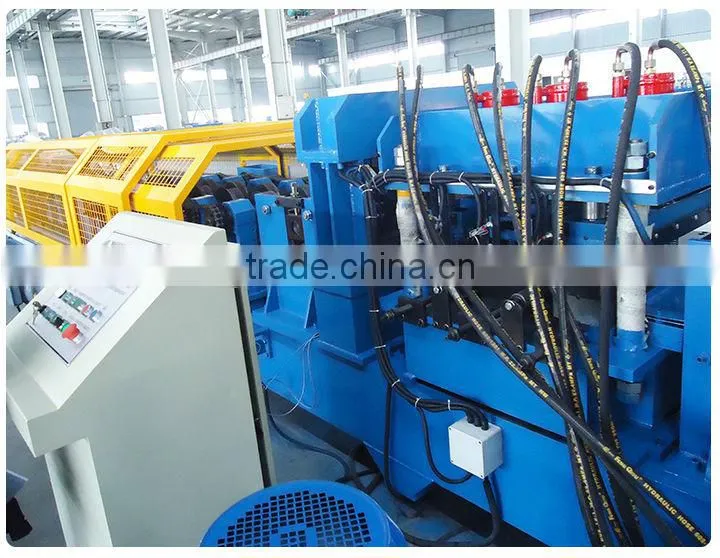

metal roof ridge cap roll forming machine
The Tile Ridge Cap Machine is mainly used in the production of ridge tiles. This equipment is made up of eight main parts: feeding, guiding, transmission, roll forming, pressing, hydraulic station, control station and run out table. The machine is artistically made and transmits smoothly at a low noise. The suitable material is pre-painted or galvanized steel sheet at thickness 0.3-0.7mm. It is used as the tile ridge cap of modern buildings with better anti-press and anti-bending performance. Its length is set according to customer’s requirements and transportation situation
We do Detail, Machine Parameters
| ridge tile machine | |
Material type |
Carbon steel or galvanized steel |
Material thickness (mm) |
0.3-0.7 |
Material yield stress (Mpa) |
230~300 |
Max. forming speed (m/min) |
2-3 |
Roll material |
PPGI; Steel with chorme treament |
Roller driven type |
Chain transmission |
Controller & operation |
PLC& touch screen and button |
Hydraulic system pressure (Mpa) |
20 |
Hydraulic station motor power (KW) |
5.5 |
Main motor power (KW) |
18.5~22 |
Total power (KW) |
24~27.5 |
Controlling system |
PLC( Mitsubishi) |
Total weight (Kg) |
About 80100 |
Dimension ( Length/Width/Height ) |
about8000×1550×2000mm |
Quanlity |
Description |
De-coiler |
1 set |
Levelling device |
1 set |
Roll forming part |
1 set |
Straighting device |
1 set |
Hydraulic mold cutting |
1 set |
Panel support |
1set |
Product discharge rack |
1 set |
PLC |
1 set |
Fundamental Structure and Working Principal
Feeding the Machine
Feeding is to put the coil sheet into the axis of the uncoiler. Take off the 3 leaves from the mandrel, put the coil through the mandrel, tighten the mandrel and put on the leaves.
The transmission of the machine
The transmission of the machine is achieved through the cycloidal reducer to the carrier wheel of the lower rollers, then, through the chains, the carrier wheel to the rollers.
The adjustment
Using pre-painted cold rolled steel sheets with 333mm width and 0.3-0.7mm thickness. Before the feeding of the pre-painted steel sheet into the roller, adjust the space between the upper roller and lower roller, first make the lower roller leveled, then line up the two rollers and then adjust the space between the upper and lower roller to be the thickness of the sheet plus 0.25mm. If the finished ridge cap has ripples, widen the space between the two rollers until the ridge cap turned out to be required (The space is usually adjusted before the machine leaves the factory)
Tile Press Unit
Its impact mould is made of refined steel with feature of high hardness, anti-attrition and precision. It is easy to adjust the position of the mould: up and down, left & right, forward & backward according to the position of tile ridge cap on machine. So the tile ridge caps will not change its shape.
As hydraulic is the main power for pressing, there will not be a sudden impact during the pressing process, thus ensure the integrity of the tile ridge caps.
After pressing, not only strength the hardness and stiffness of the material, but also improved the outlook of the products. But as pressing is deformation process which may destroy the painted surface of the material, suggest covering a plastic film on the surface, so it will not be destroyed during pressing and transportation.

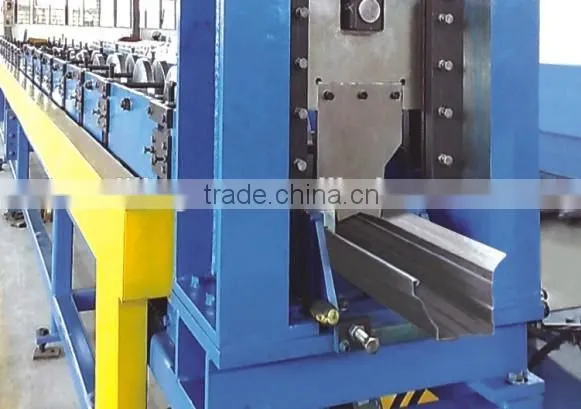

Cutting System
There are two ways in cutting of the products: automatic and manual. The automatic way is used is mass production after the length of the ridge cap is determined. The manual way is only used in testing. Before the operation of the cutting system, you must check the oil tank. Hydraulic oil level must reach to the upper line, start the oil pump and set the performance pressure to 14-15 Mpa, and also test the movement of the equipment to be normal. When the performance length is reached, the cutter will automatically cut: the machine stops, cut the sheet, touches the lower switch, the blade moves up, touches the upper switch, cutting finished, and the machine starts again.

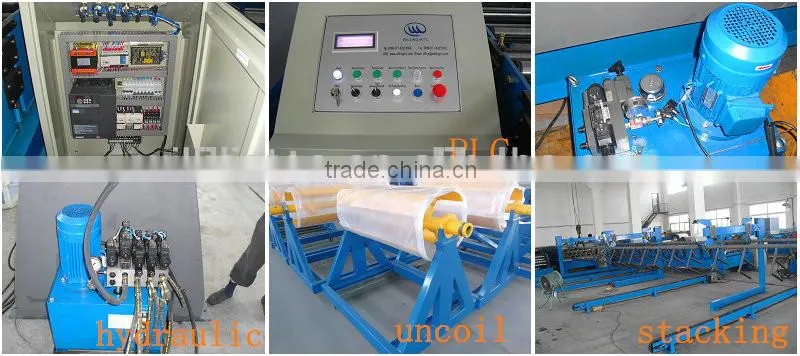

We do you like,Optional components
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
Because of the long trip and your super trust, we will make sure Purlin roll forming machine can be
appeared in front of you in fully good condition, you will fall in love with it with first glimpse!
Product Show
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components.
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
Production capacity
we do have a big production capacity
The quality control
one of our principles: we will not give customer not perfect products,absolutely.
Designed and developed
We do have the specialized design team.
Export market
Main Markets:South Asia,Southeast Asia,Africa,Central America,South America and so on.
