auto tile making machine

glazed tile roll forming machine

  1. Atomatically

   2. Mking and designingl kinds of roll forming machine.

  3. CE, ISO, SGS , BV report
  4.Top quality standard

  5.Life long professional service

1.Technical parameter:

Material of Main Equipment

Roller MaterialHigh grade   No.45 forged steel, with digital-controlled procession,Panted with hard chrome.

Active Shaft Material    High grade No.45 carbon wrought steel,which can improve the integrated mechanic

Electric Elements       PLC control panel, transducer imported from Mitsubishi of Japan.

Cutter blade            Cr12 mould steel with quenched treatment.

Component and Function

Coil Feeding Equipment Consists of one uncoiler with capacity of 5000kgs and its base.

Guiding Equipment     Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.

Mainframe Transmission Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.

Roll forming system:    The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.The rollers are surface-chromeplated after being machined by the exact machine tool.

Post Cut Equipment     The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting.

Hydraulic Station       Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

PLC Control Panel     The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine are imported from Mitsubishi company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be choosed operation by manual or automatically.

Supporter Table        To support the finished panels. The quantity we supply is 2 pieces with length 3000mm, it can support panels with 10000mm at normal condition.

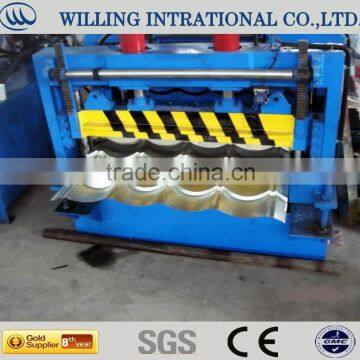

 product shoow

1. If any parts go broken and not artificial damage, we will send you new ones for free.

2.If buyers visit our factory and check the machine, we will teach you how to install and use the

machine, and also train your workers/technician face to face.Without visiting,we will send you user manual and video to teach you to install and operate.

3.When need the technician to go abroad, we will arrange the technician.But the buyer should take all the cost, including Visa, Roundtrip ticket, If buyer needs our technician to go to your local factory,please arrange board and lodging and uitable accommodation and pay the service fee to the technician with $150/days.

1), Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2), Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly

3), Q: How does your factory do regarding quality control?
A: Quality is priority. WILLING People always attach great importance to quality control from the very

beginning to the end of the production.  Every product will be fully assembled and carefully tested before

it's packed for shipment.

4), Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name

components

5), Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers
