Please take few minutes to have a look in detail as following. Thank you!

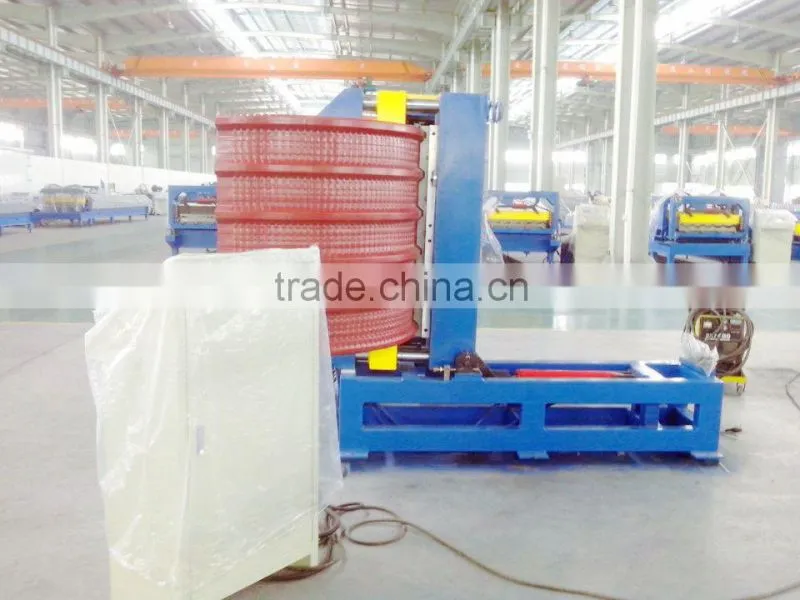

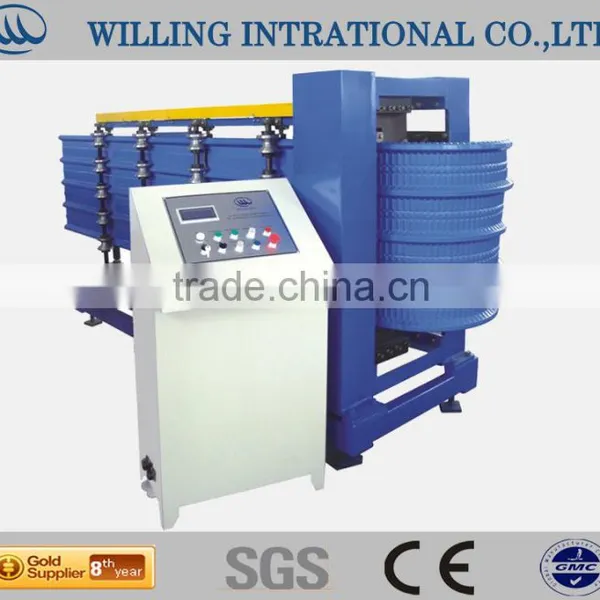

Steel sheet curving forming machine
Product Description
I. Introduction
This machine is mainly used in the production of pressing & bending sheets. This equipment is made up of five main parts: guiding , transmission, pressing&bending, hydraulic station, control station.
There are two ways in pressing&bending of the products: automatic and manual. The automatic way is used is mass production after the length of the sheets is determined. The manual way is only used in testing or feed the first sheet of each new sheet.
Before the operation of the pressing&bending system, you must check the oil tank. Hydraulic oil level must reach to the upper line, start the oil pump and also test the movement of the equipment to be normal.
material: G.I/A.L or colored armor plate | |
Equipment operation |
Automatically |
Voltage |
AC380/50/60Hz or at buyer's request |
Thickness of sheet(mm) |
0.4-0.8 |
Material width(mm) |
1000/1250 |
Formed with(mm) |
Upper layer:L1085 Lower layer:C21 |
Productivity |
0-15m/min |
Producing capability |
3500 m2/8hs |
Diameter of shaft |
70mm |
Dimension of main structure(mm) |
7000x1800x1500 |
Material of rollers |
45# steel with heat treatment and surface is being hard chrome |
Weight |
3000kg |
Total power(kw) |
7kw |
Driven system |
Single |
Power of hydraulic system |
4KW |
Power of main molding core |
4kw(cycloidal planetary gear speed reducer) |
Processing flow
Manual Uncoiler — Entry Beach — Roll Forming Machine — Automatic Shearing Mechanism —
Computer Control Cabinet —Run-out Tables
Galvanized Steel Roof Ridge Cap MakingMachine
HangZhouWilling inernational Co.,ltd located in Jiaxing city of Zhengjiang province and next to 320 National Highway. We are specialized in producing different types of automatic cold roll forming machine for ten years , such roofing tile making line, Shutter and door frame roll forming machine and Automatic partial adjustment C purlin machine.
