HangZhouWilling inernational Co.,ltd located in Jiaxing city of Zhengjiang province and next to 320 National Highway.
We are specialized in producing different types of automatic cold roll forming machine, such roofing tile making line,
Shutter and door frame roll forming machine and Automatic partial adjustment C purlin machine.
steel tile roll forming machine
Technical parameters:
| steel tile rool forming machine | |
Material thickness (mm) |
0.3-0.7 |
Material yield stress (Mpa) |
230~300 |
Max. forming speed (m/min) |
2-3 |
Roll material |
PPGI; Steel with chorme treament |
Roller driven type |
Chain transmission |
Controller & operation |
PLC& touch screen and button |
Hydraulic system pressure (Mpa) |
12 |
Hydraulic station motor power (KW) |
5.5 |
Main motor power (KW) |
4 |
Total power (KW) |
11 |
Controlling system |
PLC( Mitsubishi) |
Total weight (Kg) |
About 8000 |
Dimension ( Length/Width/Height ) |
about6000×1550×2000mm |
station groups |
about18 |
380v /220v or as the requirement of the customer |
|
Quanlity |
Description |
De-coiler (5 ton passive uncoil) |
1 set |
Sheet guiding equipment |
1 set |
Roll forming part |
1 set |
Post cutting equipment |
1 set |
Hydraulic station |
1 set |
Panel support |
1set |
Product discharge rack |
1 set |
PLC |
1 set |
Forming machine detail:
detail
1.Profile drawing:
3.machine catalogue:

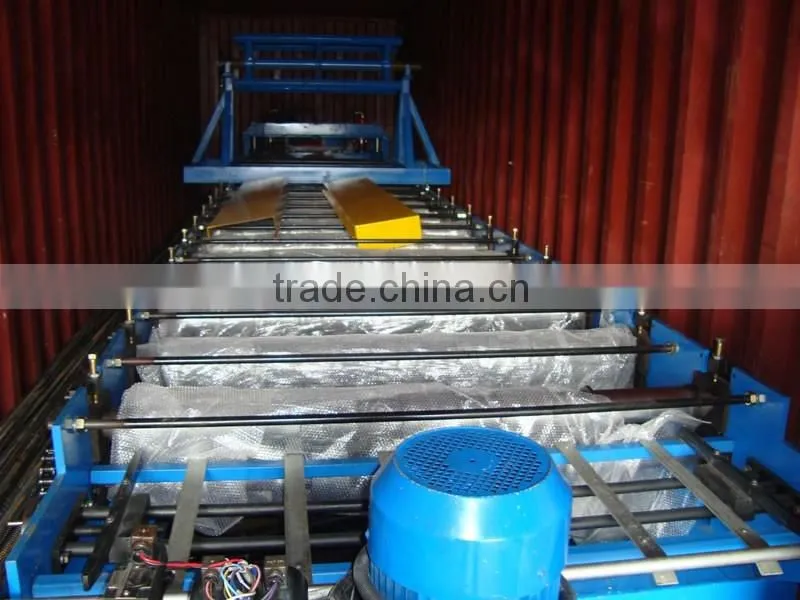

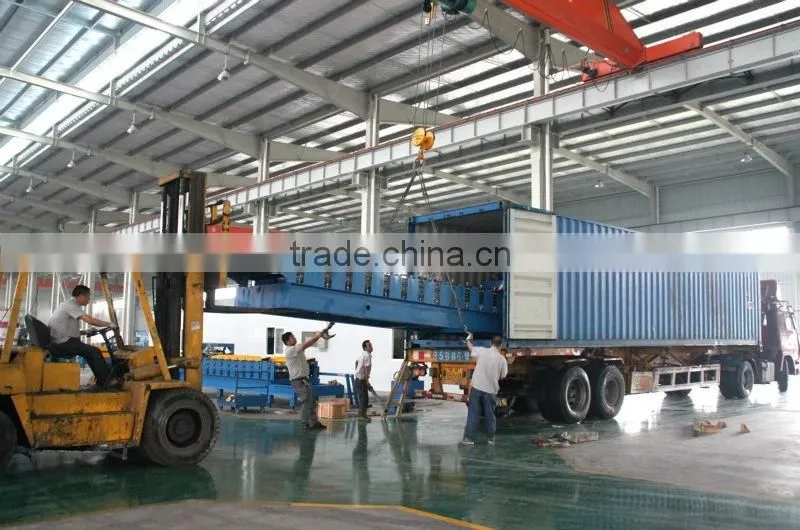

4. We do Your care, Machine Loading
Because of the long trip and your super trust, we will make sure Purlin roll forming machine can be
appeared in front of you in fully good condition, you will fall in love with it with first glimpse!
5.We do our utmost, Why WILLING
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components.
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
