c steel purlin and purlin roll forming machine
production introduction:
C or Z shape purlins are made from hot/ cold rolled steel strips, and straightened, hole punched, cut to length, and roll formed by WLPM series C/Z changeable shape purlin roll forming machine. Through changing, this product line can make the change of the shape C or Z purlin, besides change different sizes of C or Z shape purlin. This change for shape and sizes of C/Z purlin can be realized by automatic mode, or manual adjusting mode.

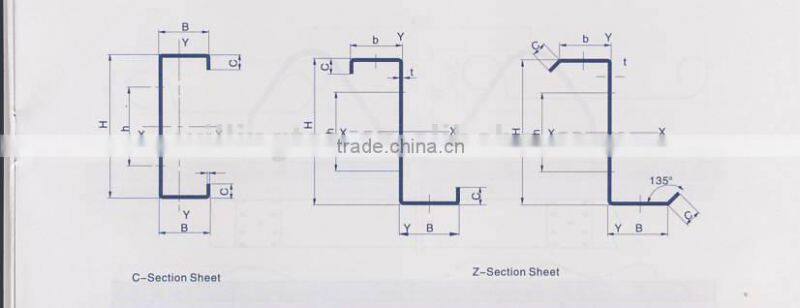

Details of the machine and purlin:
Components of machine:
1.Roller Material: high grade No.45 forged steel, Coating with hard chrome.
2.Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated mechanic feature of the shaft.
3.Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.
4.Other Elements: from famous suppliers in China.
5.Cutter Blade: Cr12 mould steel with quenched treatment.

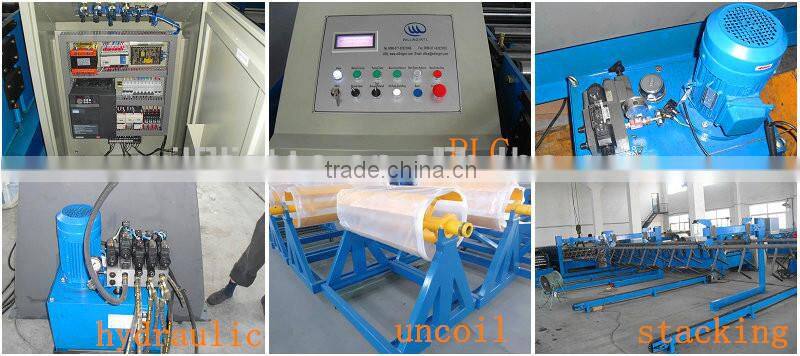

main equipment:
1.5T Hydraulic uncoiler
-- Single head to put the coil
2.sheet guiding
make sure the material is flat
3..Roll forming main machine
-- working speed: 10m—15m/min (not include cutting & punching time)
-- Roll forming: about 10 stations
-- Transmission: by chain
-- Machine adopt wall structure, thickness: 20mm
4.Cutting:
-- Machine adopt hydraulic after cutting
-- Cutting after forming: Cut the sheet after roll forming to required length
-- Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
-- Length measuring: Automatic length measuring
-- Tolerance of length: 3m +/- 1.5mm
5.manual out table:
-- One out table with two support roller
6.PLC Control panel
-- Automatic length measurement:
-- Automatic quantity measurement
-- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
-- Length inaccuracy can be amended easily.
-- Control panel: Button-type switch and touch screen:
7.Hydraulic station
Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
Process flow:
Uncoiling -- Sheet Guiding -- Roll Forming -- Pressing --Measuring Length&cutting --Sheet to Support Table
Because of the long trip and your super trust, we will make sure Purlin roll forming machine can be
appeared in front of you in fully good condition, you will fall in love with it with first glimpse!
The company management
Work details
Export market
Main Markets:South Asia,Southeast Asia,Africa,Central America,South America and so on.
Certificate of the company
We pursue perfectly, because of our hard work, we have obtained many honors.
For us , nothings is impossible to your willing heart.
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components.
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
