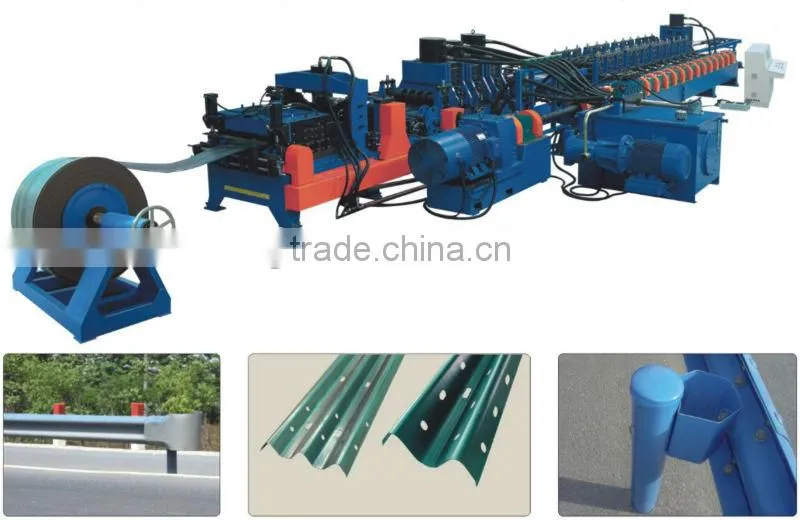

Two Ribs and Three Ribs Highway Guardrail Roll Forming Machine
Introduction

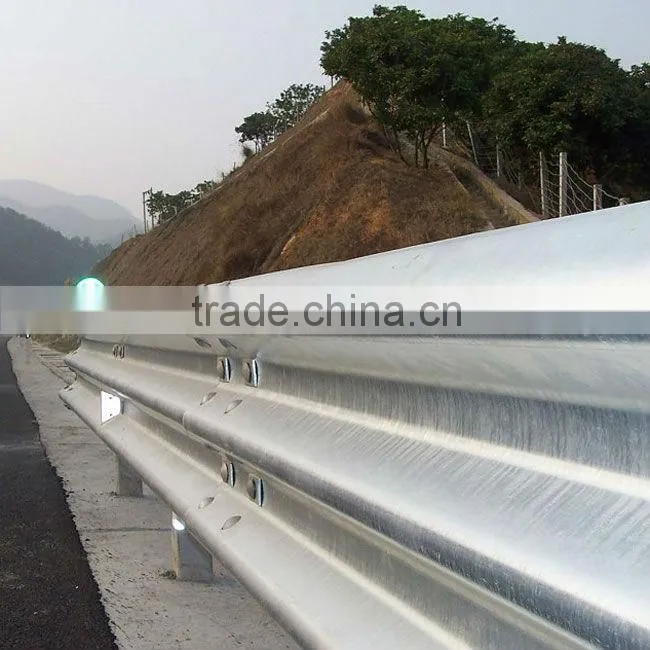

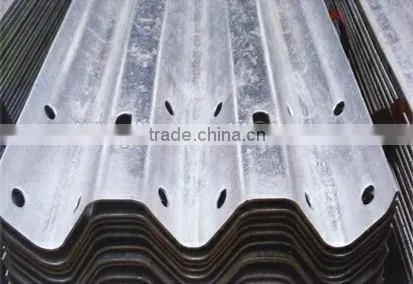

Express road guardrail panel is made from hot rolled steel strips, and straightened, holes punched, roll formed, and cut to length by WLGR series guardrail roll forming machine. The finished products are of many features, such as high efficiency, high automatization, less labor, and etc. This machine integrates the technologies of cold roll forming, punching, automatic stack, and automatic controlling.

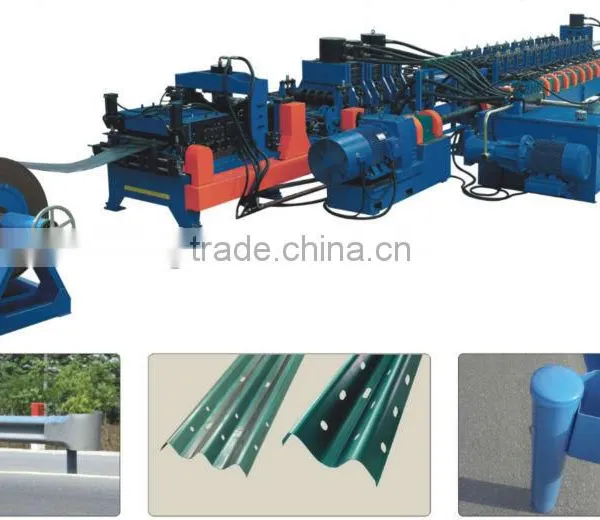

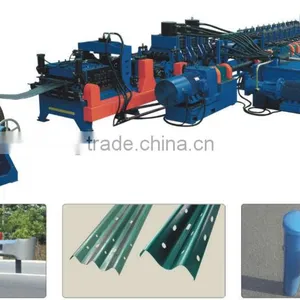

WLGR series guardrail roll forming machine consists of uncoiling system, straightening system, scrap edge cutting, levelling guillotine shearing system, holes punching system, cold roll forming system, cutting to length system, automatic stacker system, electric controlling system, hydraulic system, automatic controlling system, and so on.
Working Flow

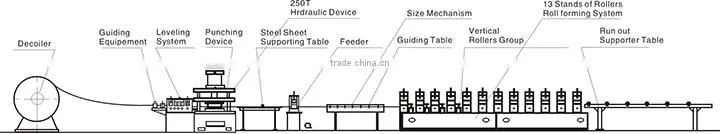

Uncoiling→Sheet Guiding→Straightening &Levelling→Scrap Cutting →Hole Punching→Roll Forming→Cut to Length → Sheet to support table.
Main Technical Parameters
Item |
Parameters |
|
Profile |

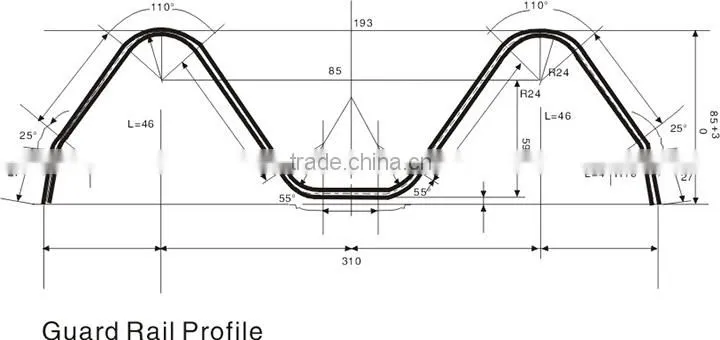

Two ribs and three ribs gardraill |
|
Material |
Type |
Steel strip |
Thickness(mm) |
2.5-4.0 |
|
Yield Strength(mpa) |
230-300 |
|
Max.Forming Speed(m/min) |
20 |
|
Roller material |
D2 |
|
Roller driven type |
Gimbal fransmission |
|
Controller |
PLC |
|
Operation |
Touch screen+button |
|
Hydraulic system pressure(Mpa) |
25 |
|
Cutting System |
Hydraulic Stop Cutting |
|
Length Measurement |
Photoelectricity Encoder |
|
Total weight(Kg) |
About 50000 |
|
Our company,Zhejiang Willing International Co.,Ltd is a professional supplier in the field of steel structure construction, especially good at Roll Forming Machine.
We are willing to service for you!
