rolling shutter machine
a. Main technical parameter:
| Suitable plate | 0.4-1.5mm Alum or steel |
| Working speed | 10-12m/min |
| Stations | 16 sets of rollers |
| Material of roller | 45# advanced steel, plated hard chrome |
| Material of shaft | 45# advanced steel(Diameter: Ø40) |
| Driven | Gear box |
| Main power | 5.5kw |
| Cutting | pneumatic following cutting |
| Material of cutting knife | Cr12,Quench HRC 58-62 |
| Hydraulic Cutting blade | 3kw |
| controlled | PLC |
| Roller Material | High grade No.45 forged steel, coated with hard chrome. |
| Active Shaft Material | High grade No.45 carbon wrought steel, |
| Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. |
| Cutter blades | Cr12 mould steel with quenched treatment. |
| other elements | from famous supplier in china |
Roller Material |
High grade No.45 forged steel, coated with hard chrome. |
Active Shaft Material |
High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft. |
Electric Elements |
PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
Cutter blades |
Cr12 mould steel with quenched treatment. |

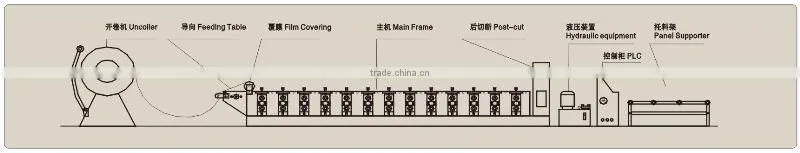

working flow:
Uncoiling the sheet --- Infeed guiding --- Roll forming --- Rectifying the straightness ---
--- Measure length --- Cutting the panel --- panels to the supporter (option: automatic stacker).

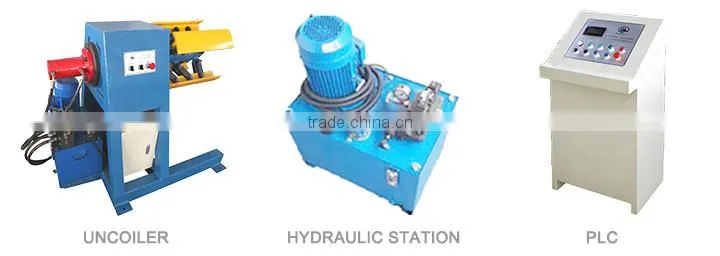

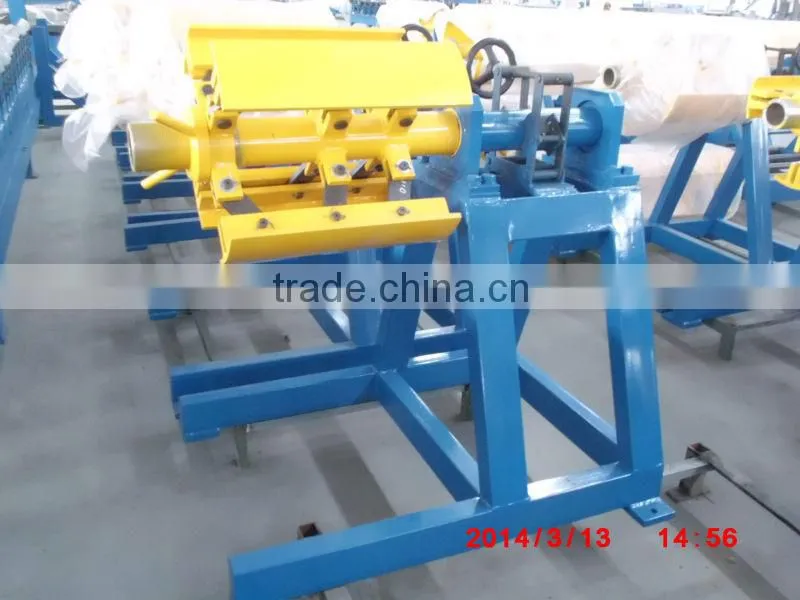

uncoiler
Capability: 1.5Ton
Bound of expand &fight: 450mm—600mm
Way of feeding: manual

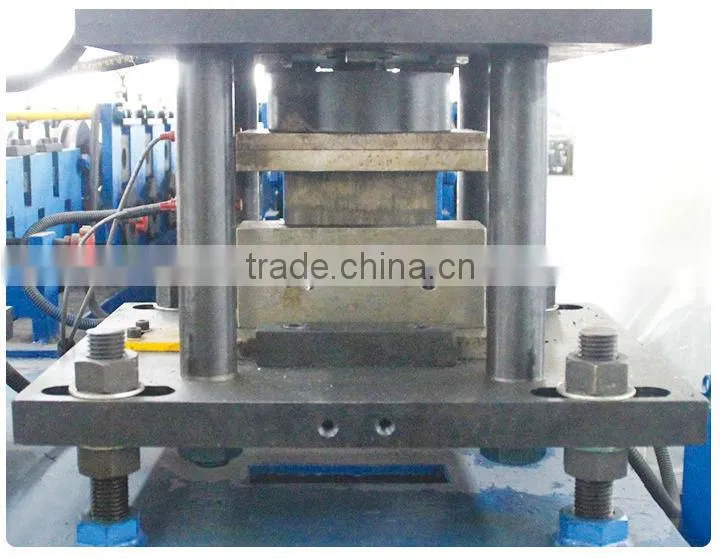

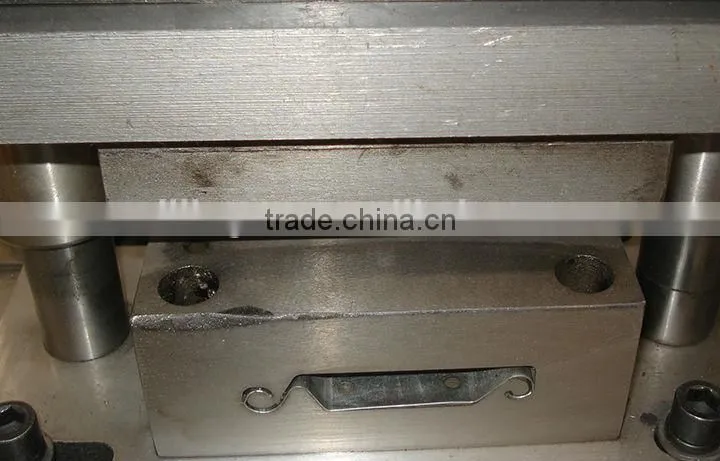

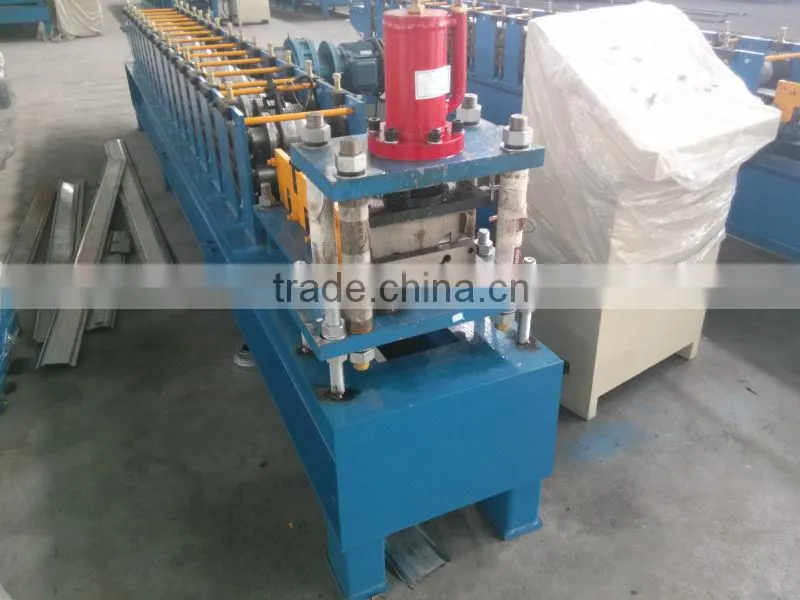

Automatic Tracking Cutter
Cutting type: hydraulic cutting
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade: CR12with heat treatment
Motor power: 4kw
Length measuring: Automatic length measuring
Use imported high grade alloy blade, high quality & precision cutting

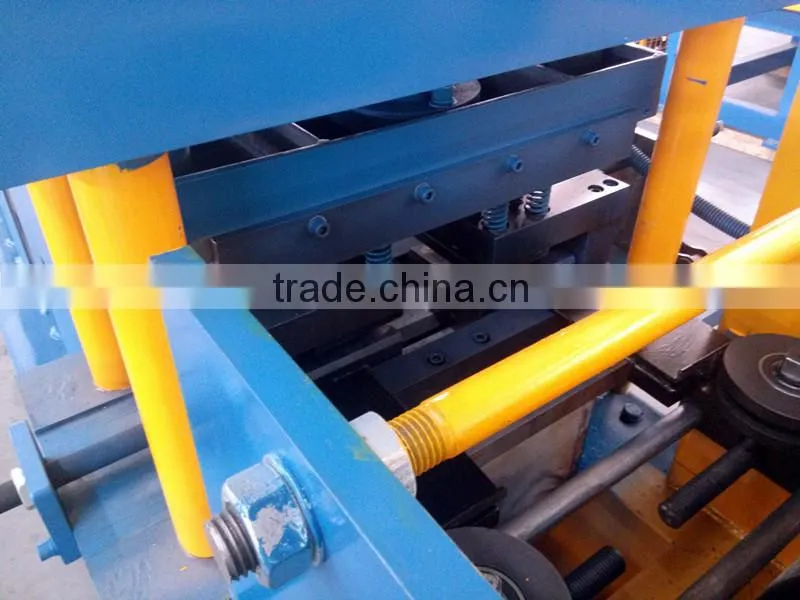

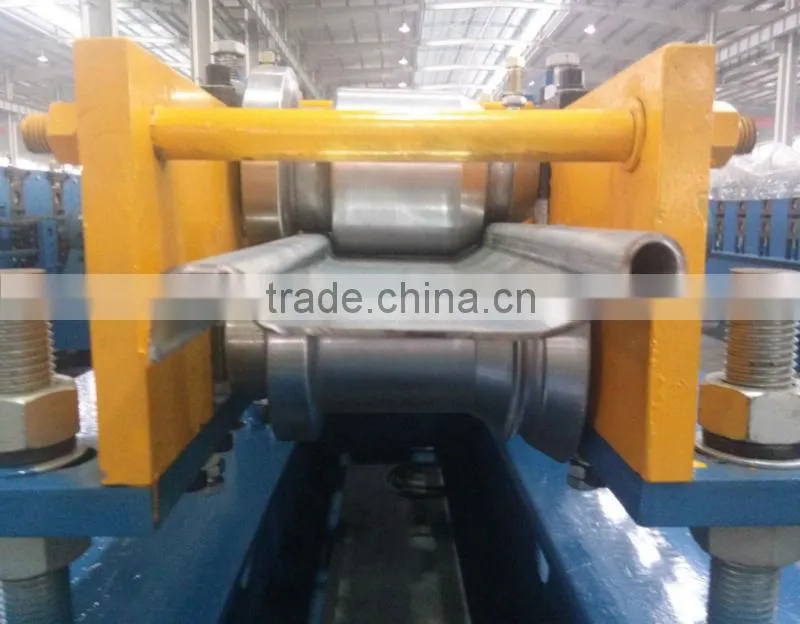

Roll forming main machine
working speed: 8m—15m/min (exclude cutting)
roll station: 14stations
material of roller: 45# forge steel, polished and coated with chrome
material of main shaft: 45# forge steel and quenched hardness 58-62 diameter roller: 60mm
main power: 3kw
forming thickness: 0.5mm—1.0mm
Transmission: chain
structure of frame: H beam steel plate
PLC
PLC: Panasonic,JAPAN
Voltage: 380 V, 50 Hz, 3Phase
Automatic length measurement:
Automatic quantity measurement
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achievedLength inaccuracy can be amended easily.
Control panel: touch screen
Unit of length: millimeter (switched on the control panel)
1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
3. We can make and design all kinds of tile forming machine according to customer's request.
Terms
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
