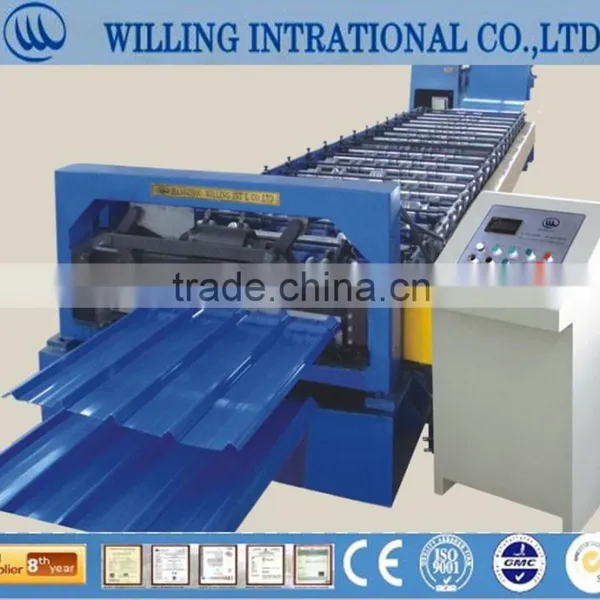

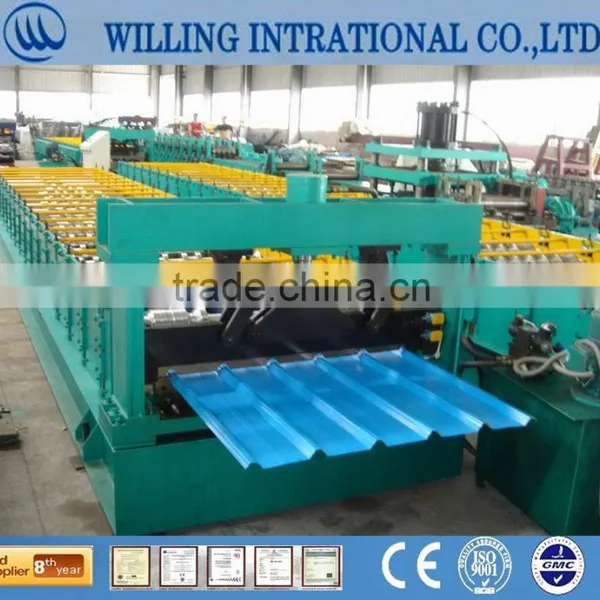

Used Metal Roof Panel Roll Forming Machine
Our company,Zhejiang Willing Technology Co., Ltd is a professional manufacturer engaged in equipments of roofing and wall panel used for constructions. Since its establishment for more than 10 years, we are committed to research, develop and innovate new products continuously, and take the leadership position in the industry with high technological content and engineering level.
1.Technical parameters:
Product Name |
Used Metal Roof Panel Roll Forming Machine |
|
Model |
WLRF |
|
|
Material |
Type |
Pre-painted steel sheet |
Thickness(mm) |
0.2-0.7 |
|
Yield stress(Mpa) |
230-550 |
|
Max. Forming speed(m/min) |
8-12 |
|
Roller material |
45# Steel with chrome treatment |
|
Roller driven type |
Chain transmission |
|
Controller |
PLC |
|
Operation |
Touch screen and button |
|
Hydraulic system pressure (Mpa) |
12 |
|
Hydraulic station motor power |
3 |
|
Main motor power (KW) |
4~5.5 |
|
Total power (KW) |
7~8.5 |
|
Total weight (Kg) |
About 8000 |
|
2. Components of machine:
galvanized roofing sheet roll forming machine
1) Roller material: high grade no. 45 forged steel, plated hard chrome on the surface
of roller with thickness 0.05mm
2) Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm
3) Cutter blade: Cr12 mould steel with quenched treatment
4) Electric elements: control system with PLC model S7-200, Siemens transducer with
ABB control panel with TP170, Siemens. It can input 10 sets of spec at one time
5) Oil tank model of hydraulic system: CB-E310
3. Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

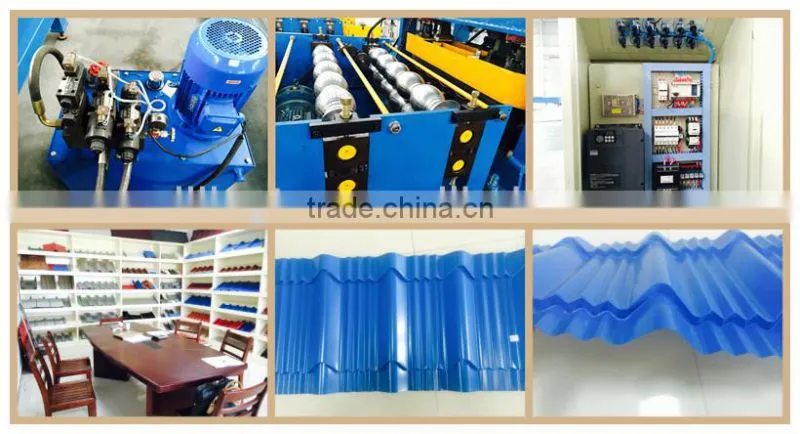

4. Details of the machine and wall panel
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable, maintenance-free.
3. We can make and design will kinds of roll forming machine according to customer's request.
Container packing of the line suitable for overseas shipping.
1.We provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost,
our company Willing International Co.,Ltd is a professional manufacturing & exporting company for below products:.
(1)all kinds of Steel Roll Forming machines
(2)Steel roofing prducts
(3)Galvanized Steel Coil,Pre-painted Steel Coil
Products show
1, Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2, Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly.
3. Q: How does your factory do regarding quality control?
A: Quality is priority.WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4, Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components
5, Q: Can you do a business plan for a start-up company?
A: On request, at a fee.
6, Q: Do you have a warranty on your machines?
A: 12 month warranty from time of loading.
7, Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.
