Metal Embossing machine
Technical parameters
Material Spec: galvanized or pre-painted steel coil at strength 550Mpa
Thickness: 0.37-0.45mm
Coil width: 1200mm
Pattern: As customer’s sample
Working Speed: 0-15m/min. adjustable
Power Requirement: main motor power 7.5Kw
Voltage: 380V/3phase/60HZ
Embossing roller material: 40Cr
Embossing roller diameter: 280mm
Pressing roller material: #45 steel
Pressing roller diameter: 300mm
Run direction: both direction
Machine dimension: about 1700*1600*1600mm
Total weight: about 3500kg
Work flow
Fix coil to the uncoiler→fix coil sheet to the moving dolly→moving doly move to the uncoiler→
Moving dolly lift to the same center with uncoiler→moving dolly move more closely to uncoiler arms of uncoiler→expanse(coil move to the uncoiler) →moving dolly return→axis of uncoiler rotate(coil sheet comes out)

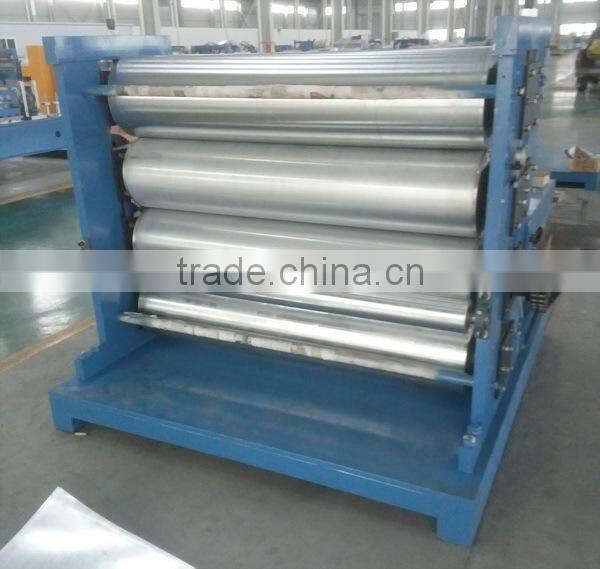

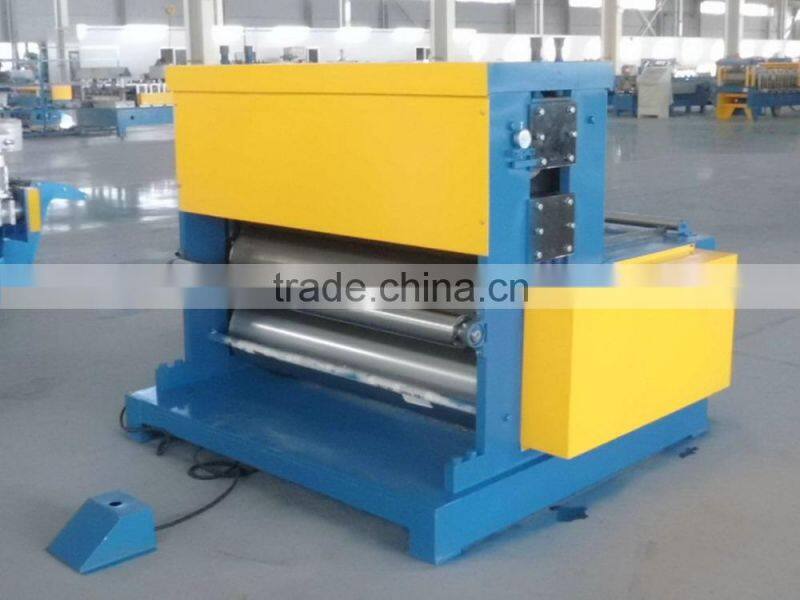

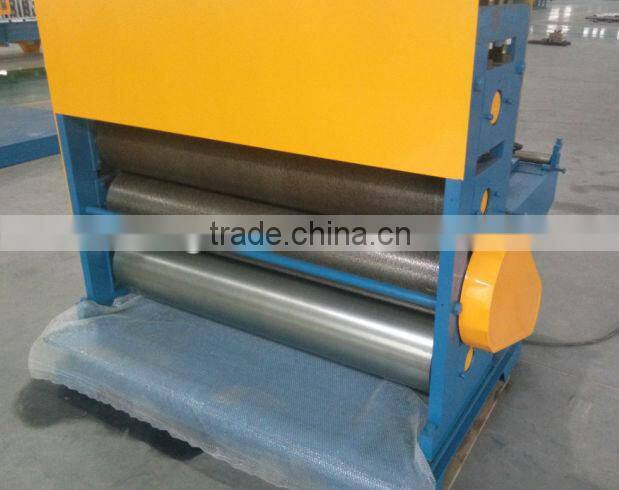

machine show

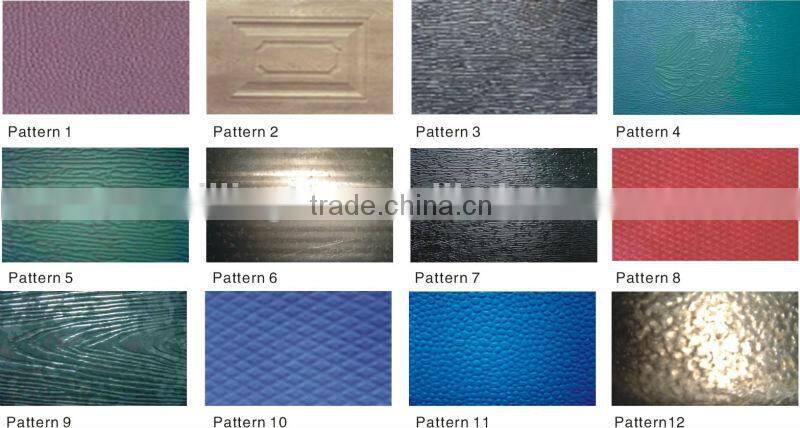

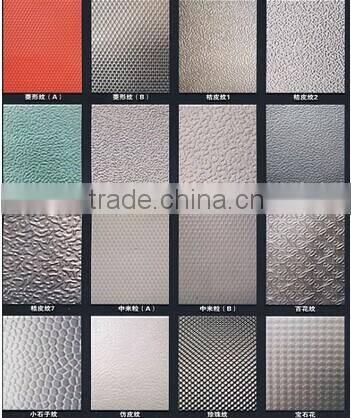

Embossing Pattern
Embossing Pattern: as the sampales or the customers' requirements
Components of machine:
1.Roller Material: high grade No.45 forged steel, Coating with hard chrome.
2.Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated mechanic feature of the shaft.

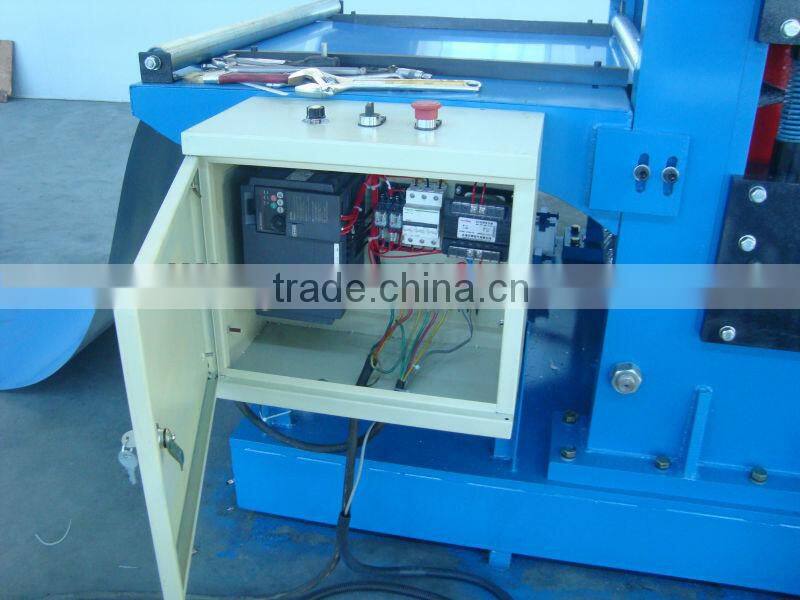

3.Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.
4.Other Elements: from famous suppliers in China.
5.Cutter Blade: Cr12 mould steel with quenched treatment.

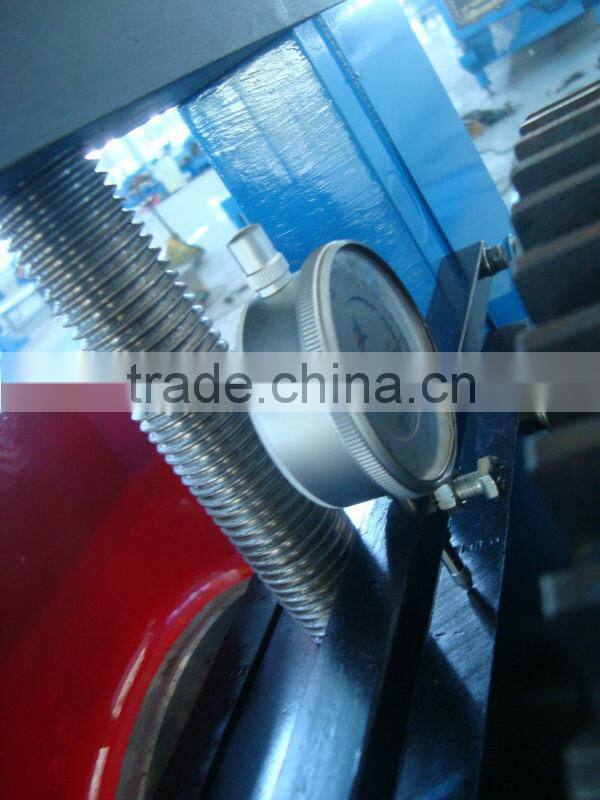

Details of the machine

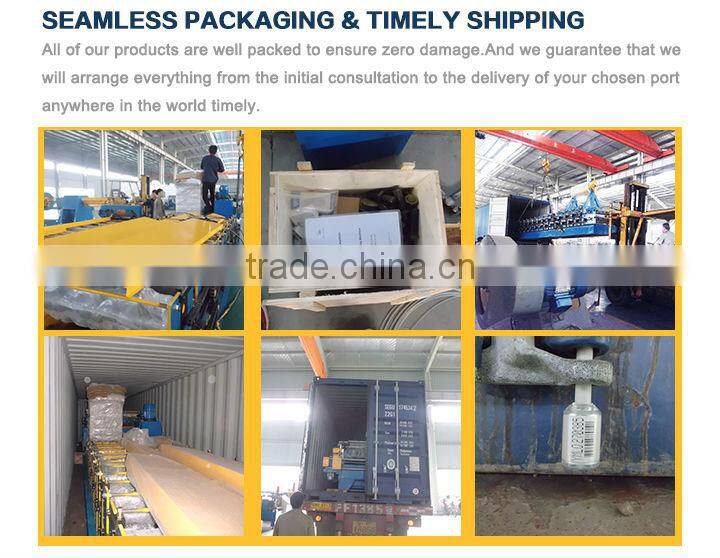

Because of the long trip and your super trust, we will make sure Purlin roll forming machine can be appeared in front of you in fully good condition, you will fall in love with it with first glimpse!
ZheJiang Willing Technology Co., Ltd. is located in Tongxiang economic development zone, which is about 2 hours far from Shanghai.
We are a professional manufacturer and exporter of roll forming machineries and products. The main items: steel roll forming machines,folding & bending machines as well as its auxiliary equipment, roofing tile sheets, corrugated steel sheets, decking sheets, sandwich panels, purlins, H beams, galvanized steel coils, pre-painted steel coils,
construction materials such as clips, brackets, bolts, screws and socket boxes, mobile houses and steel structure constructions.
The machineries are precisely designed with high technology with nice outlook and low noise during operation. Our products are widely used in the modern buildings and warehouses as roof, wall, truss, and so on.
1. About after sales support
We are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2. About our machines compare with other big companies in this market.
We are up to date with the latest technology and improve our machines accordingly
3. About our factory do regarding quality control.
Quality is priority. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. About our machine?
Most of our machines are built according to customers specifications, using top brand name components.
5. About we deliver the right goods as ordered?
The core of our company culture is honesty and credit. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
