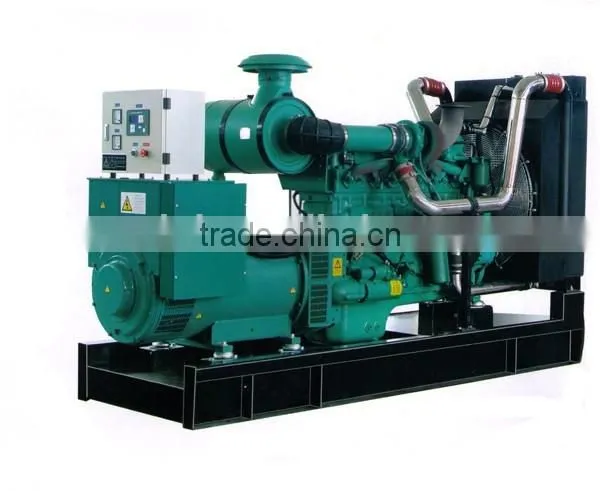

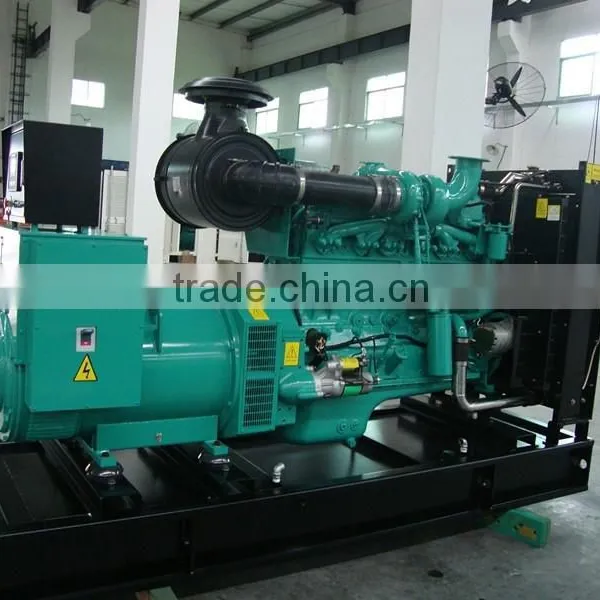

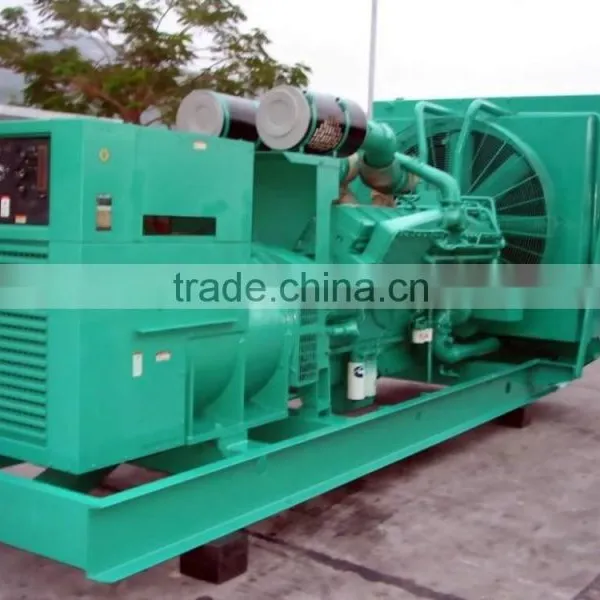

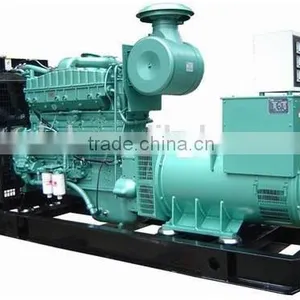

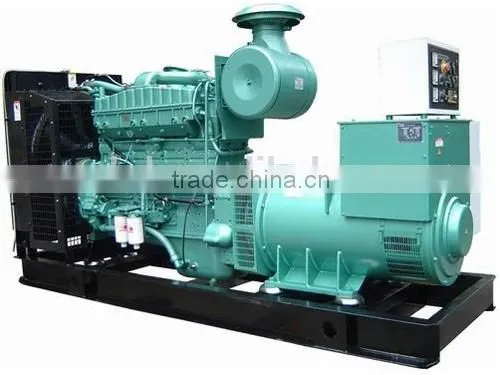

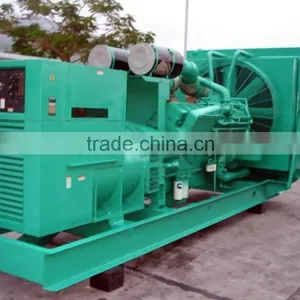

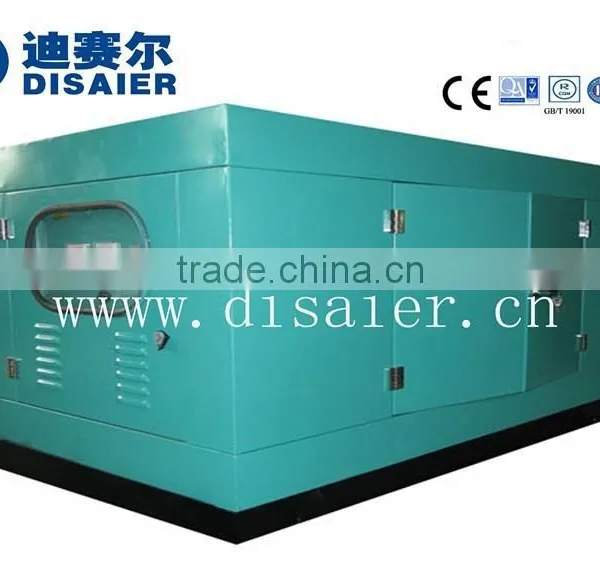

200kva to 1200kva cummins diesel generator genset
Diesel generator cummins data
| Rated Voltage | 220/380V,277/480V,127/230V |
| Rated power | 200kva to 1200kva |
| Alternator | Leroy somer, stamford, marathon |
| Excitation | brushless |
| Governor | Electrical governor |
| Circuit Breaker | ACB,MCCB |
| Base Fuel Tank | Eight hours(Standard) |
| Warranty | 1 Year or 1000 running hours |
| Starting method | electric /Key start |
| Connecting type | 3 phase and 4 wire |
Genset Features cummins generator brand:
1. Genuine Commins industrial diesel engine
2. Radiator 40°C max, fans are driven by belt, with safety guard

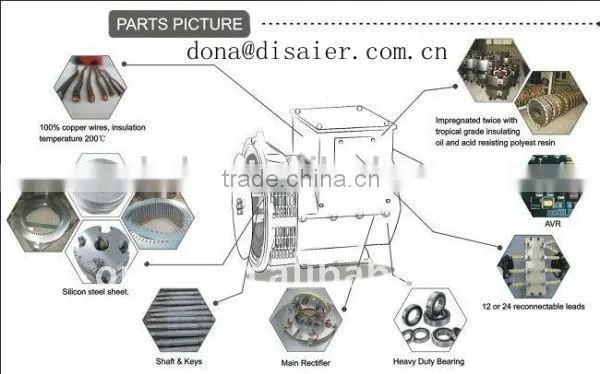

3. Genuine Stamford, Leroy somer, Marathon, Engga Alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Ripple flex echaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Features of diesel generator:
1. Genuine Cummins industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily

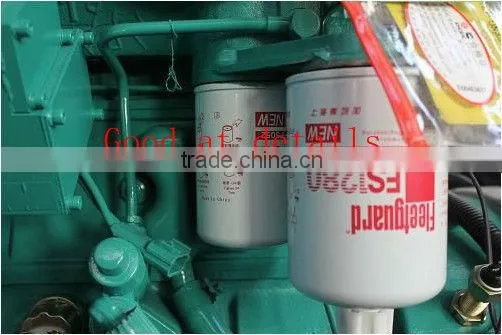

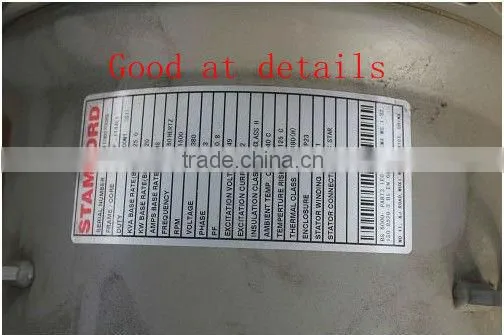

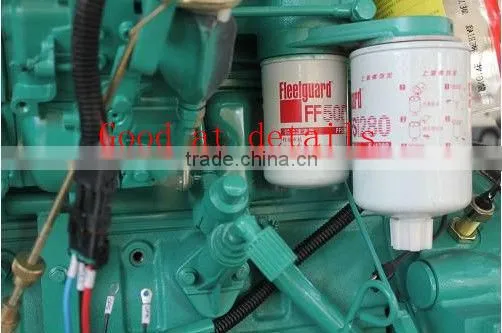

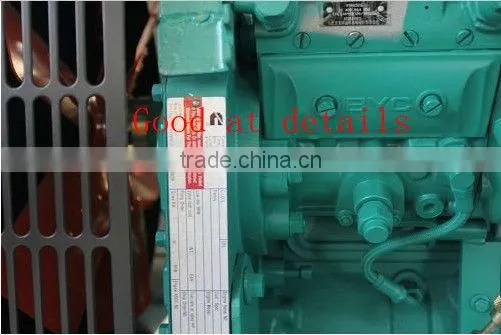

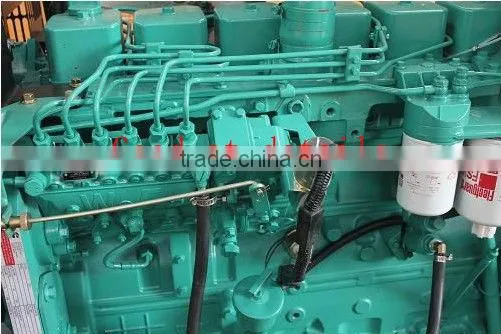

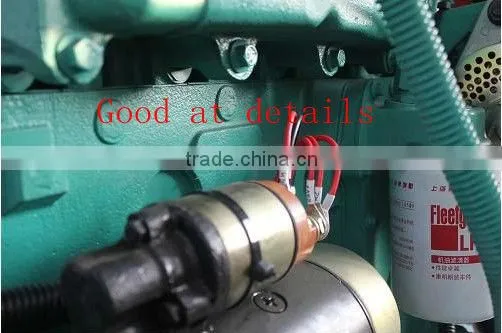

Cummins diesel generator details images

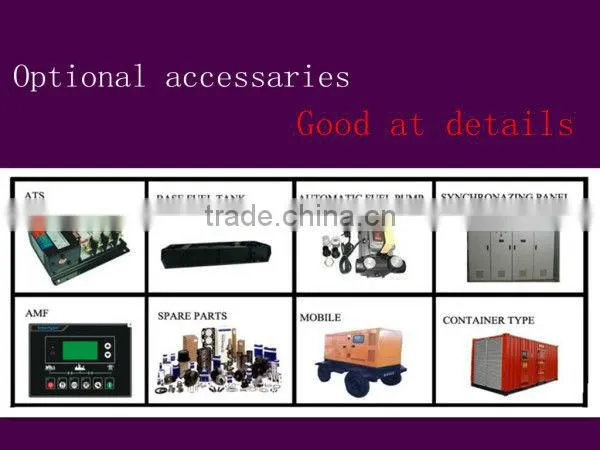

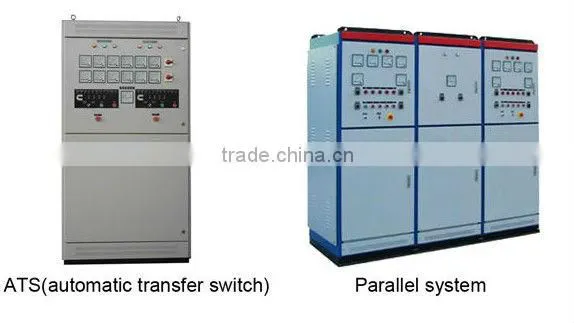

ATS and Parallel panel
Deepsea control panel and AMF
LED Control panel:
Brand: Smartgen or Deepsea.
Main functions:
.Start or Stop Generator set manually / automatically
.Open controller output can be defined as Pre-heat/Idle output
.High Coolant temperature protection
.Low Oil pressure protection
.Over load protection
.Generator over/under frequency protection
.Generator over/under/unbalance voltage Protection
.Over speed protection
Note:Indicate this function depend on the set points of the controller in field.

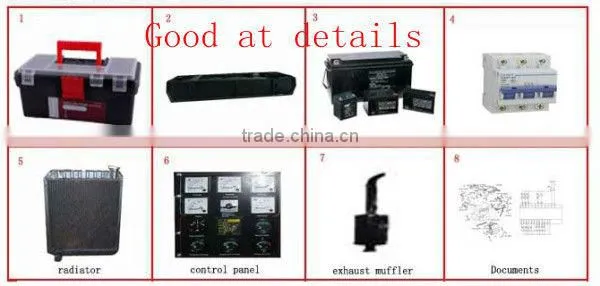

Standard accessaries
Cummins geerator set 200kva to 1200kva data:
| Genset model | Prime power | Standby power | Engine model | Fuel consumption (g/kwh) | Cylinder | Displacement(L) | Bore*stroke(mm) | Weight(kg) | Dimension(mm) | ||
| KW | KVA | KW | KVA | ||||||||
| DSC250 | 200 | 250 | 220 | 275 | NT855-GA | 214 | 6L | 14 | 140×152 | 2500 | 3100×1000×1600 |
| DSC270 | 216 | 270 | 238 | 298 | NT855-GA | 214 | 6L | 14 | 140×152 | 2600 | 3100×1000×1600 |
| DSC300 | 240 | 300 | 264 | 330 | NTA855-G1A | 207 | 6L | 14 | 140×152 | 2650 | 3100×1000×1600 |
| DSC313 | 250 | 313 | 275 | 344 | NTA855-G1B | 210 | 6L | 14 | 140×152 | 2800 | 3100×1000×1600 |
| DSC350 | 280 | 350 | 308 | 385 | NTA855-G2A | 208 | 6L | 14 | 140×152 | 2850 | 3100×1000×1600 |
| DSC375 | 300 | 375 | 330 | 413 | NTAA855-G7 | 206 | 6L | 14 | 140×152 | 2950 | 3100×1400×1600 |
| DSC400 | 320 | 400 | 352 | 440 | NTAA855-G7A | 206 | 6L | 14 | 140×152 | 3000 | 3100×1400×1600 |
| DSC450 | 360 | 450 | 396 | 495 | KTA19-G3 | 205 | 6L | 18.9 | 159×159 | 3850 | 3700×1400×2000 |
| DSC500 | 400 | 500 | 440 | 550 | KTA19-G4 | 203 | 6L | 18.9 | 159×159 | 3900 | 3700×1400×2000 |
| DSC563 | 450 | 563 | 495 | 619 | KTAA19-G5 | 204 | 6L | 18.9 | 159×159 | 4200 | 3700×1400×2300 |
| DSC625 | 500 | 625 | 550 | 688 | KTAA19-G6A | 206 | 6L | 18.9 | 159×159 | 4250 | 3700×1400×2300 |
| DSC750 | 600 | 750 | 660 | 825 | KTA38-G2 | 214 | 12V | 37.8 | 159×159 | 6800 | 4600×1700×2500 |
| DSC900 | 720 | 900 | 792 | 990 | KTA38-G2A | 215 | 12V | 37.8 | 159×159 | 6850 | 4600×1700×2500 |
| DSC1000 | 800 | 1000 | 880 | 1100 | KTA38-G5 | 202 | 12V | 37.8 | 159×159 | 7750 | 4900×1900×2500 |
| DSC1250 | 1000 | 1250 | 1100 | 1375 | KTA50-G3 | 213 | 16V | 38 | 159×159 | 9800 | 5560×2050×2310 |
