Specifications
Daewoodiesel power generator set1 Low consumption
2 Low noise
3 With CE/ISO9001
Xiamen Huadong Machine Equipment Co,Ltd.

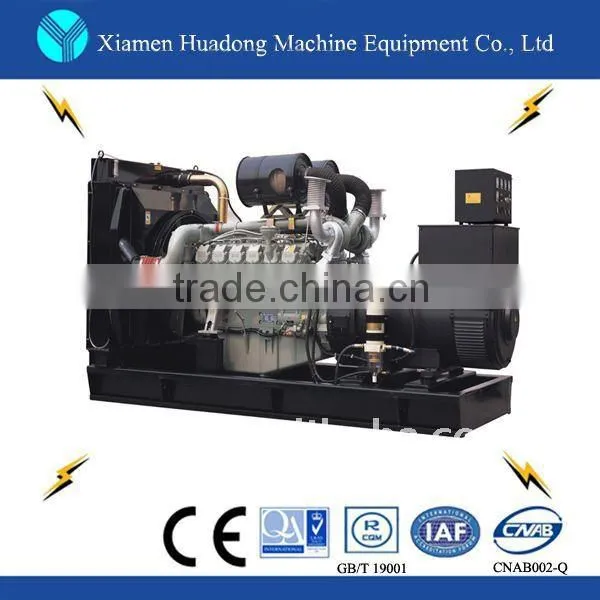

Daewoo diesel power generator set:
Genset Features:
Compact,heavy duty steel skid base to sllow safe and easy handling by forklift
Steel base frame serves as fuel tank
Easy start up and trouble free maintenance
Fully engineered with wide range of options and accessories
Every generator set is subject to a comprehensive test program to include full load testing and safety shut down function testing
Engine:
Starting Method:Self-start
Cooling Method:Fan-cooled
No. of cylinder:3/4/6/8/12/16
Cylinder Arrangement:In line
Fuel Consumption:213g/kw.h
Injection Method:Direct injection
Aspiration Method:Natural Asp./Turbocharged./Tobercharged air intercooler./Turbocharged water cooled
Governor Method:Machanical or Electronic speed governor
Alternator:
Brand:Stamford.Leroy Somer,Marathon and Engga avaliable
Excitation Method:Brushless,single bearing system,flexible disc,4 poles
Insulation Class:H
Protection Class:IP21-23
Voltage Control Modle:Automatic Voltage Regulator
Cooling Method:Self-fan-cooling
Load from 0-100%,frequency vibration ratio within 0.25%
No load wire volts max undeulation ratio within 5%
Generator Controller
Brand:Deep sea or Disaier avaliable
Standard Manual Remote Start Controller
Effective system Integration
Digital Display Engine Parameters
True Voltage and current RMS measurement
3 phase power measurement
Simple Monitoring
Graphic LCD display in English and Chinese
User friendly remote supervising and servicing
Auto Mains Failure Controller avalible upon request
Multi-set load shsre systems for complex paralleling application avalible upon request
Chassis
The complete generator set is mounted as whole on a heavy duty fabricating steel base frame
The generating set can be lifted or carefully pushed /pulled by the base frame
Fuel tank can be sperated from base frame if customer required
Anti Vibration Mount are fixed between the engine ,alternator base and the base frame
Dial type fuel gauge and drain plug on the fuel tank
