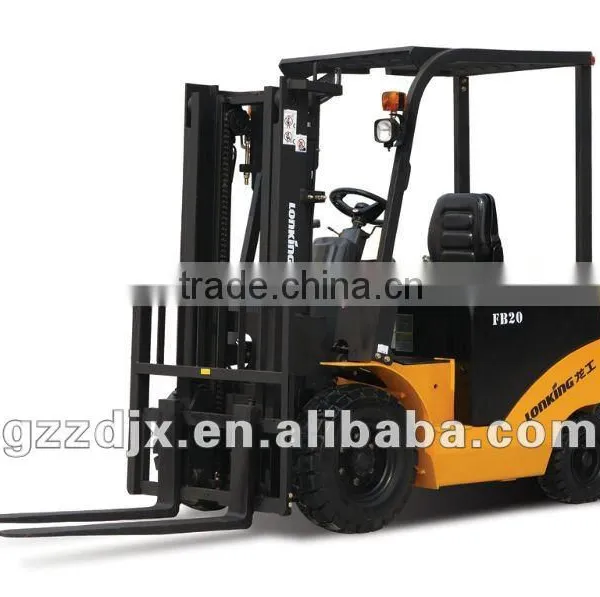

Help CenterSmall Mini Forklift
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
lonking
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.6 Ton -4ton Battery Forklift With 4 Tires of LonkingNegotiableMOQ: 1 Set -
5.0T Heavy Forklift Lonking LG50DTNegotiableMOQ: 1 Set
-
LPG/gasoline Fork Lift, 3.5Ton Fork Lift,nissan EngineNegotiableMOQ: 1 Set
-
LPG/gasoline Fork Lift, 3Ton Fork Lift,nissan EngineNegotiableMOQ: 1 Set
-
LPG/gasoline Fork Lift, 2.5Ton Fork Lift,nissan EngineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Shanghai, China
Brand Name
lonking
Model Number
FB20
Type
Powered Pallet Truck
Power Souce
DC Motor
Rated Loading Capacity
2000kg
Max. Lifting Height
3000mm
Min. Lifting Height
40mm
Fork Length
922mm
Fork Width
120mm
Overall Dimensions
3430x1150x2015
Specifications
1.Power:Battery2.Load Capacity:2000kg
3.Battery Capacity:48/600 V/Ah
4.Max.Lifting Height:3000 mm
5.Fork(L1/W/T):920/12
1. Adopt first-class electrical-control system, motor and meters, which produced by the European well-known brand manufactures to ensure the stability of the forklift's performance, and all the components have passed the detection test;
2. DIN standard battery which made in Germany;
3. Advanced turning and deceleration system, no need to use foot brake when turning
4. Lower the battery and the forklift's gravity center to improve the working stability;
5. Used AC motor to avoid changing the brush of the motor;
6. LIN Instrument Bus Line integrated more functions;
7. Better Electrical Differential Performance (Double Drive);
| Model | FB20 | |
| Power Type | Battery | |
| Load Capacity | 2000 kg | |
| J Load Center | 500 mm | |
| H1 Max. Lifting Height | 3000 mm | |
| H3 Free Lifting Height | 140 mm | |
| L1XWXT Fork Dimension | 920X122X40 mm | |
| Tilling Angles (Forward/Backward) | 6°/ 12° | |
| Overall Dimension | L1 Overall Length | 3430 mm |
| W1 Overall Width | 1150 mm | |
| H2 Overall Height | 2015 mm | |
| (Mast Lowered and Upright) | ||
| H4 Safety Rack Height | 2210 mm | |
| R1 Min. Turning Radius | 2100 mm | |
| L2 Fork Overhang | 480 mm | |
| Tread | S Front | 960 mm |
| P Rear | 950 mm | |
| Backrest Width | 950 mm | |
| M2 Min. Under-clearance | 130 mm | |
| L3Wheel Base | 1500 mm | |
| Speed | Travel (with load/without load) | 10/12 Km/h |
| Lift (with load/without load) | 280/440 mm/s | |
| Max Gradeability(with load/without load) | 15/20 % | |
| Total weight | 3900 kg | |
| Tire | Front | 7.00-12-12PR |
| Rear | 18X7-8-14PR | |
| Engine | Travel | XQ-6.3A1 kw |
| Lift | XQD-8.6-1 kw | |
| Battery | 48/580 V/Ah | |
| Working Pressure | 16 Mpa | |
