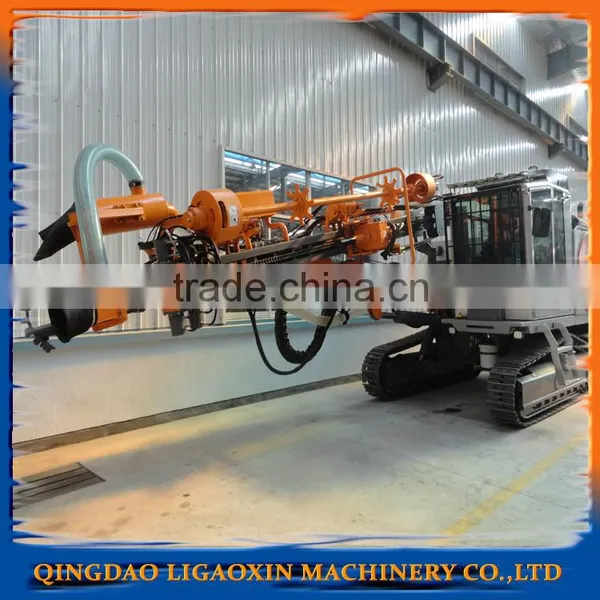

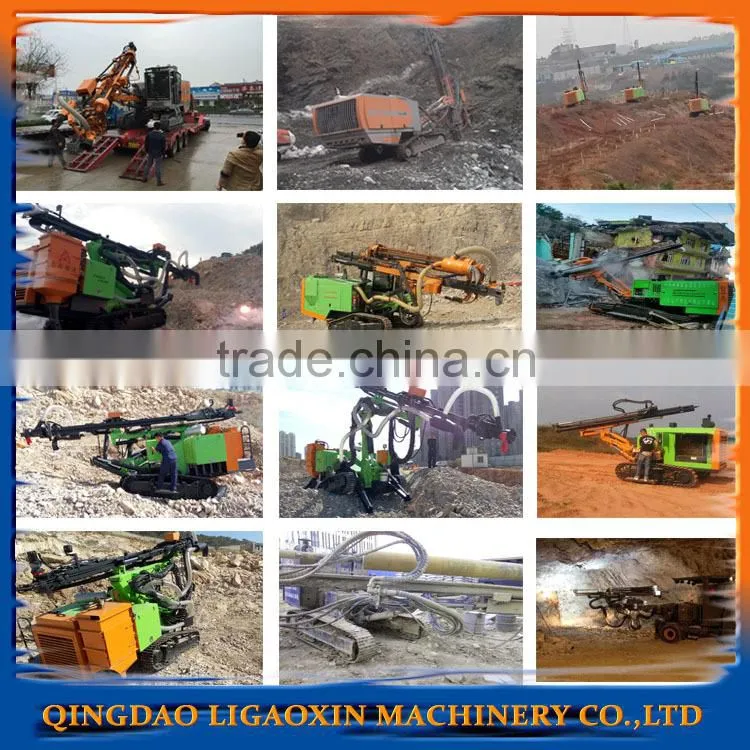

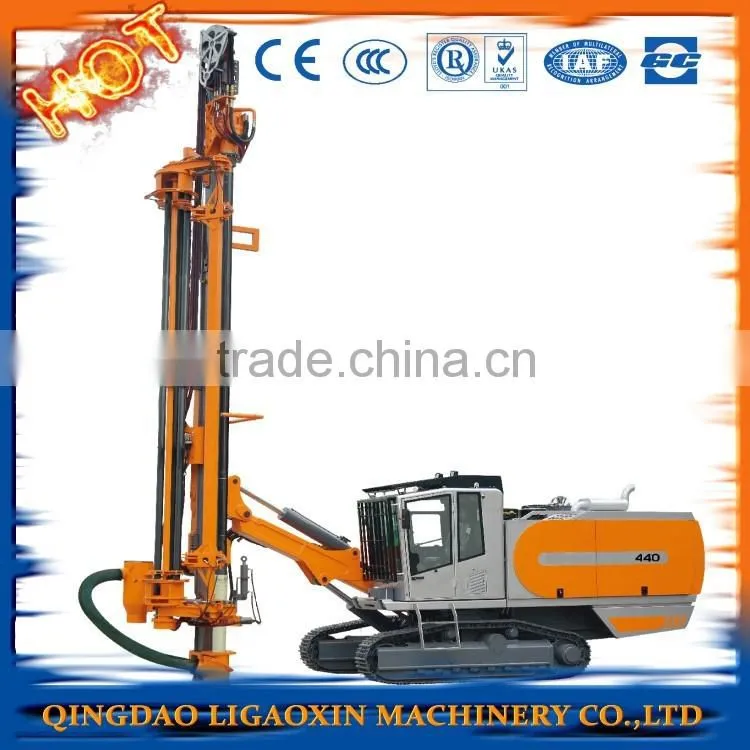

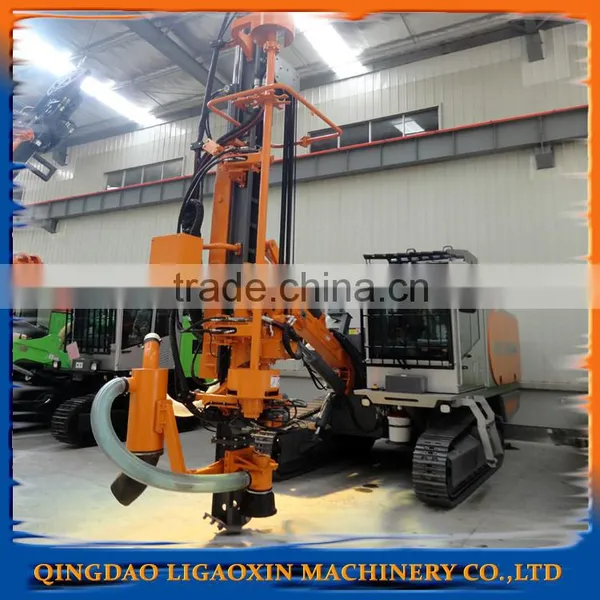

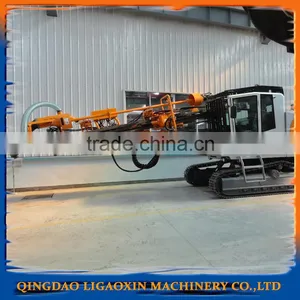

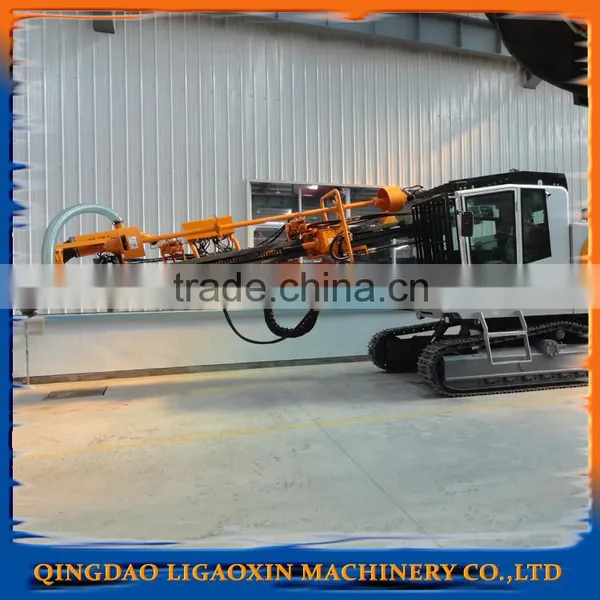

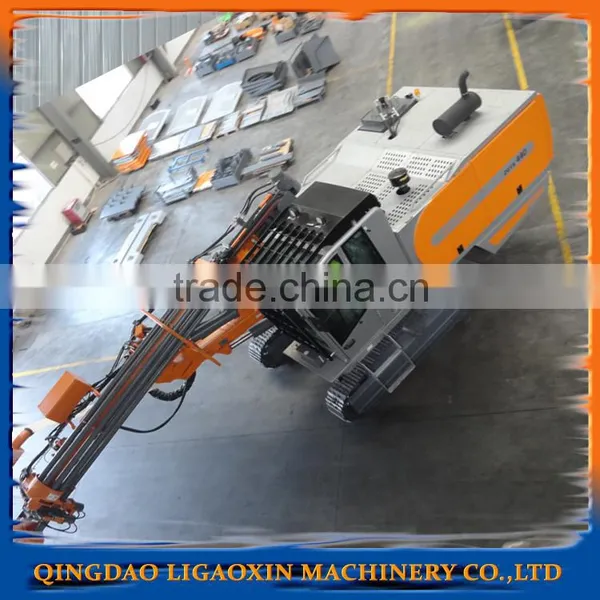

LGX-ZD440 type (high pressure) integrated DTH drilling machine is applied in the construction of highway, railway construction, all kinds of mines and the construction of hydro power station. The characteristics of drilling speed, low fuel consumption, climbing and walking ability, low cost, convenient maintenance. Fully equipped cab and dust collecting device are in accordance with the requirements of environmental protection and comfort.
1.high performance strong diesel power and compressed air for the high speed drill drill drilling hole provides the precondition.
2. heavy forward beam is installed in the motor, chain, pulley, and is composed of the propulsion system; dual hydraulic motor driven rotary head and a drill pipe locator rotation system; induction automatic positioning and storage seven branch 3.5 meters on side 76 or 68 mm drill storehouse and a positioning oil cylinder, discharging rod and double manipulator consisting of automatic change drill; the other with primary filter, sliding catch dust cover, drill pipe thread automatic lubrication, impactor loading and unloading oil cylinder device, device can completely meet the requirement of high-speed drilling.
3.increase the walking motor and body leveling mechanism, the fastest running 3 km / hour, maximum climbing 25 degrees, high and low speed double level walking function and independent diesel engine preheating device
makes the drill rig can flexibly adapt to all kinds of terrain and environment temperature.
4.equipped with dual stage air conditioning the cab all handle is light and flexible, display and various kinds of instrument can reflect the jumbo all data and automatic alarm, storage, electric drill arm angle reality makes drilling single car operation convenient, accurate positioning.
5.Dust powerful - making drill can be equipped with different impact device, to adapt to the user demand under different requirements.
6.the machine the main performances and technical index, both near and reach the level of similar imported products, but the purchase cost, use cost, spare parts supply cycle, after-sales service has a advantage than imported products. The company has imported advanced design, and make it domestic.
7.air-conditioned driving room, advanced automatic changing rod structure and good dust suction device, to achieve single operation, fully embodies the humanized design concept.
Diesel Engine | |||
Model |
YC6A260L-T20 |
Rotation Speed |
2000 rpm |
Manufacturer |
China |
Capacity of Fuel Tank |
350L |
Rated Power |
191 kw |
|
|
Screw Compressor | |||
Manufacturer |
Ligaoxin |
F.A.D |
16m3/min |
Air End Manufacturer |
Jiuyi |
Working Pressure(Max.) |
17bar |
Functional Specifications | |||
Hole Range |
90-115 mm |
Hammer |
HD45A35A |
Hole Depth |
28m |
Rotation Speed |
0-105 r/min |
Rod Diameter |
76 mm/68mm |
Torque |
2800 N.M |
Rod Handling System |
7+1 |
Rod Length |
3.5 m |
Boom & Feed | |||
Boom Type |
Single Straight Boom |
Feed Type |
Motor Chain Mode |
Length of Feed Beam |
6865mm |
Travel Length |
4100mm |
Feed Extension |
1200mm |
Feed Rate(Max.) |
0.85m/s |
Feed Force (Max.) |
15KN |
Lifting force (Max.) |
31 KN |
Chassis | |||
Tramming Speed |
high 3 km/h, low 1.5km/h |
Traction force |
115.4KN |
Climbing Ability(Max.) |
25° |
Track Oscillation |
±10° |
Ground Clearance |
450mm |
|
|
Weight & Dimensions | |||
Width |
2480 mm |
Height |
3200 mm |
Length |
9980 mm |
(w/o options) Weight |
15000kg |
