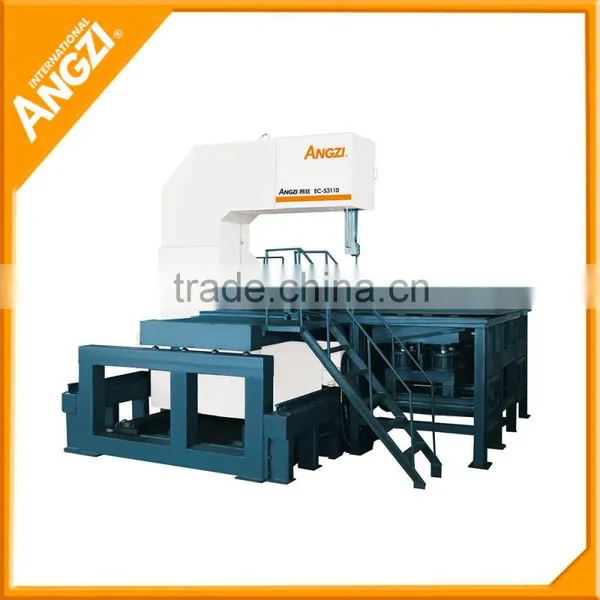

Heavy Duty Vertical Metal Saw Machinery for Tube/Ring
Productivity Features
- Drive Wheel Transmission
The drive motor's variable speed driven pulley is directly coupled to the high efficiency planetary gear reducer and the drive wheel is mounted on the rotating output case of the gear reducer. The pulleys and belt are guarded from both fluids and dust for long life with low maintenance.
- Band Wheels & Drive System
The band wheels are cast iron for long, productive life. The drive wheel is mounted on the rotating outer case of the planetary gear reducer. This direct coupling of the drive wheel to the rotating outer case of the reducer provides deflection free torque transfer and ensures the wheel runs true regardless of tension stresses or cutting loads. The inherent high efficiency of the planetary gear reducer means more power is delivered to the blade. The idler wheel spindle assembly incorporates tapered roller bearings for greater rigidity and long service life. The wheel tracks the blade so that the back of the blade contacts the wheel flange to support the back of the band.
- Band Deviation Monitor
The detector constantly displays the current blade cutting conditions and has independently adjustable limits for each direction. If the blade deviation exceeds either limit for more than 90 seconds, the machine control will stop the machine. Using the cutting display in conjunction with the runout detector, enables the operator optimize the cutting performance to achieve the desired rate and accuracy.
- Power Positioning of Upper Saw Guide Arm
The movable guide is hydraulically positioned using the manual valve on the control panel. After it is in the desired position, it is locked to the way bar by a short stroke hydraulic cylinder.
- Pressure/Flow Feed Control
The independent pressure and flow controls in series ensure the optimum cutting rate can be obtained regardless of section or alloy being cut. The pressure control determines the cutting force applied to the blade and the flow control sets the maximum feed rate of the head. For example for difficult to machine materials the pressure is set higher than free machining alloys and the flow is set lower, as shown on the escutcheons above the above the control knobs.
- Table Guiding
The rigid feed table is mounted on precision LM linear bearings. This rigidity enables the machine to cut all tough and hard machinable alloys.
- Manual Positioning of Saw Table.
The table positioning push buttons actuate solenoid valves to rapidly position the saw head forward or reverse. The manual movement of the head is controlled by push buttons on the control panel with safety interlocks.
- Idler Wheel Motion detector
The idler wheel motion detector will turn off the blade drive in the case where a blade breaks or is jammed in the work piece. This feature prevents premature wear on the drive wheel from a stalled band.
- Ammeter
The ammeter displays the current draw on the blade drive motor.
Specifications may change without notice at the sole discretion of Angzi's Engineering Department.
Specification
Name |
Vertical EC Band sawing Machine |
Item |
EC-53110 |
Control Model |
Electronic control |
cess standard |
H:1100 D:1100L:2000-6000 |
Process Speed(m/min) |
15-60 |
Saw Band Specification(mm) |
67*1.6 |
Main Motor Output(kw) |
11 |
Coolant Motor(kw) |
0.09 |
|
Saw Blade Tensioning Form |
Manual |
Weight(kg) |
2500 |
Q: Can I have your quotation?
A: First, please inform us which material you would like to cut and its details includes size, solid or hollow, circular or rectangular,ect., without these parameters, we are not able to recommend you the suitable machine.
Q: What is the voltage and Hertz in your country?
A:In China,the Voltage is 380V(3 Phase),the Hertz is 50HZ, we can change the voltage and Hertz according to your requirement(also have 220V)
Q.Your price seems a little high?
A: You get what you pay for, our price is based on good quality,We sell the machines all over the world with good feedback from our customers, and we don't sell the machine with low configuration, cause it will trouble us more in the future maintenance.
Q: If OEM and ODM services available?
A: Yes. We can make the machines with customers' brand and logo. With professional engineers,we can also design and produce the machines according to customers' requests.
Q:What about the lead time for mass production?
A:Honestly,it depends on the order quantity and the season you make the order,always 14-29 days, and many models of band saw machine have stock
Q:What about the payments
A:We usually accept 30%TT for deposit and 70%TT before shipment.
Q:What is your terms of delivery?
We accept EXW, FOB and CIF,you can choose the one which is the most convenient or cost effective for you
Q.What about the shipping ways?
A:We will choose the sea transportation,and if you want the blade saw,
we will choose the express like DHL,UPS,ect. or other shipping ways according to your requirement
