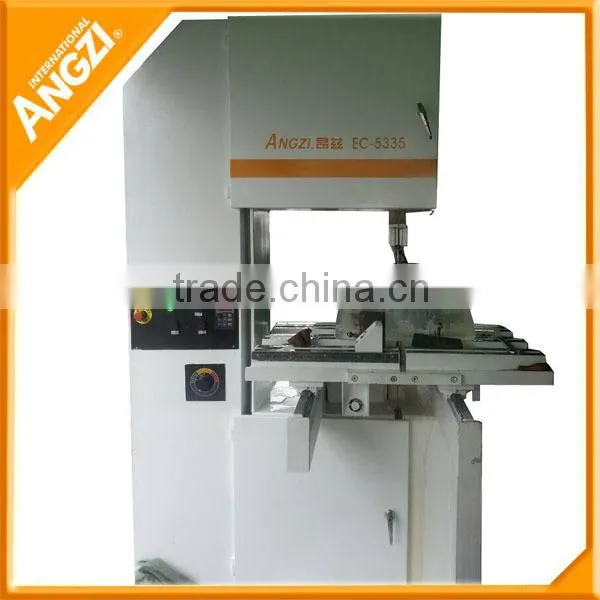

EC5335 China Goods Wholesale Band Saw Used Granite Cutting Machine
EC-5335 Vertical Metal Band Sawing Machine Introduce:
Mainly used for cutting various ferrous metal and nonferrous metal. The structure of the
machine tool is reasonable with stable and reliable performance and high precision. It is ideal
equipment for material sizing of medium /big lot.
EC-5115 Performance:
·Pulley type structure;occupation of small land area.
·The operation control is concentrated on control table of the saw frame.
·Main drive is of mechanical stepless speed regulation.
·Feeding speed is controlled by DC motor,possible for random speed regulation within range of
1-120mm/min;low speed and stable performance.
·The main drive uses stepless speed regulation system with reliable performance and stable running.
·The upper guiding arm uses electric control for convenient operation.
·The special accessory radon mark line-positioning device can conveniently and correctly align
with the processing saw cut,with additional mechanical positioning ruler.
·Simple loading clamp of workpiece.
·The working table and the control table are equipped with ladder and protective handrail to
ensure safety of operator.
Technical Parameters:
Type |
EC-5335 |
|
Max Process Standard (mm) |
Throat height:300 Throat depth:450 Stroke:450 |
Process Speed(m/min) |
22-130 |
Saw Band Specification (mm) |
27*0.9 |
Main Motor Output(kw) |
2.2 |
Oil Pump Motor Power(kw) |
0.55 |
Coolant Motor(kw) |
0.04 |
Working Clamping Method |
Hydraulic |
Saw blade Tensioning From |
Manual |
Main drive |
Worm gear drive |
Dimension(LxWxH) |
1300*1200*2200 |
Weight (kg) |
2500 |
Different cutting materials:
Cutting Metal:
Cutting Granite:
Cutting Marble:
Cutting Quartz:
ANGZI Workshop:
Experienced in selling band saw machine to more than 40 different countries,
we pack and load the machines well and prevent any damages during transportation.
Choice 1: Nude packing & Plastic protective cover.
Choice 2: Wooden case.
1. Located in Shanghai city, Building area 5000m².
2. 6 years band saw machine production experience.
3. High efficiency,High precision and High stability,continuously satisfy customers' demands.

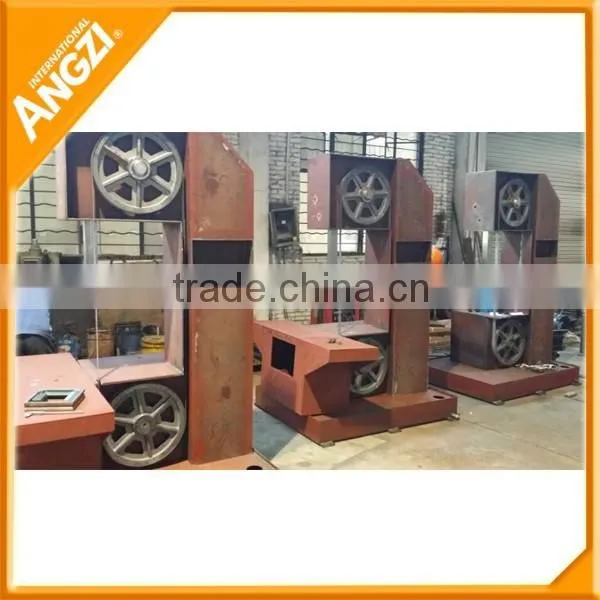

ANGZI Factory picture
Exhibitions:
1.We test the Band saw machine to ensure the good quality.
2.We check the flatness degree to see if it is up to standard.
3.We also do some cutting experiments to check its using function.
4.Professional manufacturing assembly line.
5.Very strict quality control.
Q1: What is the voltage and Hertz in your country?
A1:In China,the Voltage is 380V(3 Phase),the Hertz is 50HZ, we can change the voltage and Hertz according to your requirment(also have 220V).
Q2.What about the lead time for band saw machine?
A2:Honestly,it depends on the order quantity and the season you make the order, always 10-15 days, and many models of band saw machine in stock.
Thank you for your attention to Shanghai ANGZI company,any question about band saw machine,Please contact us:
