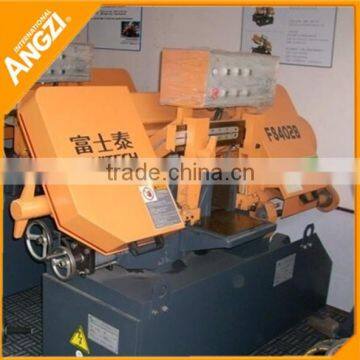

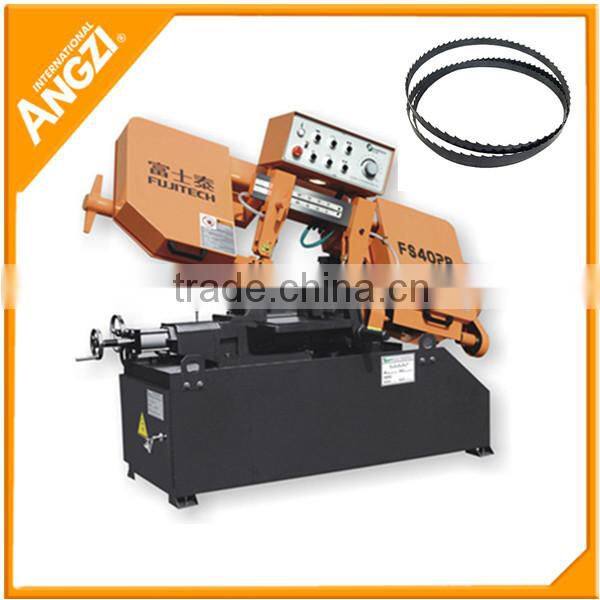

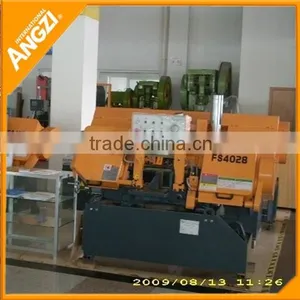

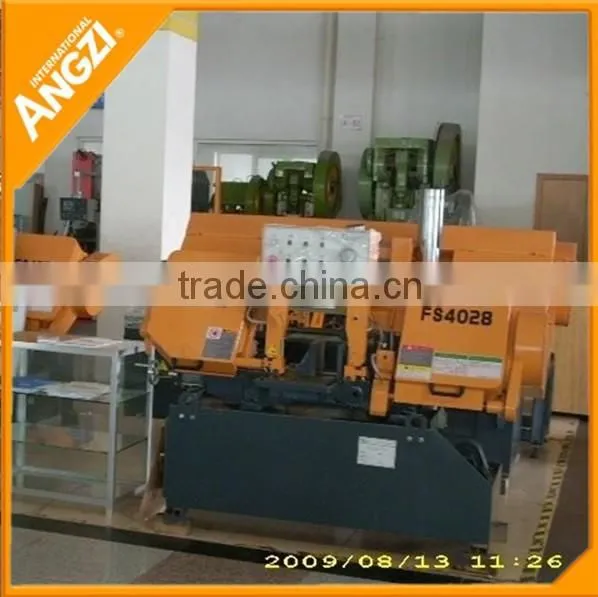

Help CenterFS4028 Hydraulic Saw Blade Tensioning With Electrical Monitoring for Metal Cutting Saw
Related Products
-
New Model for Steel Rule Die Cutting MachineUS$ 1 - 5,500MOQ: 1 Set -
FS4830HP Advanced CE BAND SAW CUT IRON MACHINEUS$ 13,799 - 14,499MOQ: 1 Set
-
Angzi EC-4235 High Margin Products Band Saw MachineUS$ 1,500 - 5,000MOQ: 1 Set
-
Economical Aluminum Square Tube Cutting Saw MachineryUS$ 6,927 - 7,668MOQ: 1 Set
-
EC-4242-70 Chinese Goods Online King Band SawUS$ 1,500 - 30,000MOQ: 1 Set
The Excellent Quality of metal cutting saw:
The Specification of metal cutting saw:
|
Item Model |
FS4028 |
FS4038 |
||
Capacity(MM) |
Round |
280 |
380 |
|
Square |
W300*H200 |
W450*H300 |
||
|
Blade Speed (M/MIN) |
20, 35, 50, 65, (80) |
20, 35, 50, 65, 80 |
||
Blade Size (MM) |
L3505*W27*T0.9 |
L4230*W34*T1.1 |
||
Blade Tension |
Handle Tension/Release |
|||
|
Motor |
Blade Drive(KW) |
2.2 |
2.2-6P |
|
Hyd.pump(KW) |
0.38 |
0.75 |
||
Coolant Pump(KW) |
0.04 |
0.04 |
||
Oil Scupper Volume |
Hyd fluid(L) |
20 |
25 |
|
Cooland Pump(L) |
40 |
50 |
||
Weight( KG) |
760 |
1200 |
||
Floor Space(MM) |
L1880*w800*H1420 |
L2230*W1000*H1570 |
||
The Product features of metal cutting saw:
1,Main Technical Parameters:
1.1 Capacity:Round Φ280mm
Spare 300×200(W×H)
1.2 Blade Speed:20 35 50 65 80
1.3 Blade size:
length is according to the sewing machine; The width is 27mm;The thickness should be less then 1mm.
1.4 Motor:Total power is about2.7KW.
1.5 Install conveniently and perform stably.
2,Function:
2.1 Blade tension:Manual control
2.2 Blade speed adjustment:Belt gear shift
2.3 Chip cleaning:motive power driven steel brush cleaning device
2.4 Front feeding,four feet assistant rack
2.5 Electrical feeding(Optional),length 2.0M
3,Machine
3.1 Weight:about 750kg
3.2 Floor space(L×W×H):1880×800×1420
3 Safeguard device according to National safety standard. Noise <85dB(A).
4,Environment condition:
4.1 Power supply:380±10%,50Hz±0.5;
4.2 Temperature:0~40℃
Function and Characteristics
1,Applying hydraulic clamping structure, the workpiece can feed from back or front.
2,Moving the workpiece and positioning by Manual control.
3,Specific Double current valve Oil pressure system,Cutting down speed is controlled by Speed Adjusting Valve. This system can avoid the blade running abnormally
broken, and achieve best cutting effect.
4,Integration design of Worktable and Hinge hole, makes up stable cutting structure.
5,Constant temperature system for whole oil-way makes cutting more stable.
6,Safety device:
A. The machine cannot startup if the material hasn’t clamped the blade well;
B. No-load noise is less than 70dB(A).

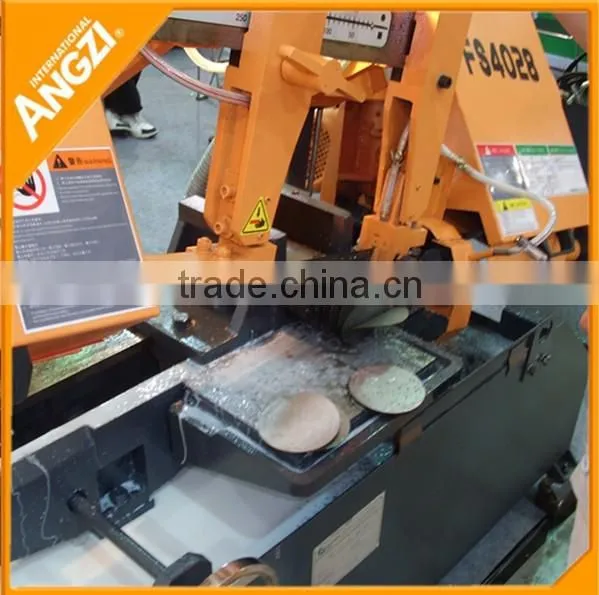

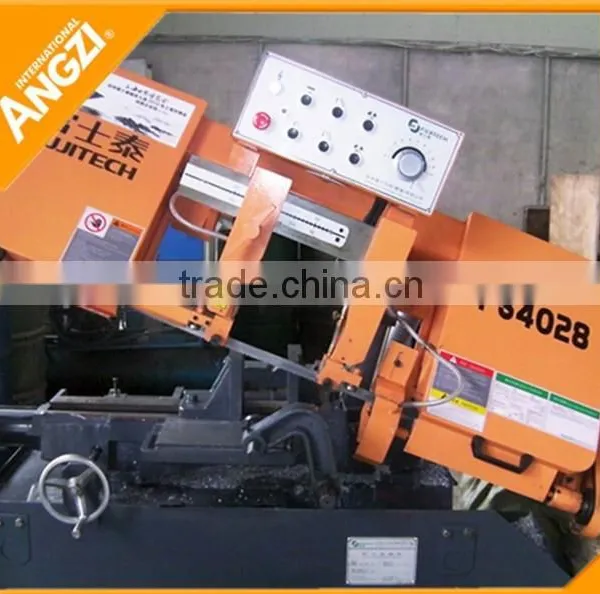

Some part of metal cutting saw :

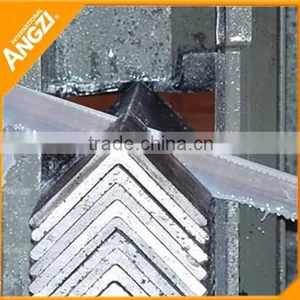

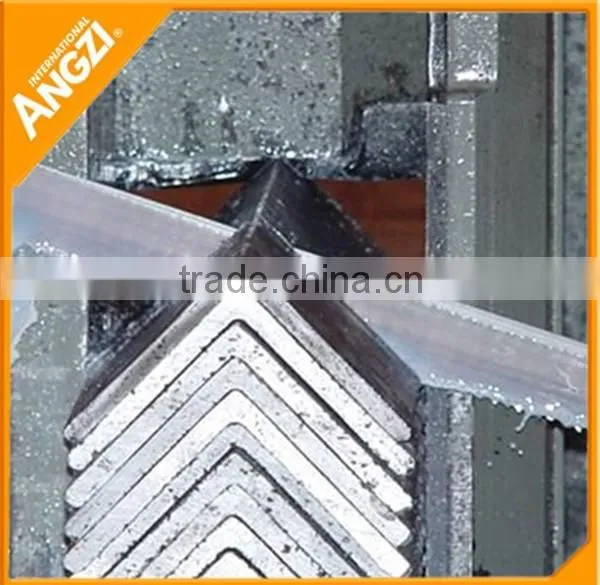

The Cutting Material of metal cutting saw :
For Round Bar:
For Square Tube:
For Pipe:
For H-Beam:

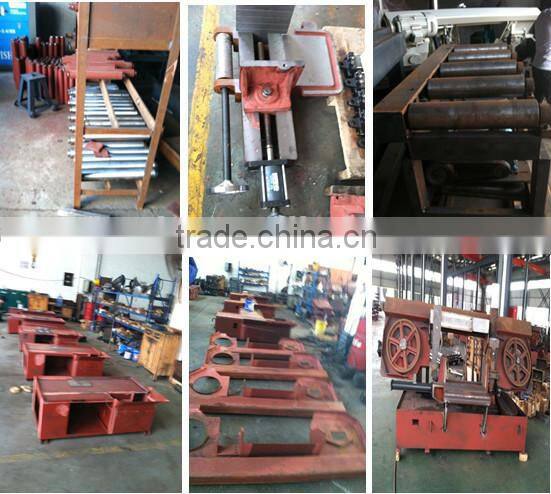

Our Factory for metal cutting saw:
ANGZI manufactures heavyduty, high performance horizontal band sawing machines large horizontal band saws, horizontal miter band saws, CNC horizontal band saws, vertical plate saws, power hacksaws, sawing systems, manual, semi automaticmiter circular cold saws, automatic miter circular cold saws, CNC circular sawing centers, automatic carbide circular cold saws, automatic vertical circular cold saws, etc.
Our Team for metal cutting saw:
Packaging Details: Standard seaworthy packing or According Customer Requirement for metal cutting saw.
Delivery Time:7-10 days after the deposit of metal cutting saw.
Our service for metal cutting saw :
1.Timely delivery with short production period
2..We offer the professional after-sale team service
3.E-mail will be get back in 24 hours
4.We have professional knowledge to solve any question
5.We will provided door to door service if you need
