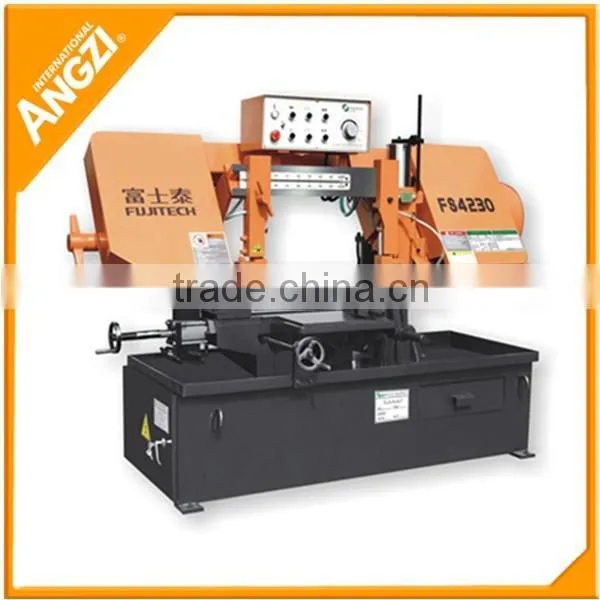

The Excellent Quality of steel rule die cutting machine:
The Specification of steel rule die cutting machine:
Item Model | FS4228 | FS4230 | ||
Capacity(MM) | Round | 280 | 300 | |
Square | W400(300)H200 | W500(400)*H300 | ||
Blade Speed (M/MIN) | 20 35 50 65 (80) | 24 36 45 54 (75) | ||
Blade Size (MM) | L3700*W27*T0.9 | L4115*W34*T1.1 | ||
Blade Tension | Hydraulic Tension/Release | |||
Motor | Blade Drive(KW) | 2.2 | 3.0 | |
Hyd.pump(KW) | 0.38 | 0.75 | ||
Coolant Pump(KW) | 0.04 | 0.04 | ||
Oil Scupper Volume | Hyd. fluid(L) | 20 | 30 | |
Max Feeding Stroke(L) | 50 | 60 | ||
Weight(KG) | 920 | 1200 | ||
Floor Space(MM) | L2000*W920*H1660 | L2180*W1050*H1460 | ||
The Product features of steel rule die cutting machine:
1,Main Technical Parameters:
1.1 Capacity:Round Φ300mm
Spare(W×H) 500×300(mm) / 400×300(mm)
1.2 Blade Speed:24 36 45 54 75
1.3 Blade size:The length is according to the sewing machine; The width is 34mm; The thickness should be less than 1.1mm.
1.4 Motor:Total power is about 4.0 KW
1.5 Install conveniently and perform stably.
2,Function:
2.1 Blade tension:Manual control
2.2 Blade speed adjustment:Belt gear shift
2.3 Chip cleaning:motive power driven steel brush cleaning device
2.4 The worktable for workpiece is 1M in length, simple rack feeding; Electrical feeding(Optional), 2.0M in length
2.5 Front feeding;four feet wheel rack.
3,Machine:
3.1 Weight:about 1200kg / 1100kg
3.2 Floor space(L×W×H):2180×1050×1460(mm) ( 500×300)
2080×1050×1460(mm) ( 400×300)
3.3 Safeguard device according to National safety standard. Noise <85dB(A).
4,Environment condition:
4.1 Power supply:380±10%,50Hz±0.5;
4.2 Temperature:0~40℃
Function and Characteristics
1,Applying hydraulic clamping structure, the workpiece can feed from back or front.
2,Moving the workpiece and positioning by Manual control.
3,Specific Double current valve Oil pressure system,Cutting down speed is controlled by Speed Adjusting Valve. This system can avoid the blade running abnormally
broken, and achieve best cutting effect.
4,Integration design of Worktable and Hinge hole, makes up stable cutting structure.
5,Constant temperature system for whole oil-way makes cutting more stable.
6,Safety device:
A. The machine cannot startup if the material hasn’t clamped the blade well;
B. No-load noise is less than 70dB(A).

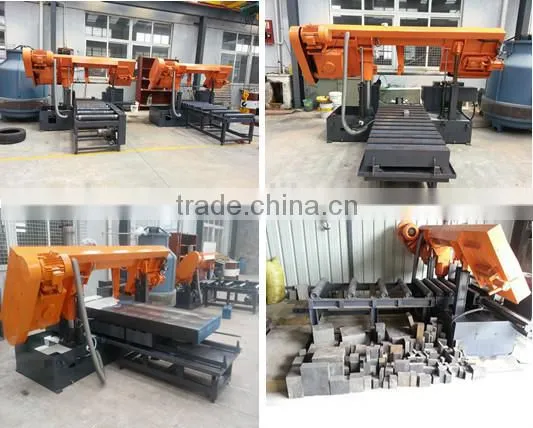

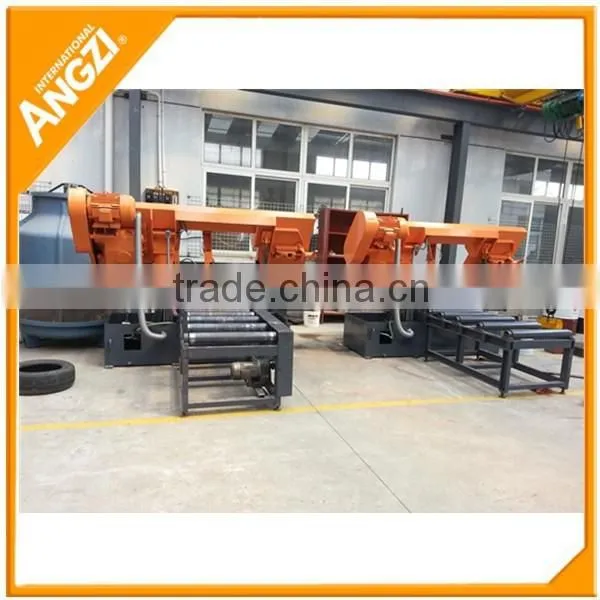

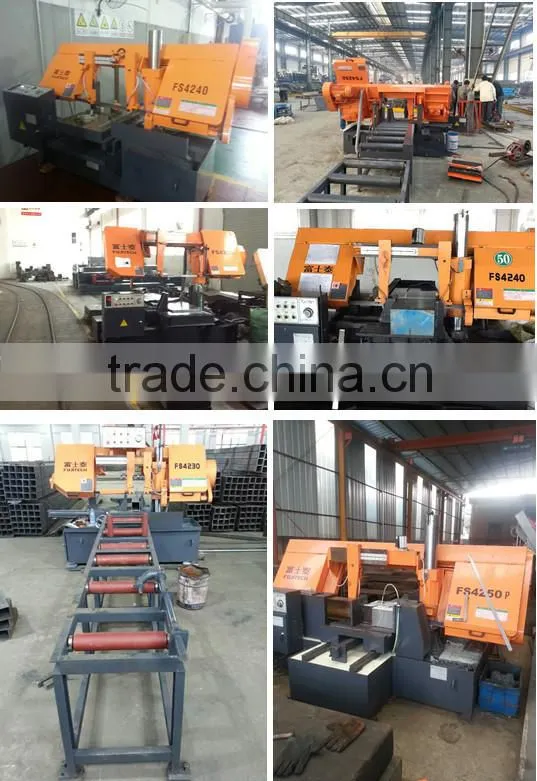

The showing room for

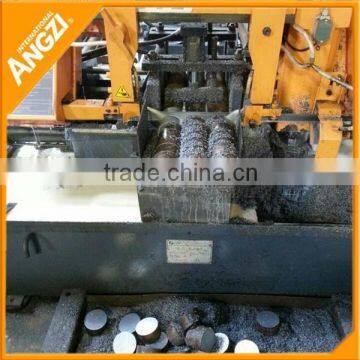

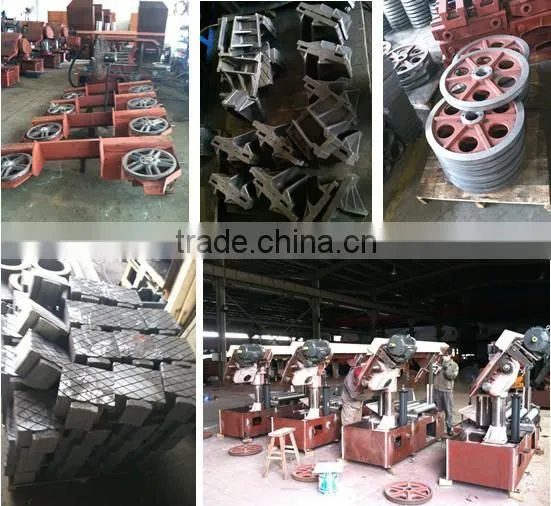

Some parts of steel rule die cutting machine:

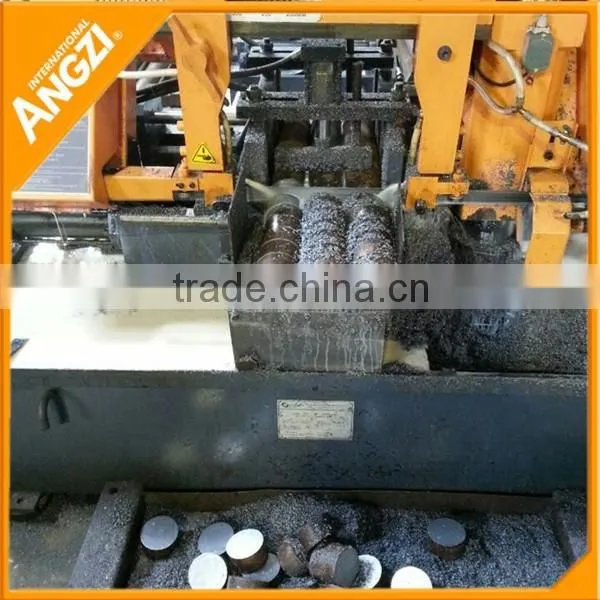

The Cutting Material of steel rule die cutting machine:

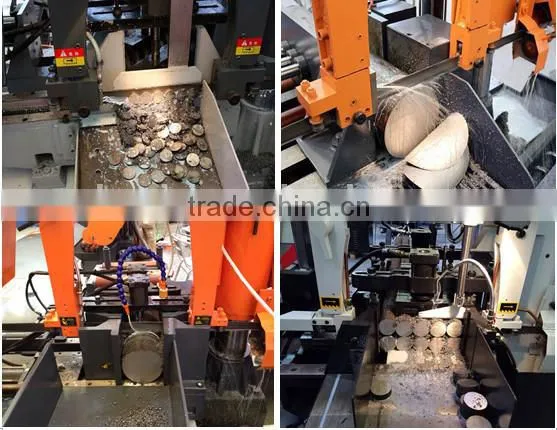

For Round Bar:

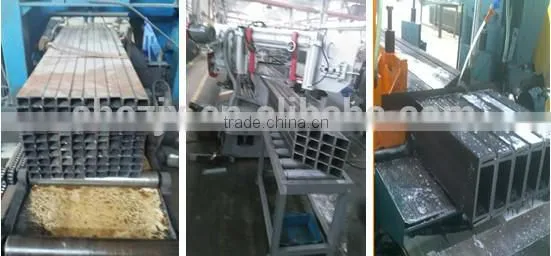

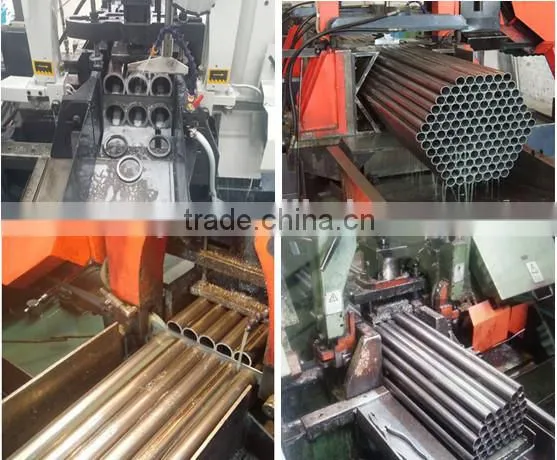

For Square Tube:

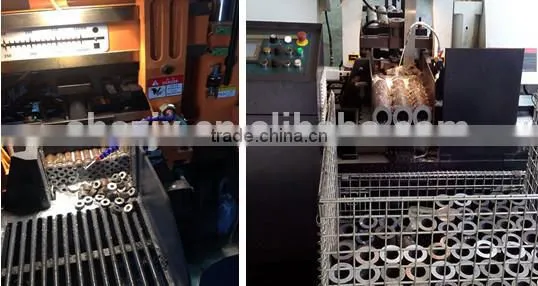

For Pipe:

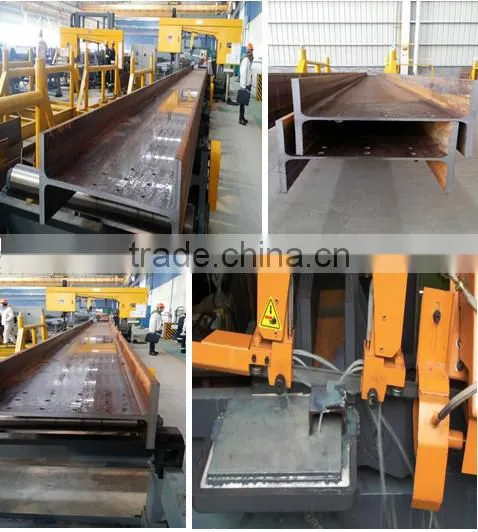

For H-Beam:

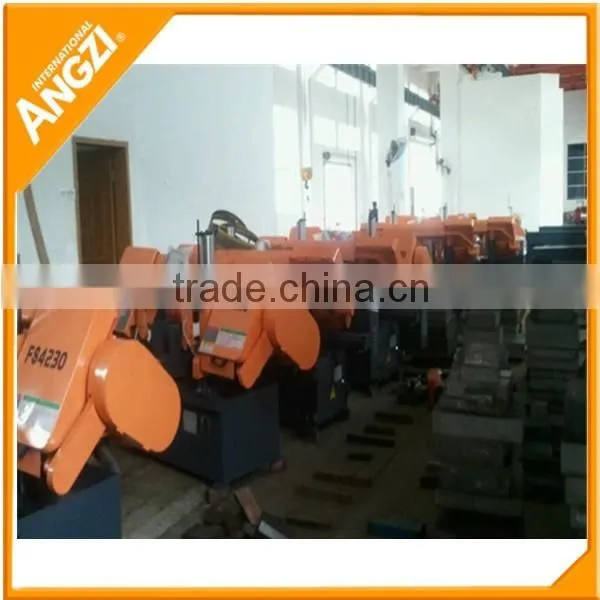

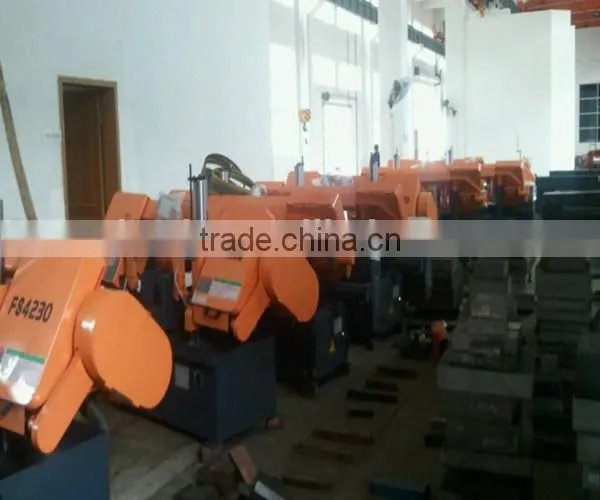

Our Factory for steel rule die cutting machine:
ANGZI manufactures heavyduty, high performance horizontal band sawing machines large horizontal band saws, horizontal miter band saws, CNC horizontal band saws, vertical plate saws, power hacksaws, sawing systems, manual, semi automaticmiter circular cold saws, automatic miter circular cold saws, CNC circular sawing centers, automatic carbide circular cold saws, automatic vertical circular cold saws, etc.
Our Team for steel rule die cutting machine:
Packaging Details: Standard seaworthy packing or According Customer Requirement for steel rule die cutting machine.
Delivery Time:7-10 days after the deposit of steel rule die cutting machine.
Our service for steel rule die cutting machine:
1.Timely delivery with short production period
2..We offer the professional after-sale team service
3.E-mail will be get back in 24 hours
4.We have professional knowledge to solve any question
5.We will provided door to door service if you need
