Home > Products > slurry pump spare parts > Pump Casing Cover for Slurry Pump
Pump Casing Cover for Slurry Pump
- xingang or user advised
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | DK | |
| Model Number | HS | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, MINING | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electric | Pressure | Low Pressure | |
| Application | Other, mining pump |
Product Description
Specifications
Size: 1-18 inchesCapacity: 3-5000m3/h
Head: 5-95m
Material:hi-chrome(Cr18,Cr26,Cr27,and so on), stainless steel, gray iron,
Shijiazhuang Damei Kingmech pump .
Centrifugal single stage, single suction slurry pump.
Horizontal slurry pump are cantileveredcentrifugal pumps,They have been designed for the handling of highly abrasive or corrosive high density slurries, which are widely used in Metallurgical, Mining, Coal, Petroleum&Chmical,Transportation,River&Channel dredging,uilding material and Municipal projects. Its constructon can be divided into following types based on the application ranges.
These are used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc. in the industries of metallurgy, mining, coal, power, building material and etc. The temperature of the pumped solid-liquid mixture should be ≤80oC, and the weight concentration should be ≤60.
Size: 1-18 inches
Capacity: 3-5000m3/h
Head: 5-95m
Material: These products could made by many material, eg. Kinds of hi-chrome(Cr18,Cr26,Cr27,and so on), stainless steel, gray iron, NR,NBR, and so on.

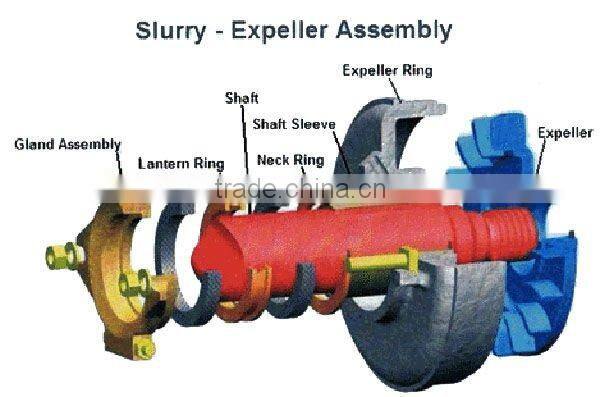

Seal: Packing seal, expeller seal and mechanical seal
40/25HS
HS:Horizontal slurry pump
25:Discharge size (mm)
40:Suction size(mm)

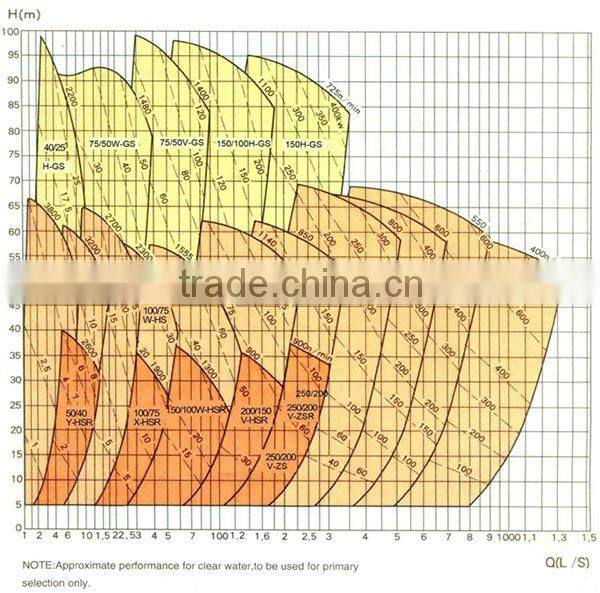

| Type | Max power | Material | Range of performance | Impeller | ||||||
| Liner | Impeller | Capacity(m3/h) | Head m | Speed rpm | Max.eff % | NPSH m | No. Blades | Impeller diametter mm | ||
| 40/25HS | 15 | M | M | 12.6~28.8 | 6~68 | 1200~3800 | 40 | 2~4 | 5 | 152 |
| RU | RU | 10.8~25.2 | 7~52 | 1400~3400 | 35 | 3 | ||||
| 40/25GS | 30 | M | M | 16.2~34.2 | 25~92 | 1400~2200 | 20 | 2~5.5 | 5 | 330 |
| 50/40HS | 15 | M | M | 32.4~72 | 6~58 | 1200~3200 | 45 | 3.5~8 | 5 | 184 |
| RU | RU | 25.2~54 | 5.5~41 | 1000~2600 | 50 | 2.5~5 | 178 | |||
| 75/50HS | 30 | M | M | 39.6~86.4 | 12~64 | 1300~2700 | 55 | 4~6 | 5 | 214 |
| RU | RU | 36~75.6 | 13~46 | 1300~2300 | 60 | 2~4 | 213 | |||
| 75/50GS | 60 | M | M | 68.4~136.8 | 25~87 | 850~1400 | 47 | 3~7.5 | 5 | 457 |
| 100/75HS | 30 | M | M | 86.4~198 | 9~52 | 1000~2200 | 71 | 4~6 | 5 | 245 |
| RU | RU | 79.2~180 | 5~34.5 | 800~1800 | 59 | 3~5 | ||||
| 100/75GS | 120 | M | M | 126~252 | 12~97 | 600~1400 | 50 | 2~5 | 5 | 508 |
| 150/100HS | 60 | M | M | 162~360 | 12~56 | 800~1550 | 65 | 5~8 | 5 | 365 |
| RU | RU | 144~324 | 12~45 | 800~1350 | 65 | 3~5 | 5 | 365 | ||
| 150/100GS | 560 | M | M | 324~720 | 30~118 | 600~1000 | 64 | 3~8 | 5 | 711 |
| 150GS | 560 | M | M | 468~1008 | 20~94 | 500~1000 | 65 | 4~12 | 5 | 711 |
| 200/150HS | 300 | M | M | 360~828 | 10~61 | 500~1140 | 72 | 2~9 | 5 | 510 |
| RU | RU | 324~720 | 7~49 | 400~1000 | 65 | 5~10 | 5 | 510 | ||
| 250/200-ZS | 120 | M | M | 666~1440 | 14~60 | 600~1100 | 73 | 4~10 | 5 | 549 |
| 250/200-HS | 560 | M | M | 612~1368 | 11~61 | 400~850 | 71 | 4~10 | 5 | 686 |
| RU | RU | 540~1188 | 12~50 | 400~750 | 75 | 4~12 | ||||
| 300/250HS | 560 | M | M | 936~1980 | 7~68 | 300~800 | 82 | 6 | 5 | 762 |
| RU | RU | 720~1620 | 7~45 | 300~650 | 80 | 2.5~7.5 | ||||
| 350/300HS | 560 | M | M | 1260~2772 | 13~63 | 300~600 | 77 | 3~10 | 5 | 965 |
| RU | RU | 1152~2520 | 13~44 | 300~500 | 79 | 3~8 | ||||
| 400/350HS | 1200 | M | M | 1368~3060 | 11~63 | 250~550 | 79 | 4~10 | 5 | 1067 |
| 500/450HS | 1200 | M | M | 2520~5400 | 13~57 | 200~400 | 85 | 5~10 | 5 | 1370 |
