High Flow High Head Pumps

Shijiazhuang Damei Kingmech Pump Co.,Ltd

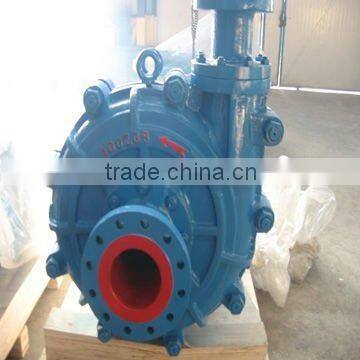

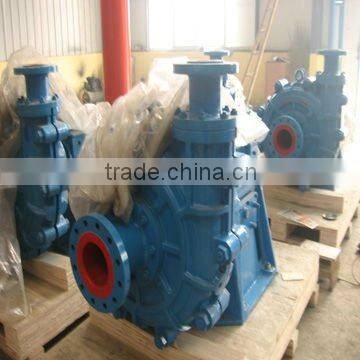

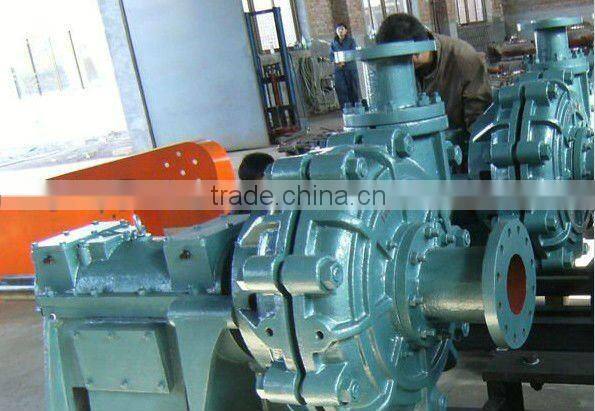

In order to meet the requirements on the development of the electric power, metallurgy and coal industries, our works has designed and developed Series ZGB(P)Up-to-date Generation Slurry pump with large capacity, high head, multi-stages in series to remove ash&sludge and to deliver liquid-solids mixture, based on the experience of slurry pump design from home and abroad. The main technical features of this pump are as follows:

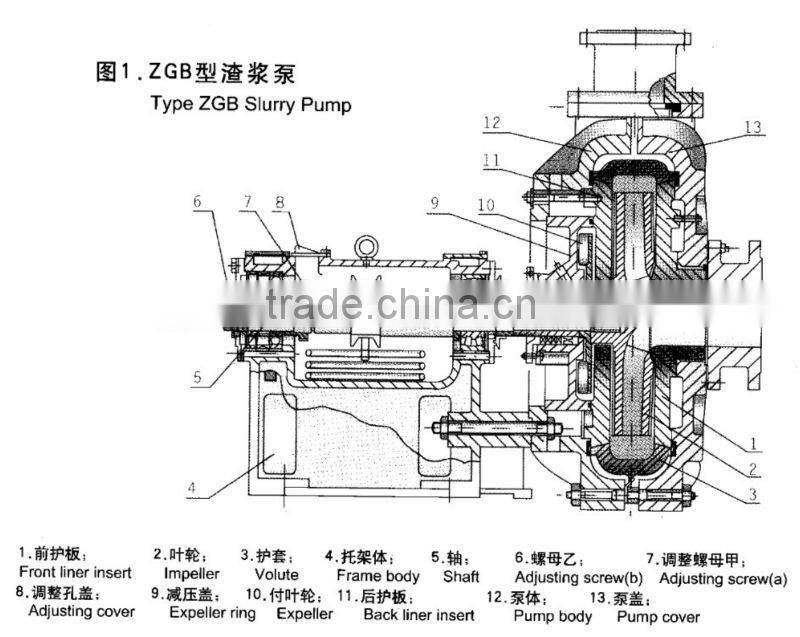

1.type 150 ZGB slurry pump

2.outlet diameter 150mm

3.speed 980 r/min

4.capacity 182.4 m3/h

5.head 73 m

6.eff 77.7%

7.NPSH 3.3m

8.power on shaft 168kw

-CAD modern design, super hydraulic performance, high efficiency and lower abrasion rate;

-Wide passage, non-clogging and good performance of NPSH;

-Expeller seal combined with packing deal and mechanical seal have be adopted to guarantied the slurry from leakage;

-Reliability design ensures long MTBF(mean time between events);

-The metric bearing wit h oil lubrication, reasonable lubrication and cooling systems ensure the bearing to be operated under the low temperature;

-The materials of wet parts have the good performance of anti-wearing and anti-corrosion;

-The pump can be used for seawater ash-removing to prevent it from the corrosion of seawater, salt and mist, and electrochemical corrosion;

-The pump can be operated in series with multi-stage within permissible pressure.

Shijiazhuang Damei Kingmech Pump Co.,Ltd prodessional manufacture series ZGB slurry pumps, series ZJ pumps, M AH HH slurry pumps, gravel pumps , sand pumps, mud pumps, chemical pumps, sewage pumps, sump pumps, resistant pumps, liquid pumps, industrial pumps, coal pumps, and slurry pump parts
