Specifications
SINCOLA Horizontal Coulter Mixer /Plow mixer , coulter mixer , high shear mixer1 widely used in industries such as pharmaceuti

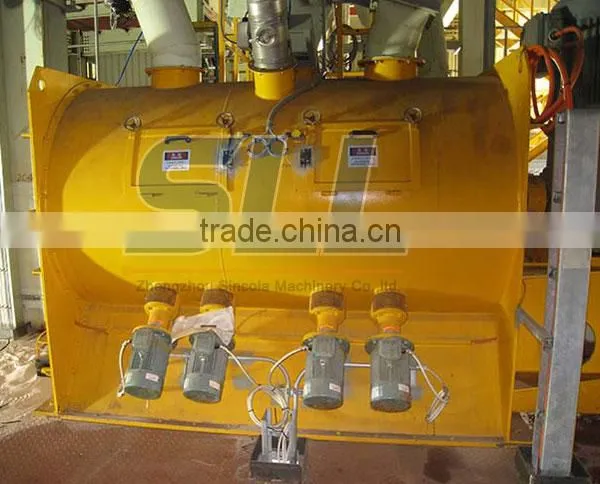

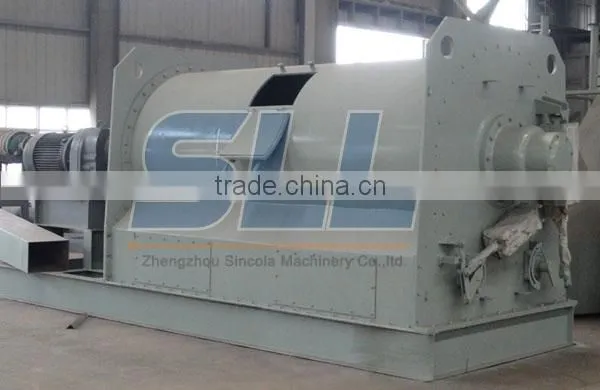

SINCOLA Horizontal Coulter Mixer /Plow mixer , coulter mixer , high shear mixer
Model |
Output(t/h) |
power(kw) |
Overall dimensions(mm) |
||
L |
W |
H |
|||
SLD-1 |
8-10 |
11 |
2700 |
1584 |
1756 |
SLD-2 |
15-20 |
18.5 |
3300 |
1584 |
1756 |
SLD-4 |
35-40 |
55 |
4800 |
1700 |
2200 |
SLD-6 |
55-60 |
75 |
5168 |
2100 |
2398 |
SLD-8 |
80-90 |
75 |
5340 |
2383 |
2608 |
1) Horizontal Coulter Mixer /Plow mixer , coulter mixer , high shear mixer working principle:
* After mixing machine start coulter by coulter axis rotation, made material along barrel radial circumferential turbulent, at the same time on both sides of the material along the coulter surface normal direction.
* When thrown and materials for weeks to turbulent flows through fly knife set, by high speed rotating knife fly quickly and effectively scatter.Materials in the compound under the action of the coulter and throwing knives, constantly more fold, diffusion, in a short period of time to achieve uniform mixing, mixed with high precision.
* For the material that need to be mixed solid - liquid, mixed liquid through spray device evenly sprayed on the cylinder body movement of the material.
2) Horizontal Coulter Mixer /Plow mixer , coulter mixer , high shear mixer Structural characteristics:
It mainly composed of transmission part, horizontal tube, Jane coulter group axis, fly knife set, the discharge valve, spray device, such as department see live.
Zhengzhou Sincola Machinery Co.,Ltd is a stated- designated manufacturer and exporter of road and building construction machineries. We are the one of the big manufacturer and supplierin China .
Our products are Shotcrete machinery and Concrete Pump,Plaster Machine,Mortar Pump,Spraying Machine,Industrial Hose Pume,Grouting Pump,Automatic rendering machine. Also we are the manufactur,supplier and exporter of semi-automatic and full-automatic dry motar mixing plants.large and medium size of concrete mixing plants.
Our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.
Our products are well known to international market such as Russia, UzbekistanRussia,Uzbekistan,Cyprus,Algeria,Cameroon,Macedonia,Malaysia,Austrialia,Yemen,Oman etc.
Our products have widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operation,hydropower projects and slope stabilization.
