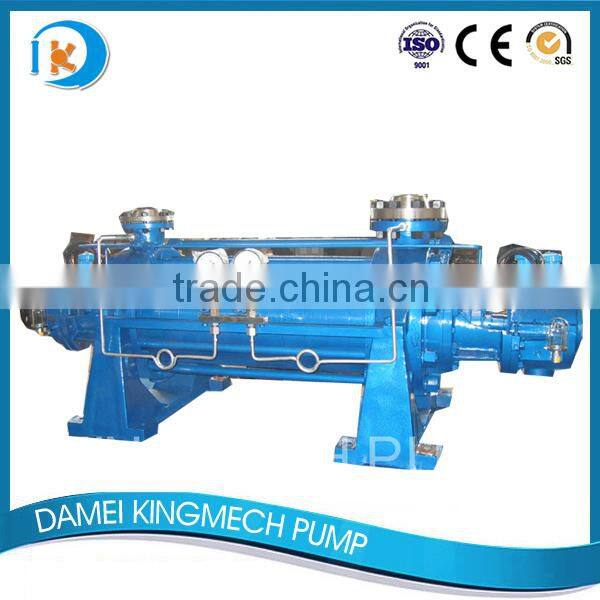

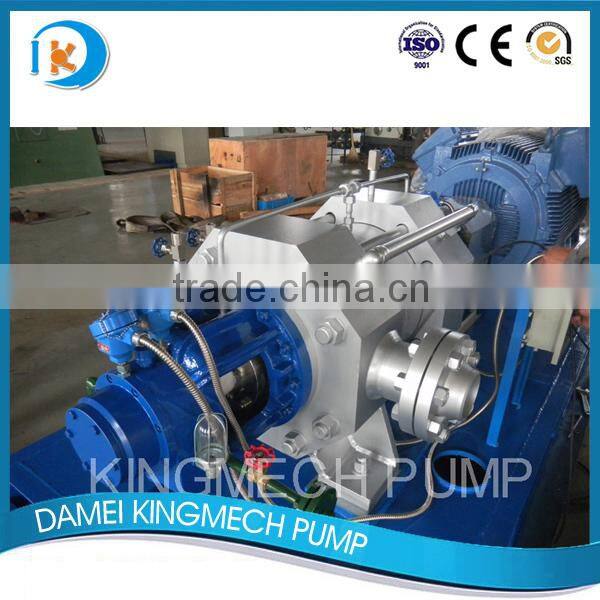

API610 Centrifugal Chemical Pump Radial Split Single Volute Multistage Pump
US$ 1,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
KINGMECH PUMP
Model Number:
BB4
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API610 Axially Split Pump Horizontal Water Treatment Centrifugal PumpUS$ 4,000 - 8,000MOQ: 1 Set -
API610 Standard Chemical Centrifugal Radially Split Muti-stage Duty Industry PumpUS$ 1,000 - 2,000MOQ: 1 Set
-
API610 BB4 PUMP Radially Split Muti-stage DutyUS$ 1,000 - 2,000MOQ: 1 Set
-
API610 Standard BB4 PUMP for Industry Water Radially Split Muti-stage TypeUS$ 1,000 - 2,000MOQ: 1 Set
-
API610 Standard Chemical Radially Split Muti-stage Duty Industry PumpUS$ 1,000 - 2,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
KINGMECH PUMP
Model Number
BB4
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Other, industry water supply
Power
Hydraulic
Standard or Nonstandard
Nonstandard
Fuel
Other, electric/Desiel
Pressure
High Pressure
Application
Other, chemical water supply, water supply
Product Description
Product Details
Performance curve:
Size: 4-10 inches
Capacity: 100-580 m3/h
Head: 740-2150m
Temperature: 0-210 °C
Material
1.Suction casing ,discharge casing, diffuser, and impeller: carbon steel ,chrome steel.
2.Shaft, wear ring and diffuser bush: chromic alum steel , chrome steel.
Construction
1.The pumps are sectional casing, multi-stage centrifugal pumps. The suction casing, stage casing and discharge casing are rigidly held together by the bolts. The joints between these casing are primarily sealed by means of metal-metal contact. Simultancously ,o-rings are used as auxiliary seals.
2.The forged pieces are used for the suction ,stage and discharge casings of type MSHB pressure boiler feed pumps.
Shaft sealing
1.The shafts of these pumps are sealed by soft-packing and cooling water . In the region of shaft sealing ,the pump shaft is protected by renewable sleeve.
Bearings and axial balancing device
1.The rotating assembly is supported by sliding bearings on both ends of the pump shaft . Bearings of pump are forced-lubricated. The oil system is equipped for type DG pump. The axial thrust of rotor osis balanced by balance disc. And the thrust bearing is laso provided which is rsed to bear residral axial force caused by the change of working conditions.
Drive
1.The pump is directly driven by the motor through the coupling. The gear, membrane coupling and hydraulic coupling can be used according to client’s requirements. The pump can be driven by turbine of motor.
2.The rotating direction of pumps are clockwise when viewed fron the driving end.
1.Type MSH high pressure boiler feed pumps are used for feeding high pressure boiler of pumping high pressure clean water.

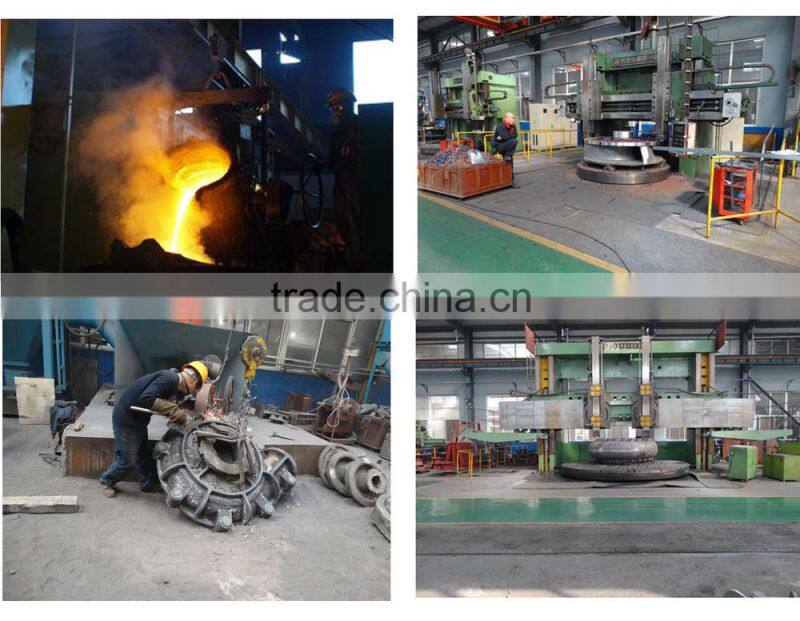

Factory touR
KINGMECH PUMP FACTORY TOUR

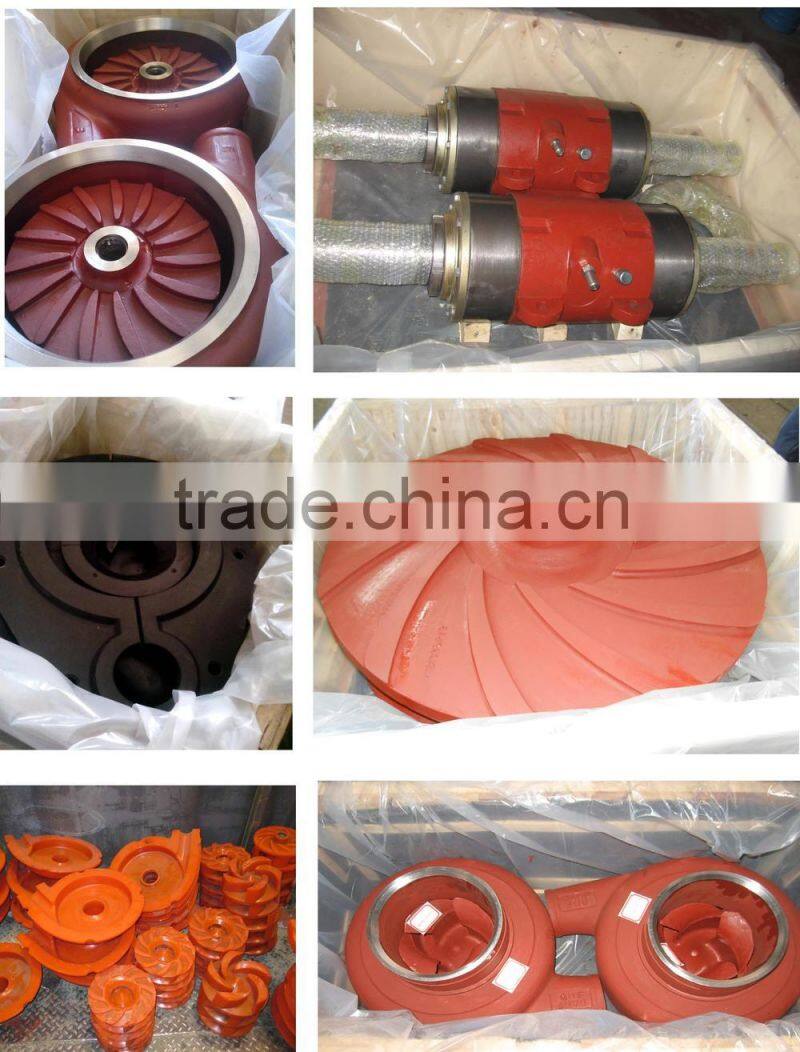

Package & Delivery
