DC12-24V Touch Panel rgb led controller

DC12-24V Touch Panel rgb led controller

Summarization

   Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, panel lights etc.,it has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.

Technical Parameters

 working temperature: -20-60 °C

 supply voltage: DC12-24V

 output: 3 channels

 connection mode: common anode

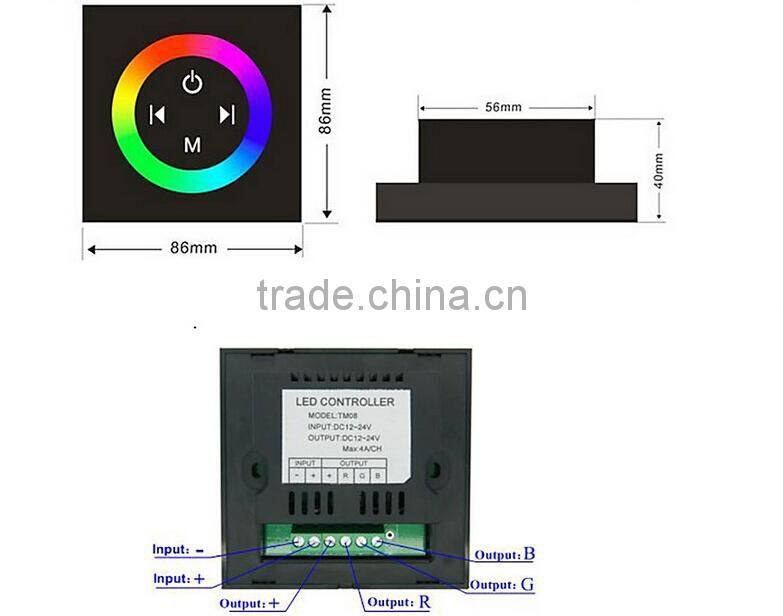

 external dimension: L86 Χ W86 Χ H36 mm

 packing size: L115Χ W110 Χ H56 mm

 net weight: 128g

 gross weight: 187g

 static power consumption: <1W

 output current: <4A( each channel )

 output power: 12V<144W,24V<288W
