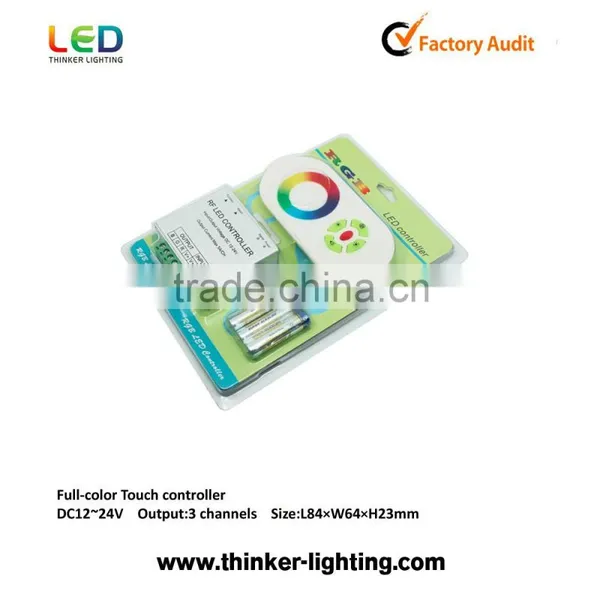

Good quality full color RGB touch led controller
Technical Parameters
Controller
working temperature: -20-60℃
supply voltage: DC12V-24V
output: 3 channels
connection mode: common anode
external dimension: L84 Χ W64 Χ H23mm
packing size: L200 Χ W146 Χ H36mm
net weight: 78g
gross weight: 200g
static power consumption: <1W
output current: <5A (each channel)
output power: 12V:<180W, 24V:<360W
Touch Remote Control
working temperature: -20-60℃
power supply mode: AAA * 3
supply voltage: 1.5V * 3
transmission frequency: 433.92 Mhz
standby power consumption: 0.015mW
standby current: 3uA
working current: 200uA
emission current: 10mA
remote distance: about 30m
standby time: 6 months
remote control weight: 85g

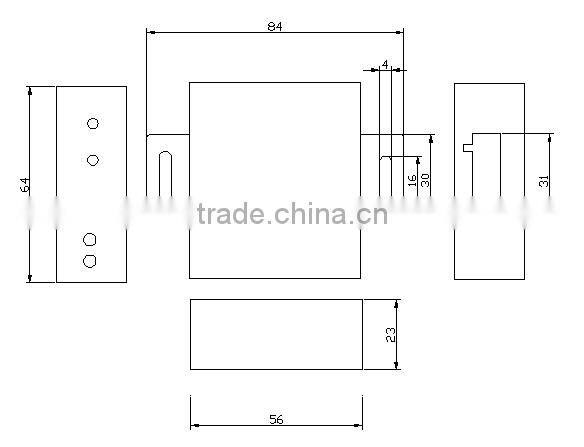

External Dimension (mm)
Control Descriptions

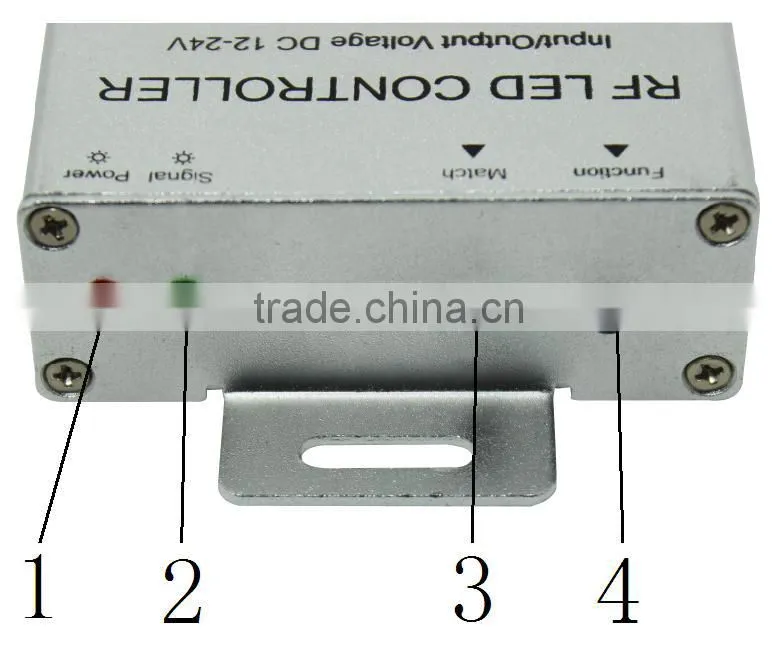

Button indicator descriptions
1. Power: power indicator, it lights when connected with external power supply;
2. Signal: RF signal indicator, it flashes when receiving correct remote control signal;
3. Match: match code and clear code key, clear code: hold the key power on, clear code all the same type of remote control can be remote control. Match code: Press the key during work process, it executes match code operation , after matching code, only the remote control with the same address code can be used for controlling;
4. Function: on/off and mode key, long press the button, you can turn on/off the output of controller, short press the button, you can switch the mode;

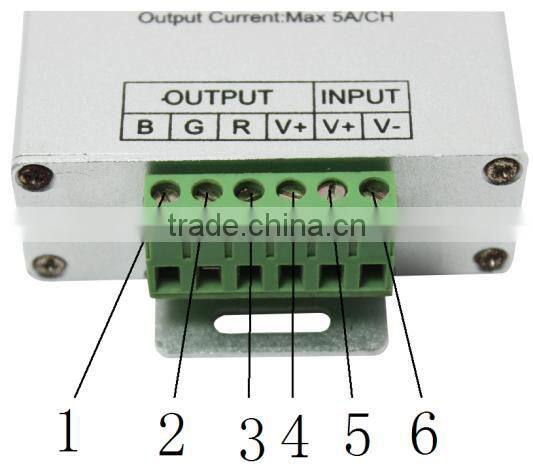

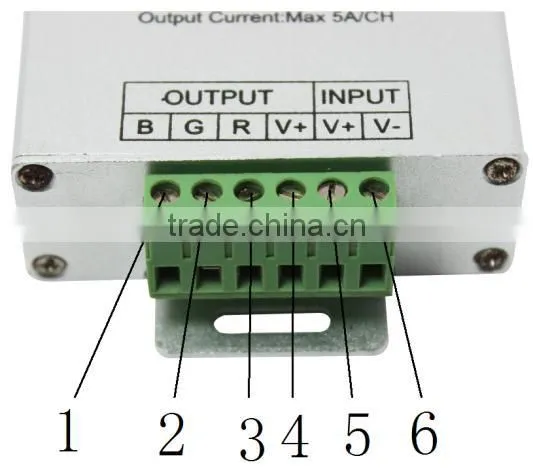

Terminals description

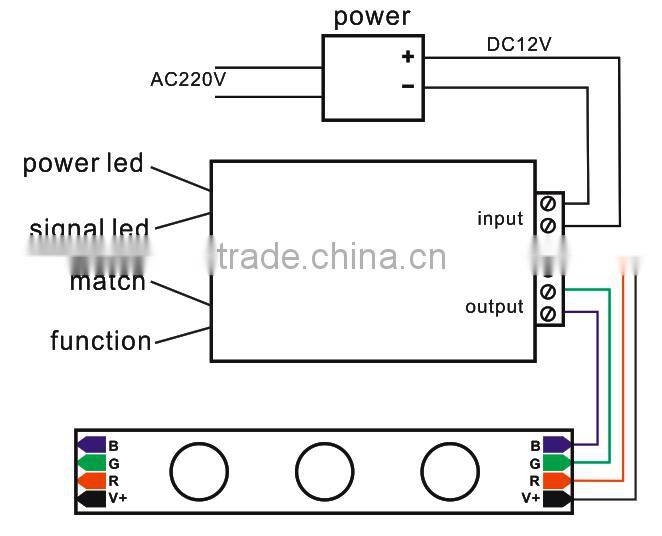

Typical Application
NOTE OF LED CONTROLLER :
1 Please install the products by professional electrician
2 This product can not waterproof, please put into water-proof tank if the clients want to use it outdoor
3 Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temper-ature
4 Please don't install this controller in lightening, intense magnetic and high voltage fields
5 Check if the voltage and power adapter suit the controller and LED lights.
6 Please make sure the wires can sufficiently load the LED lights for avoiding accident.
7 Please make sure all the wires are connected correctly before switching on the power.
Delivery way :
We choose DHL,Fedex,UPS or TNT according to customers requirements;
By air or by sea is ok.
Thinker Lighting Profile:
1) We are a large LED lighting manufacturer for 7 years
2) We founded in 2008 and already established 3 factories and 1 trading company
3) We specialize in producing LED lights, such as LED Rope Lights, Rope Lights, LED Panel light,LED Controller,LED tube,LED downlight..
4) We focus on Quality manufacture our lights in accordance with CE,GS, RoHS ,SAA ,TUV certification
5) We meet and exceed global quality standards
6) We now ship well over half of our output to countries and regions worldwide
Factory view:
