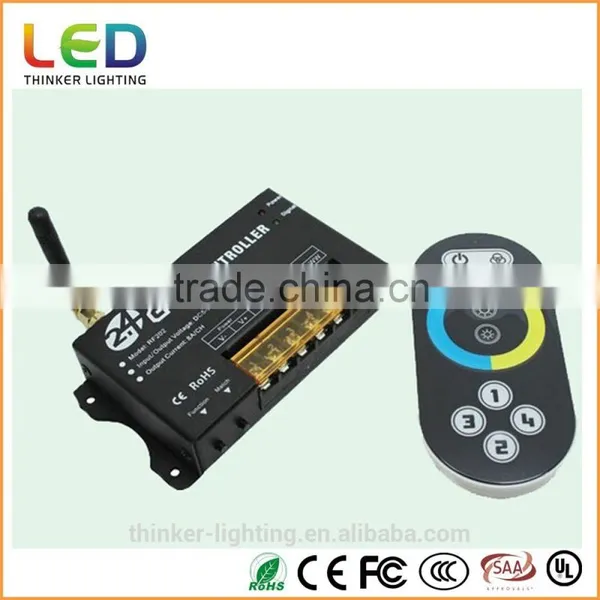

2.4G RF LED touch dimmer, one remote control to four receivers
working temperature: -20-60°C
supply voltage: DC5V-24V
output: 1 channels
connection mode: common anode
external dimension: L120ΧW62ΧH24mm
packing size: L185ΧW145ΧH52 mm
net weight: 220g
gross weight: 314g
static power consumption: <1W
output current: <16A
output power: 12V:<192W, 24V:<384W
Touch Remote Control
working temperature: -20-60°C
power supply mode: AAA * 3
supply voltage: 1.5V * 3
transmission frequency: 2.4Ghz
standby power consumption: 0.015mW
standby current: 60uA
working current: 200uA
emission current: 10mA
remote distance: about 30m
standby time: 6 months
2.Summarization
2.4G controller is newly introduced wireless high-power LED controller of our company. It equips
with touch remote control, touch remote control adopts high precision capacitance touch control
technology, you can select the color you need by one button. It is convenient and easy.
No. |
Brightness |
Remarks |
1 |
100% |
Brightness is adjustable |
2 |
90% |
|
3 |
80% |
|
4 |
70% |
|
5 |
60% |
|
6 |
50% |
|
7 |
40% |
|
8 |
30% |
|
9 |
20% |
|
10 |
10% |
1. Antenna: 2.4G remote control signal receiving antenna;
2.Function: on/off and mode key, long press the button, you can turn on/off the output of controller, short press the button, you can switch the mode ;
3.Match: match code key, refer to 4 for use methods; clear code, in the process of using controller, if you no longer want to use the remote control that already code, then you can achive it by clearing code, methods of operation: controller is powered off, press and hold “Match” key, then power on, test it with remote control, if you could not control with the remote control, indicates the operation is successful, otherwise repeat this operation.
4. DIP: as shown in Figure 3. It is used for matching four groups of address codes of the controller.
5. Power: power indicator, it lights when connected with external power supply;
6. Signal: RF signal indicator, it flashes when receiving correct remote control signal;
7.Input/ Output interface: the controller power supply input and load output port, please refer to Figure 4 and Table 1 for detailed description
