Eight Dynamic Modes Three Button Mini Rgb Led Controller

Eight Dynamic Modes Three Button mini rgb led controller

Working temperature: -20-60°C

Supply voltage: DC5-24V

Output: 3 channels

Connection mode: common anode

Controller dimension: L35.0 × W15.0 × H4.5mm

Packing size: L155.0 x W50.0 x H13.5mm

Net weight: 11g

Gross weight: 15g

Static power: <0.5W

Output current: <2A (each channel)

Output power: 5V < 30W, 12V < 72W, 24V <144W

Summarization

This controller adopts the advanced micro control unit. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on. It has many advantages such as low price, easy connection, simplicity to use and others, etc. According to the customers’ needs, it can realize gradual change, fadein dimming, jumping change, flicker,quick flash and other varieties of static color lighting effects. It is easy to take, simple to use, etc.

Direction for use

The line sequence of the controller is RGB, the color will be changed in other sequence if it is in other line sequence. This controller has 3 keys and power-fail memory.

MODE key: Switch to dynamic mode for the first time, and switch between the 21 dynamic modes by every pressing. Modes table as below:

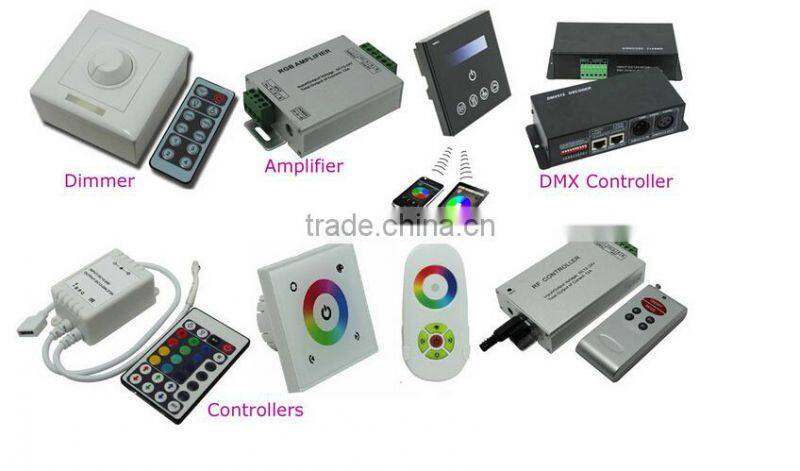

Relatetive controllers :
