Specifications

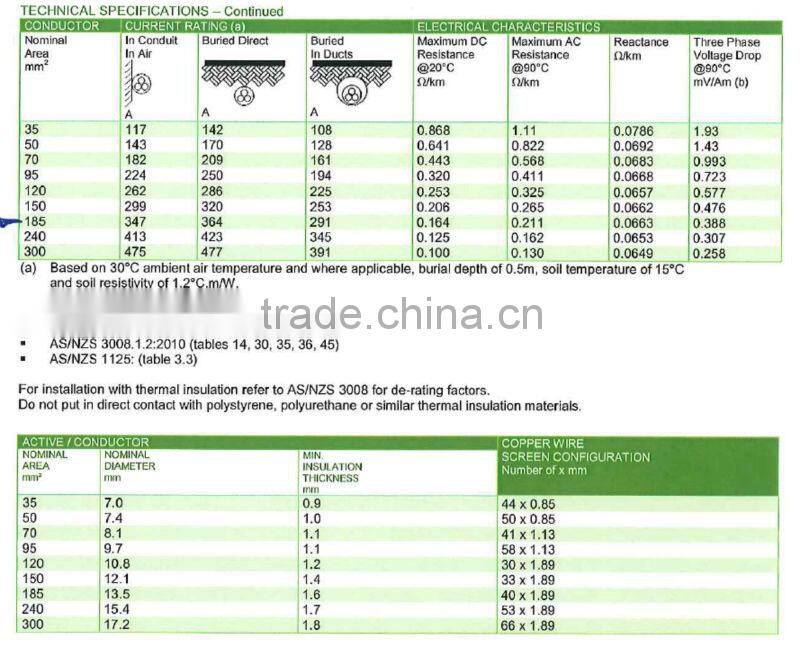

Content from AS/NZS 3008.1.2:2010 has been reproduced with the permission from Standards New Zealand

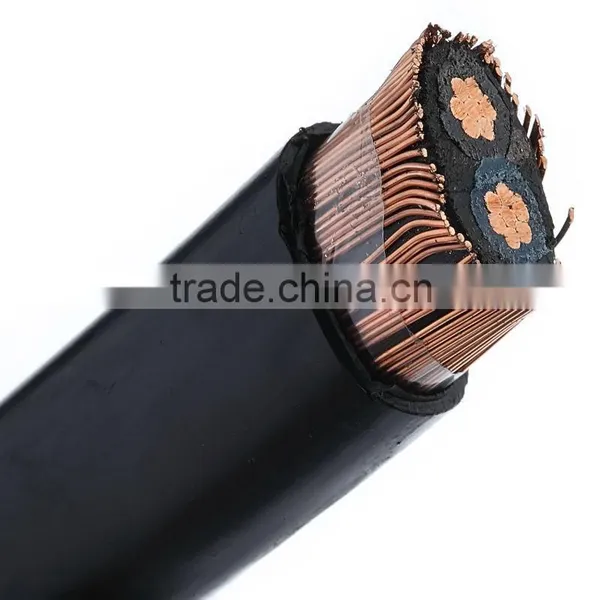

Construction: copper or al conductor, XLPE insulated, copper wire screen, copper tape screen, PVC or HDPE, or PE sheath.
Size: 50mm2 95mm2, 70mm2, 185mm2, 240mm2 etc.
Standards: IEC, BS, DIN, ASTM, CSA, etc.
we also supply the OEM and can design and manufacture according to customers' reqeust.
Features: 1. The long-term permissible operation temperature of the conductor shall not be higher than 70°C. 2. The max temperature of the conductor of cable should less then 160 °C when short circuit. (less then 5 second). 3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0°C. 4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame resistant
5. Light weight, perfect bending properties, installed and maintained easily and conveniently. 6. Rated voltage: 0.6/1kV, 3.6/6kV. 7. Number of cores: One, two, three, four, five.
8.Cable laying, bend radius≥10 times cable O. D.
Package:In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.Welcome your request for any quotations!
