Specifications
1. 6-35 KV XLPE Cable2. XLPE Insulated and PVC sheathed
3. 20 years' production experience
4. ISO and CE certified

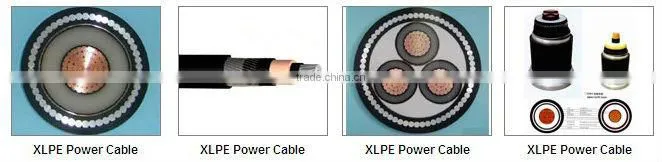

6-35 KV XLPE Insulated PVC Sheathed Power Cable
Production Standard
GB/T12706.2-12706.3-2002eqv
IEC 60502:1997
Usage
This cable is suitable for rated AC voltage6-35KV system transmitting and distributing lines. According to
different sheath make ups, they can be used in laying in the air( cable bridges, indoor wall support and groove
boxes) and in soil (direct burying, cable canals and pipelines, etc.)
Cable types, names and applications
Type |
Name |
Application |
|
YJV YJLV ZR-YJV ZR-YJLV |
Cu or Al conductor XLPE insulation PVC sheath power cable. |
Used indoor or outdoor unable to bear external mechanical forces, but the tractive force during laying ,laying single core cable in magnetic duct is not permissible. |
|

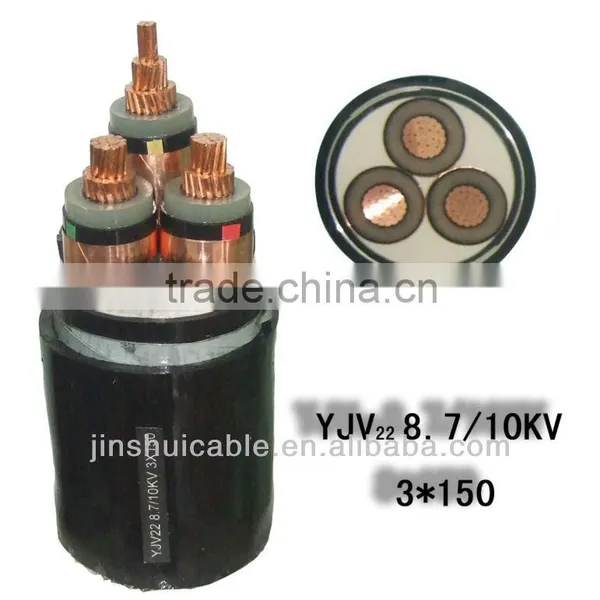

YJV22 YJLV22 ZR-YJV22 ZR-YJLV22 |
Cu or Al conductor XLPE insulation PVC sheath steel tape armoured power cable. |
For laying in ground ,able to bear external mechanical forces, but unable to bear large pulling force. |
|
Type |
Number Of core |
Rating voltage(KV) |
|||||||
|
3.6/6 6/6 |
6/10 8.7/10 |
12/20 18/20 |
21/35 26/35 |
||||||
Nominal Cross-section Area of Conductor | |||||||||
|
YJV ZR-YJV |
1 |
25-630 |
25-630 |
35-630 |
50-630 |
||||
|
YJLV ZR-YJLV |
25-800 |
25-800 |
35-800 |
50-800 |
|||||
|
YJV ZR-YJV |
3 |
25-500 |
25-500 |
35-500 |
50-500 |
||||
|
YJLV ZR-YJLV |
25-500 |
25-500 |
35-500 |
50-500 |
|||||
|
YJV22 ZR-YJV22 |
3 |
25-500 |
25-500 |
35-500 |
50-500 |
||||
|
YJLV22 ZR-YJLV22 | |||||||||
Notes when laying cables
Single core cable are not allowed to be laid in iron pipes.
Steel wire armored single core cable adopts magnetism-insulation make ups to reduce magmetic loss
for stee wire armor and the armored tapes adopt stainless or aluminium tape.
Package and Delivery
International wooden drum or as required
20 working days' delivery time after the deposit received
