Specifications
stone crusher plant1. stone crusher for mining and quarry
2. Manufacturer
3. Large capacity & long using life
4. CE, IS

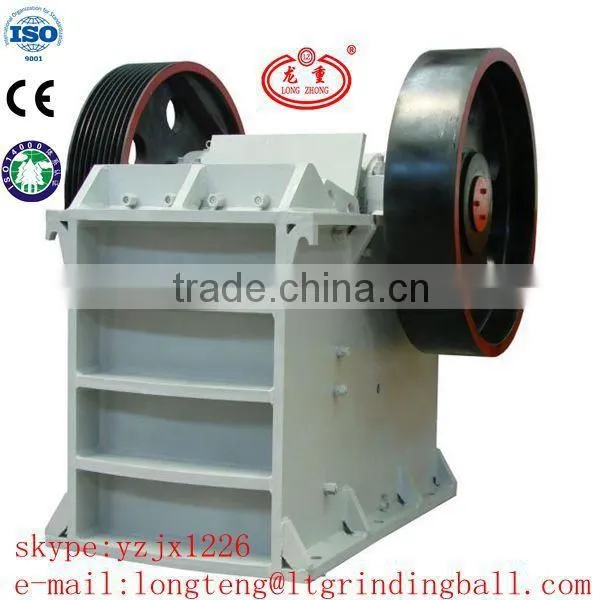

China Top Stone Crusher Plant With High Quality
PE Jaw Crusher is the successful experience in similar products at home and abroad, for mining, smelting, building material, highway, railway, water conservancy, road construction and other industrial sectors quarries, The product specification is complete, the feed size from 80-850 mm.

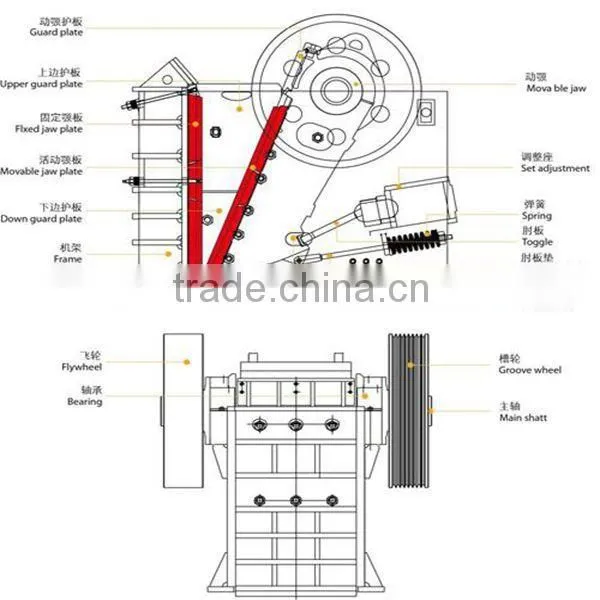

Working principle:
The motor transmits through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when mobile jaw moving.So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
Features of Jaw Crusher:
1.Its motor drives the eccentric shaft to rotate via V-belt .
2.Two types:coarse crusher and fine crusher.
3.Movable jaw to carry out periodical complex pendular movement to generate crush capacity.
Technical parameter :
Model |
Feed Opening |
Max. Feed Size |
Capacity |
Power |
Discharge Opening |
Overall Dimension |
PE-150×250 |
150×250 |
125 |
1-5 |
5.5 |
10-40 |
758×758×794 |
PE-250×400 |
250×400 |
210 |
5-20 |
15 |
20-60 |
1500×1400×900 |
PE-400×600 |
400×600 |
340 |
16-65 |
30 |
40-100 |
1700×1800×1600 |
PE-500×750 |
500×750 |
425 |
50-100 |
55 |
50-100 |
1980×2080×1870 |
PE-600×900 |
600×900 |
500 |
50-120 |
55 |
65-160 |
2395×1843×2230 |
PE-750 ×1060 |
750×1060 |
630 |
52-180 |
110 |
80-140 |
2775×2426×2840 |
PE-800×1060 |
800×1060 |
640 |
136-230 |
110 |
100-200 |
2500×2472×2810 |
PE-900×1200 |
900×1200 |
750 |
140-260 |
110 |
95-165 |
3400×3200×3500 |
PE-1000×1200 |
1000×1200 |
850 |
315-342 |
110 |
195-265 |
3335×3182×3430 |
PE-1200×1500 |
1200×1500 |
1020 |
400-800 |
160 |
150-300 |
4200×3732×4620 |
PEX-250 ×750 |
250×750 |
210 |
15-30 |
22 |
15-70 |
1400×1300×1350 |
PEX-250×1000 |
250×1000 |
210 |
16-52 |
30 |
25-60 |
1600×2000×1500 |
PEX-250 ×1200 |
250×1200 |
210 |
20-60 |
37 |
25-60 |
1900×2200×1500 |
PEX-300×1300 |
300×1300 |
260 |
30-70 |
55 |
30-90 |
1800×2300×1700 |
Exporting standard as you requested for jaw crusher and saft shipping
1.Select equipment model;
2.Design and manufacture products according to customers’ special requirement;
3.Train technical personnel for clients;
4.Assist clients to prepare for the first construction scheme;
5.Install and debug the equipment;
1970 saw the foundation of Zhangqiu Long Teng Cement Machinery Making Co.,Ltd. we set research and producing, sales and service in one by introducing of foreign advanced technology.
1. Do you know the granularity of the material?
2. Do you know the final size of products ?
3. What's the producing capacity that do you need?
Welcome to our factory!
Feel free to contact us if need more informations about our product!
Ms. Dannie Yuan( +86-18678807296)
Zhangqiu Long Teng Cement Machinery Mking Co.,Ltd
Add: Niuyi Industrial Park, Xiuhui Town,Zhangqiu City,Jinan,China
Tel: +86-0531-61328855 Fax: +86-0531-61328855
