Rubber Sheathed Flexible Mining Rubber Cables

Rubber Sheathed Flexible Mining Rubber Cables thumbnail-1
Rubber Sheathed Flexible Mining Rubber Cables photo-1
US$ 0.5 - 3 MOQ: 10000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
JINSHUI
Model Number:
JS-RC02
Contact Supplier Request Quote Chat Now
Henan Jinshui Cable Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN QINGDAO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name JINSHUI
Model Number JS-RC02
Insulation Material XLPE
Type High Voltage
Application Mining
Conductor Material Copper
Jacket PVC

Specifications

Rubber Insulated and Rubber Sheathed Mining Flexible Cable
This product is the rubber sheath flexible cables series used in co

Rubber Insulated and Rubber Sheathed Mining Flexible Cable









Product Description



Specifications

1 IEC, ASTM, DIN, BS standard
2 ISO,CCC certification
3 Response within 12 hours
4 Free Sample
5 On time delivery

MCP,MYCPT,MYQP,Flexible Rubber Mining Cable

This product is the rubber sheath flexible cable series used in coal-mining. It is  for rated voltage Uo/U 0.38/0.66 and Uo/U 0.66/1.14kV used in coal mining machines installation equipment to connect power supply . It can be shifted as you like .

Operating characteristics:
1.The rated power frequency voltage U0/U: 0.38/0.66KV, 0.66/1.14KV
2.Permissible operating temperature:-35°C to 65°C.
3.The mininm bending radius is over 6times of cable
 diameter
4.The yellow sheath cable should not be exposed in  the sun for long





Usage:

1.This rubber sheathed flexible cable used in coal-mining .Power supply connection of coal mining machine and similar equopments .

2.Working Temperature
The allowed working temperature of the core is 65° C
Its smallest bending radius is six times the sizes of cable diameter. The yellow sheath cable should not be exposed in the sun for long.

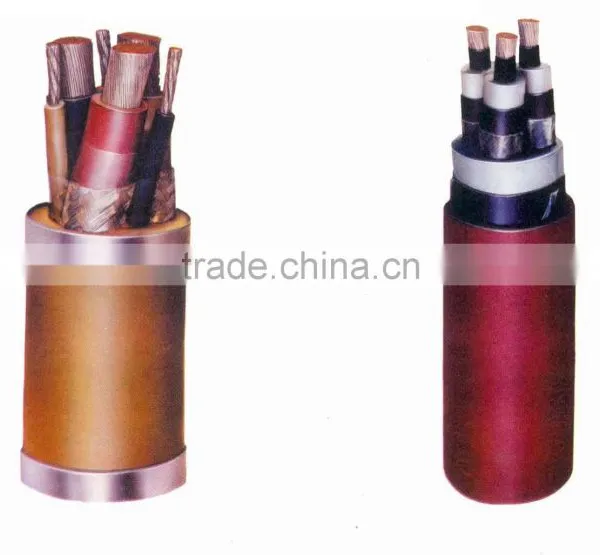

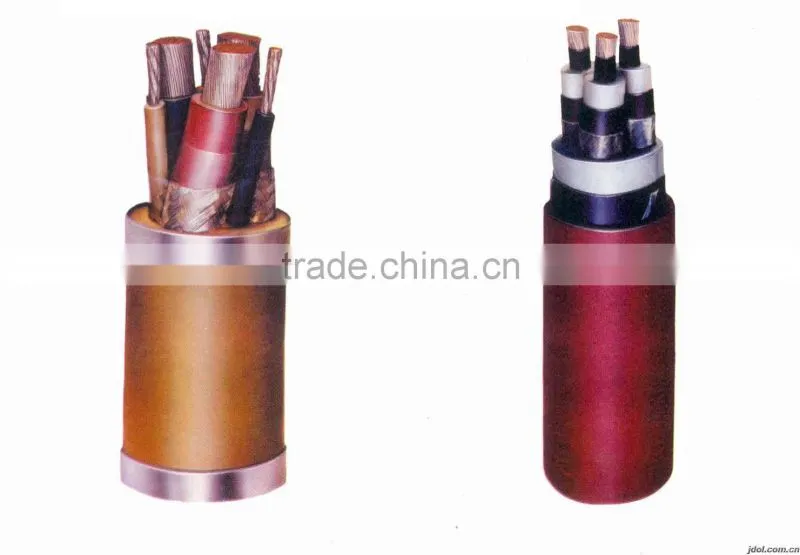

Product Photo :

Rubber Sheathed Flexible mining rubber cables

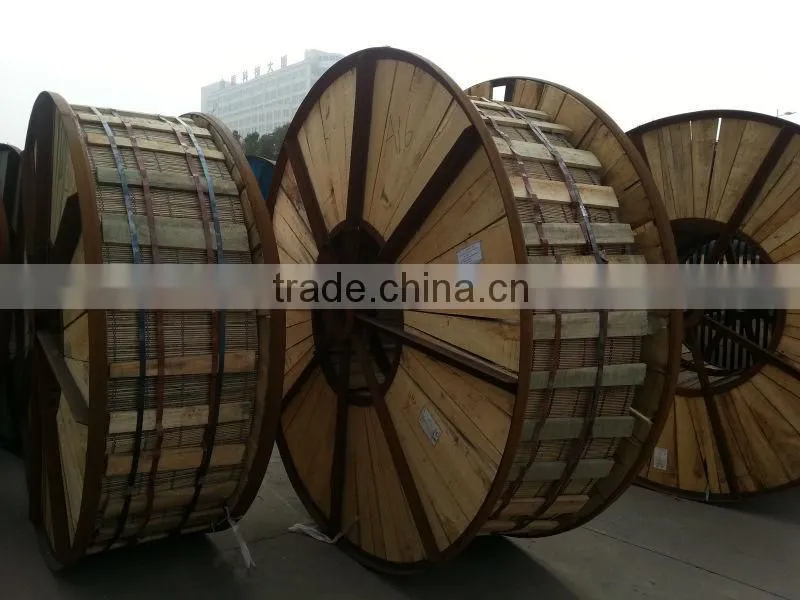

Packaging & Shipping

 Rubber Sheathed Flexible mining rubber cables

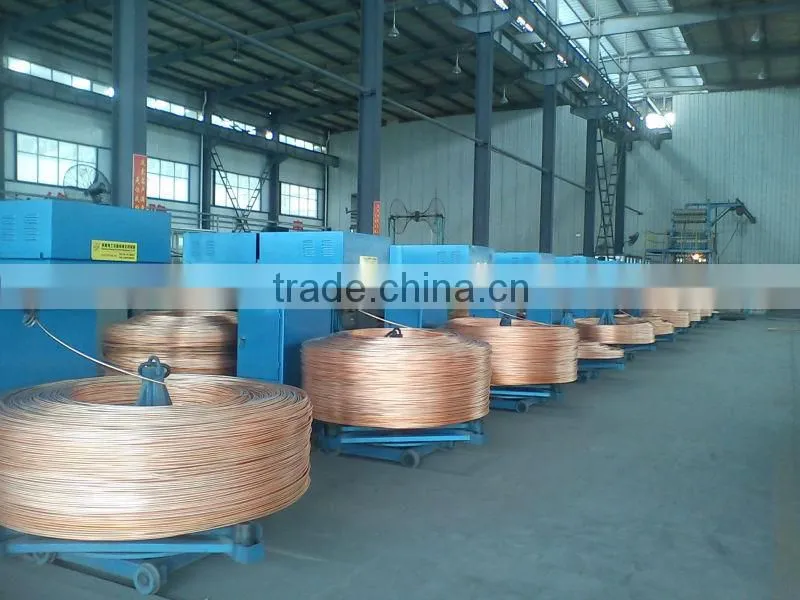

 Equipment Machine:



Rubber Sheathed Flexible mining rubber cables







Certificate:





Certified Picture Certification Name Certified By Certificate No. Product Name & Model No. Available Date --- Expired Date
Rubber Sheathed Flexible mining rubber cables ISO9001:2008 CQC, CNAS 00112Q21898R2M/4100 Production and Service of Insulated Wire & Cable with Voltage up to 35KV and Overhead Stranded Conductor 2012/02/29 --- 2015/02/27
Rubber Sheathed Flexible mining rubber cables CCC CQC 2003010105032766 PVC Insulated Flexible Cables and Wires, 60227 IEC 52(RVV) 300/300V 0.5-0.75(2-3 Cores); 60227 IEC 53(RVV) 300/500V0.75-2.5(2-5 Cores); RVS 300/300V 0.5-0.75 2014/04/15 --- 2015/03/10
Rubber Sheathed Flexible mining rubber cables CCC CQC 2003010105032765 PVC Insulated PVC Sheathed Cables, BVVB 300/500V 0.75-10(2-3 Cores); BLVVB 300/500V 2.5-10V(2-3 Cores) 2013/12/27 --- 2015/03/10
Rubber Sheathed Flexible mining rubber cables CCC CQC 2003010105032764 PVC Insulated Non-sheathedCables and Wires, 60227 IEC 01(BV) 450/750V 1.5-300; 60227 IEC 02(RV) 450/750V 1.5-4; 60227 IEC 05(BV) 300/500V 0.5-1; 60227 IEC 06(RV) 300/500V 0.5-1; BV 300/500V 0.75-1; BLV 450/750V 2.5-300; BVR 450/750V 2.5-70 2013/12/27 --- 2015/03/10
Rubber Sheathed Flexible mining rubber cables CCC CQC 2010010104445215 Tough Rubber Sheathed Flexible Cables and Wires for General Purposes, 60245 IEC 53(YZ) 300/500V 0.75-2.5(2-5 Cores); 60245 IEC 57(YZW) 300/500V 0.75-2.5(2-5 Cores); 60245 IEC 66(YCW) 450/750V 1.5-150(1 Core), 1-25(2 Cores), 1-95(3-4 Cores), 1-25(5 Cores); YZ 300/500V 4-6(2-5 Cores), 0.75-6(6 Cores), 1.5-6(3+1 Cores);YZW 300/500V 4-6(2-5 Cores);0.75-6(6 Cores), 1.5-6(3+1 Cores)YZW 300/500V 4-6(2-5 Cores), 0.75-6(6 Cores), 1.5-6(3+1 Cores); YC 450/750V 1.5-150(1 Cores), 1.5-95(2-4 Cores), 1.5-25(5 Cores), 2.5-95(3+1 Cores); YCW 450/750V 35-95(2 Cores), 2.5-95 (3+1 Cores) 2012/12/17 --- 2015/12/09
Rubber Sheathed Flexible mining rubber cables CCC CQC 2010010104445216 Rubber Insulated Arc Welding Cables, 60245 IEC 81(YH) 16-95; 60245 IEC 82(YHF) 16-95 2010/12/16 --- 2015/12/16
Rubber Sheathed Flexible mining rubber cables CE ECM 100603/HJC453 Building Wire, H07V-U 45/750V 2010/07/03 --- 2049/12/31
