Factory electric copper wire/PVC electrical wires 2.5mm

Specifications

1. H07V-U H07V-R NYA
2.Electric copper wire/electrical wires 2.5mm
3:Strong capacity,fast delivery



Factory electric copper wire/PVC electrical wires 2.5mm



1.Application

PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting

of power device, lighting,daily electrical appliance, instrument etc.with AC rated voltage up

to and including 450V/750V(U0/U).



2.Standard

The product implement the standards GB/T5023, equivalent to IEC60227.

And it can also be made complying with ASTM, DIN, BS standards etc.

In addition, we can design and manufacture the products as the requirements of customers.



3.Brief construction

1) Conductor: Copper, solid or stranded.

2) Insulation: PVC.

3) res: Single.

4) Size:1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 75, 95,120mm2.

5) Color:Optional.

We can design and manufacture wires according to special requirements of customers.



4.Service performance

1) Rated voltage: 450/750V.

2) Long-term working temperature: not be higher than 70°C.

3) When laying the cable, the ambient temperature should not lower than 0°C.

4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm;

                                                 Bending radius≥6D as cable overall diameter>25mm.

carton box Soft packing in coils,100m/roll,250m/roll,300m/roll,etc.

20 days more or less after confirm t/t  deposit .

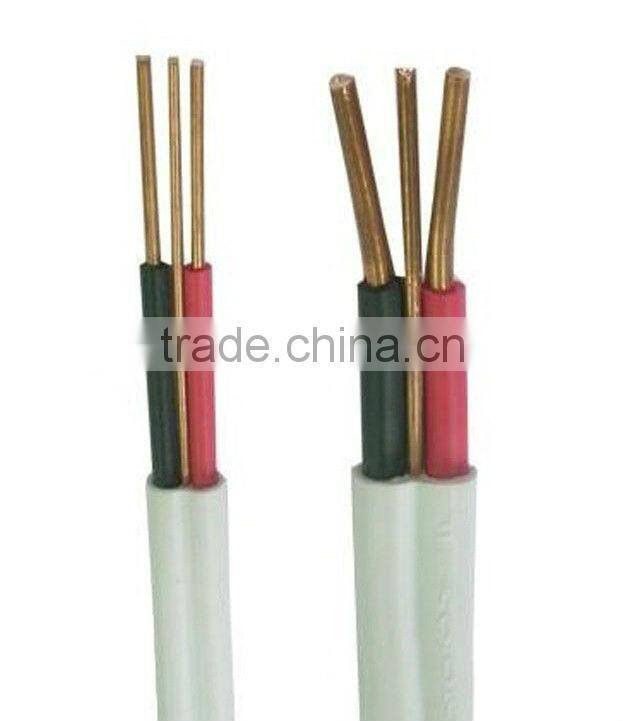

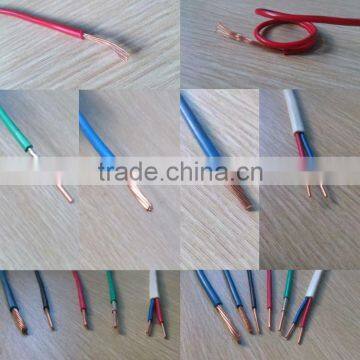

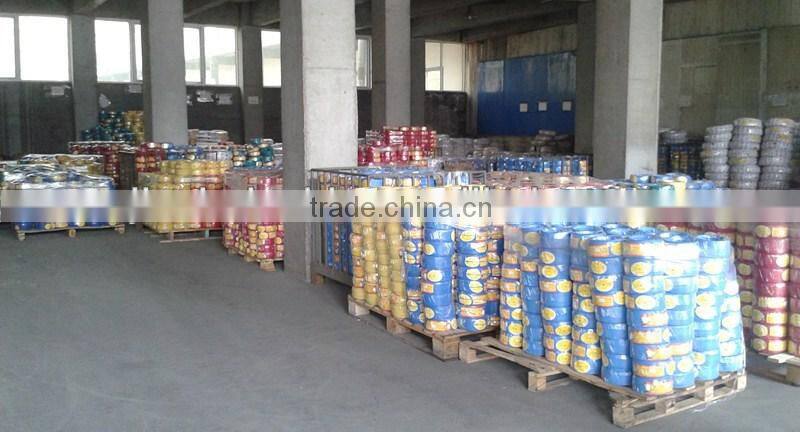

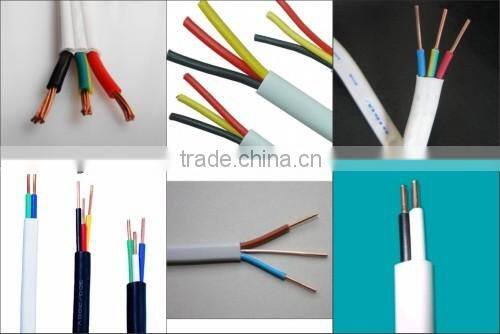

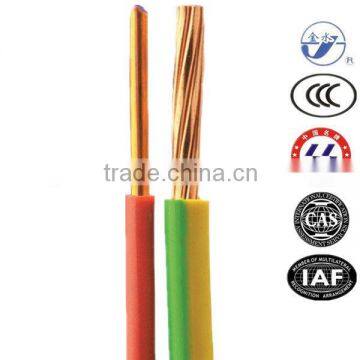

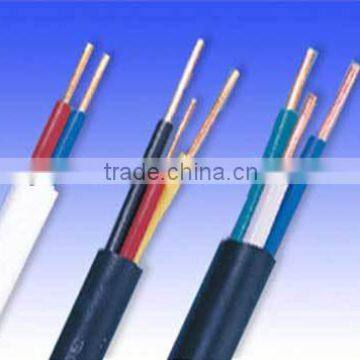

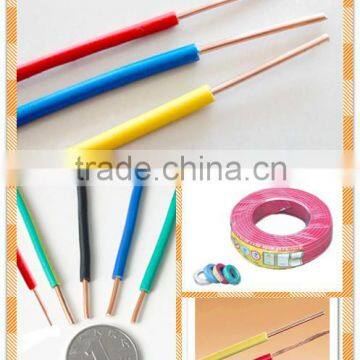

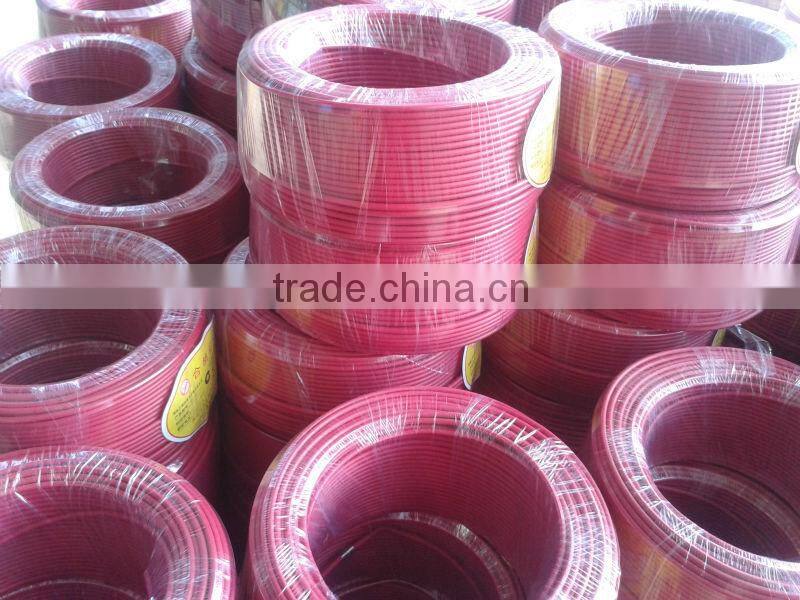

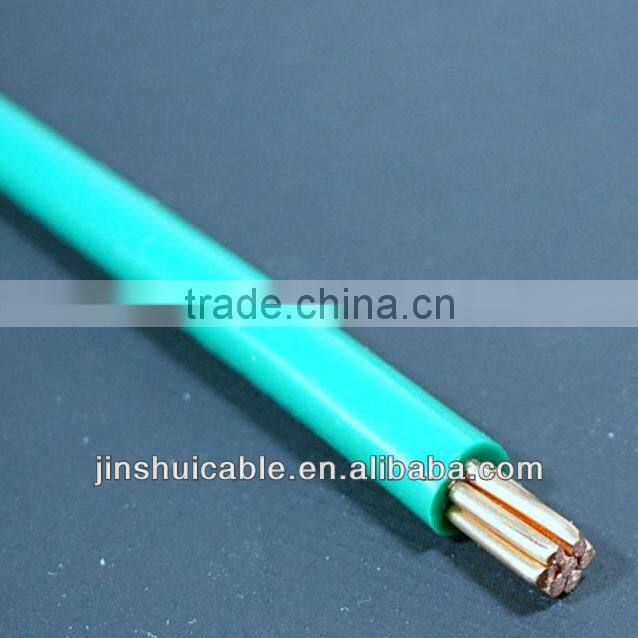

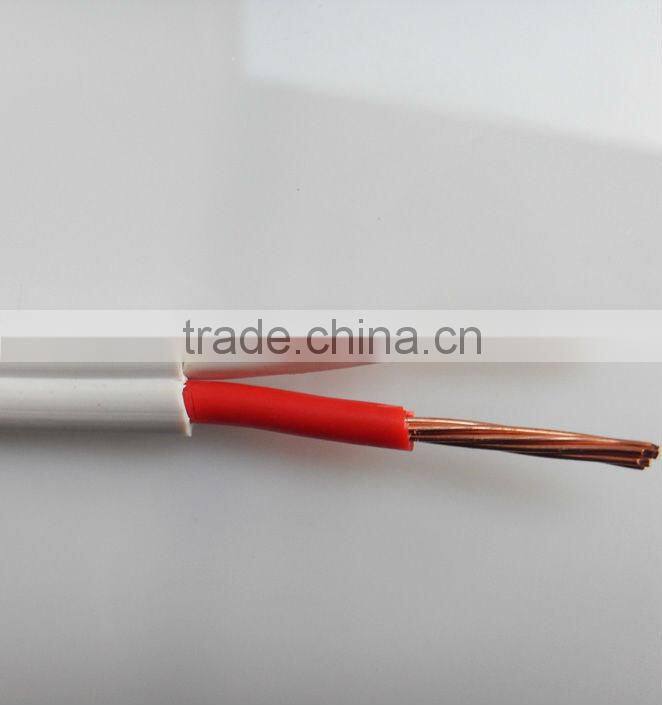

Pictures of electrical wires our factory supplies.
