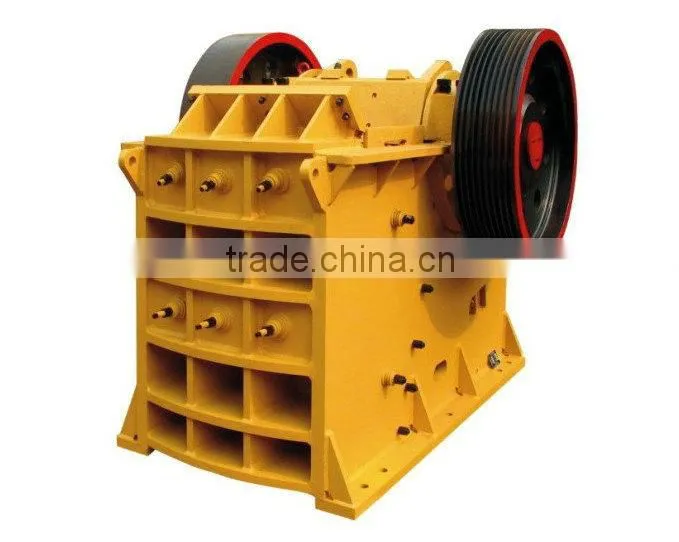

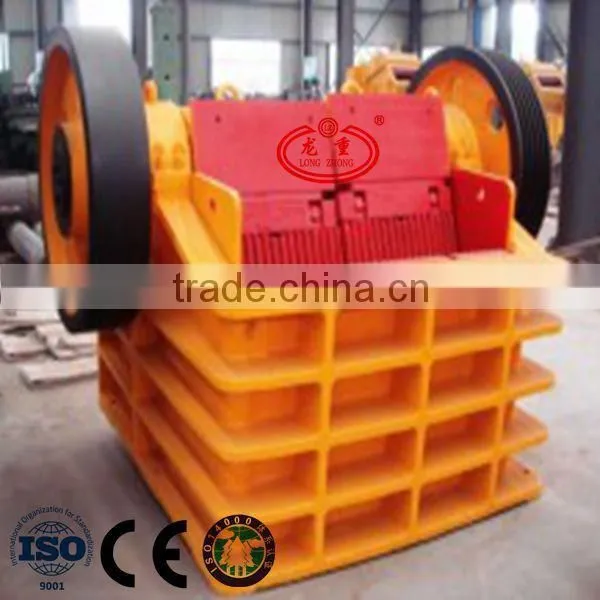

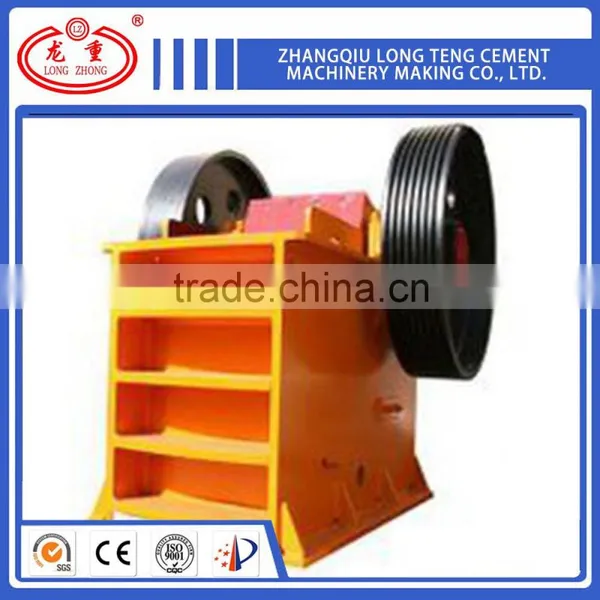

Help CenterPE 400X600 Jaw Crusher in Single-acting Jaw Series
Related Products
-
Long Teng PE Series Energy Saving Cone CrusherUS$ 9,000 - 150,000MOQ: 1 Set -
China New Popular PE Series Energy Saving Stone Crusher Machine in India PriceUS$ 9,000 - 150,000MOQ: 1 Set
-
2015 Factory Price PE Series Energy Saving Herbal Medicine CrusherUS$ 9,000 - 150,000MOQ: 1 Set
-
China Manufacture Wholesale PE Series Energy Saving Rock Crushing MachineUS$ 9,000 - 150,000MOQ: 1 Set
-
High Efficiency and Quality PE Series Energy Saving Stone Impact CrusherUS$ 9,000 - 150,000MOQ: 1 Set
Product Description
Jaw crusher is composed of dynamic and static jaw as crushing cavity, to simulate animals’ two Jaw crusher movement and complete material crushing operations. It is widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industry, etc to crush all kinds of ores and large materials in medium size. The maximum compressive strength of broken material is 320 mpa.
Features——efficiency jaw crusher for sale
1. The crushing cavity is deep and has no dead zone, improving the ability to feed and production;
2. The ratio of crushing is large, and product size is uniform;
3. The gasket type discharging mouth adjusting device, convenient and reliable, the adjusting range is big, increase the flexibility of equipment;
4. Safe and reliable lubrication system, parts easy to change, small maintenance workload;
5. Simple structure, reliable operation, low operating costs;
6. energy saving: stand-alone energy saving 15% ~ 30%, and the system saving more than double energy;
7. Discharging mouth has wide adjustment range, can meet the requirements of different users;
8. Low noise, little dust.
Working principle of Jaw Crusher :
A jaw crusher uses compressive force for breaking of particle. This mechanical pressure is achieved by the two jaws of the crusher of which one is fixed while the other reciprocates. A jaw or toggle crusher consists of a set of vertical jaws, one jaw is kept stationary and is called as fixed jaw while the other jaw, called as swing jaw, moves back and forth relative to it, by a cam or pitmanmechanism, acting like a class II lever or a nutcracker. The volume or cavity between the two jaws is called as the crushing chamber. The movement of the swing jaw can be quite small, since complete crushing is not performed in one stroke. The inertia required to crush the material is provided by a weighted flywheel that moves a shaft creating an eccentric motion that causes the closing of the gap.
Zhangqiu Longteng Cement Machinery Making Co.,Ltd
More than 40 years
Fifty thousand square
240 Employee
56 Senior Engineer
12 QC/QA
Certificate:
